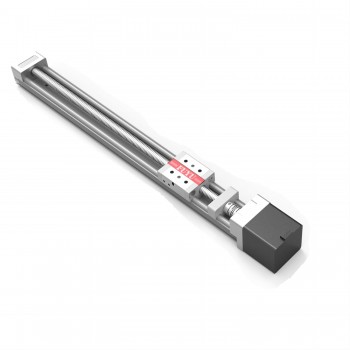

FSK30J Mini Linear Motion Guide Actuator Linear Rail Ladder Type Screw with Nema 14 Stepper Motor

Mini Linear Slide Rail Linear Ball Screw Actuator FSK30J 50-500mm with Nema 14 Stepper Motor

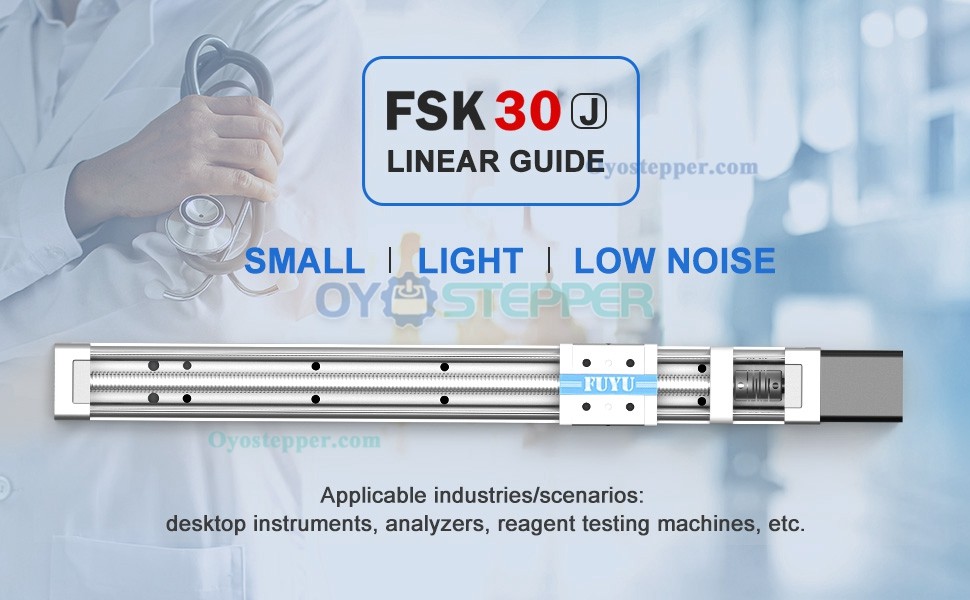

Linear Guide Features:

Material & Construction:

Primary material: Aluminum alloy.

Non-ferrous metal construction (no steel components).

Mechanical Specifications

Positioning accuracy specification: ±0.05 mm.

Rolling element design for linear motion.

Rated operating noise level: < 60 dB.

Includes M4 threaded mounting holes on sides and base.

Motor & Mechanical Compatibility

Compatible with NEMA 14 frame stepper motors.

Available stroke lengths: 50 mm to 500 mm.

Standard lead screw: Tr8x02.

Optional lead screws: Tr8x04, Tr8x12.

Application:

 It is commonly used in production machinery, inspection equipment, optical laboratory measurement, tuning displacement, mechanical equipment positioning and movement.

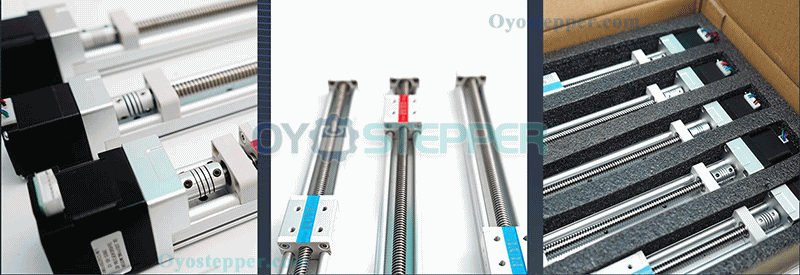

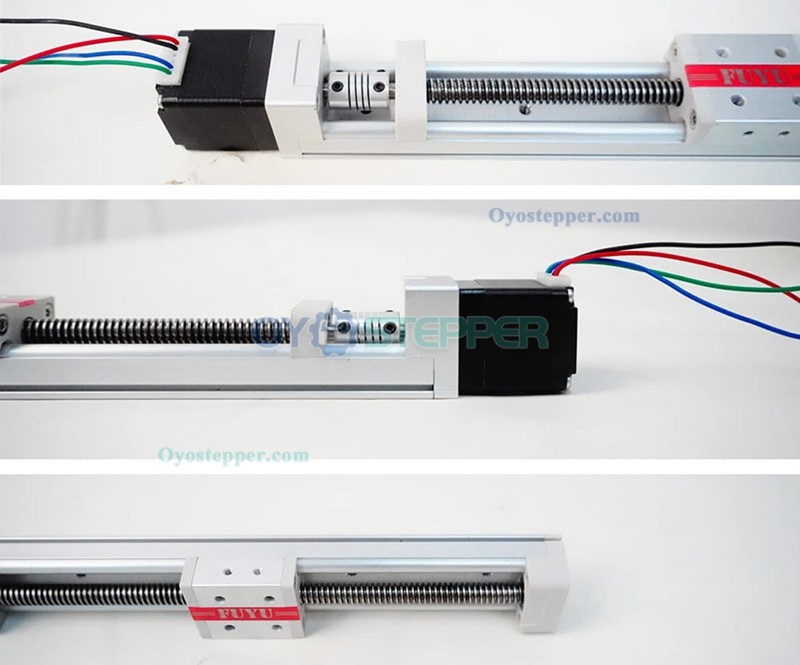

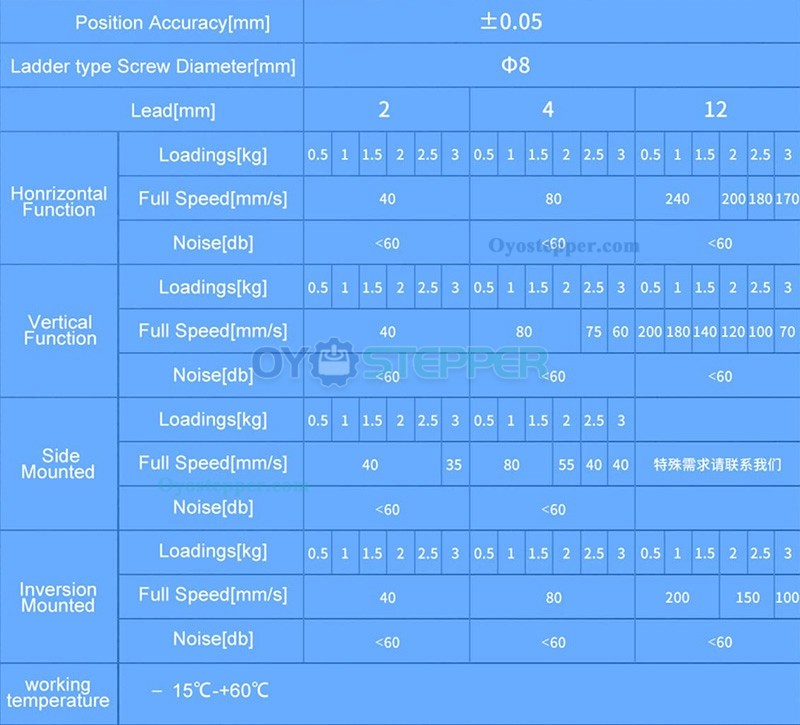

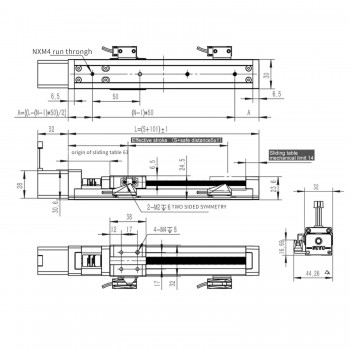

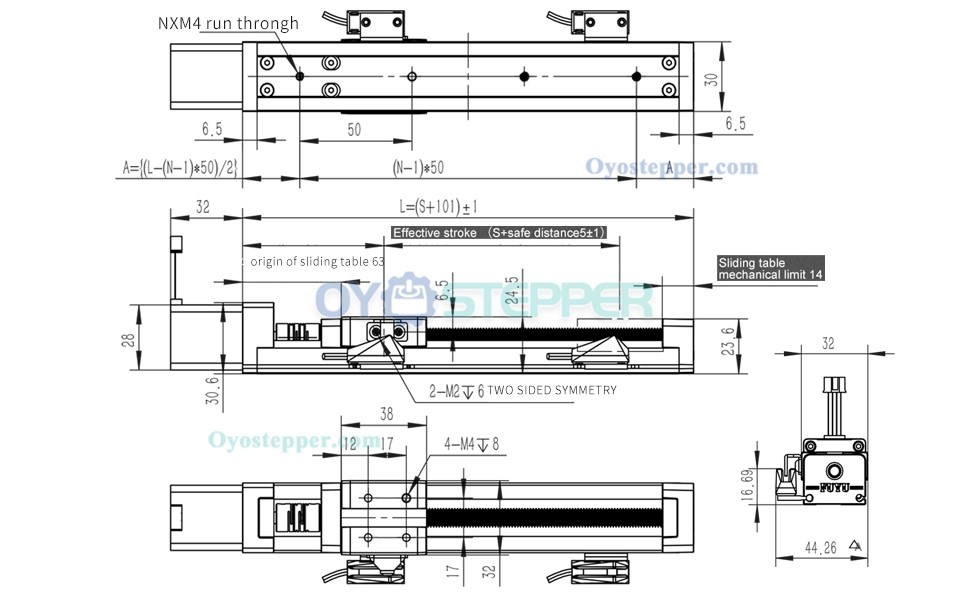

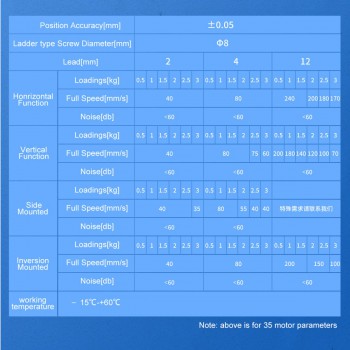

TACHNICAL PARAMETER:

Effective Stroke: 50-500mm

Total Length: Stroke+101mm

Screw Model: Tr8*2

Position Accuracy: ±0.05mm

Max Horizontal Loading: 6.6 pounds

Max Vertical Loading: 2.2 pounds

Max Horizontal Full Speed: 40 mm/s[max loading]

Max Vertical Full Speed: 15mm/s[max loading]

Noise: ＜60 dB

OPTIONAL ACCESSORIES:

Power supply, drive, limit switch, controller,connection board, drag chain
