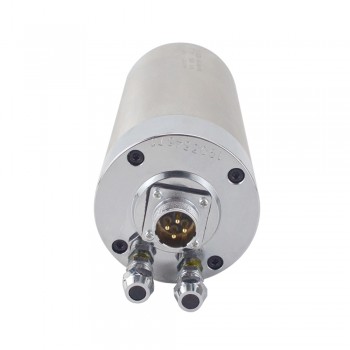

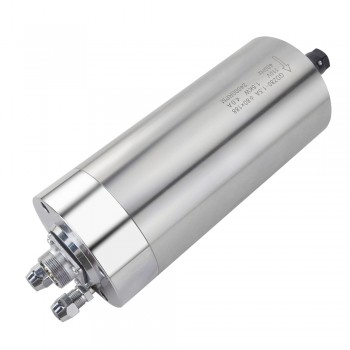

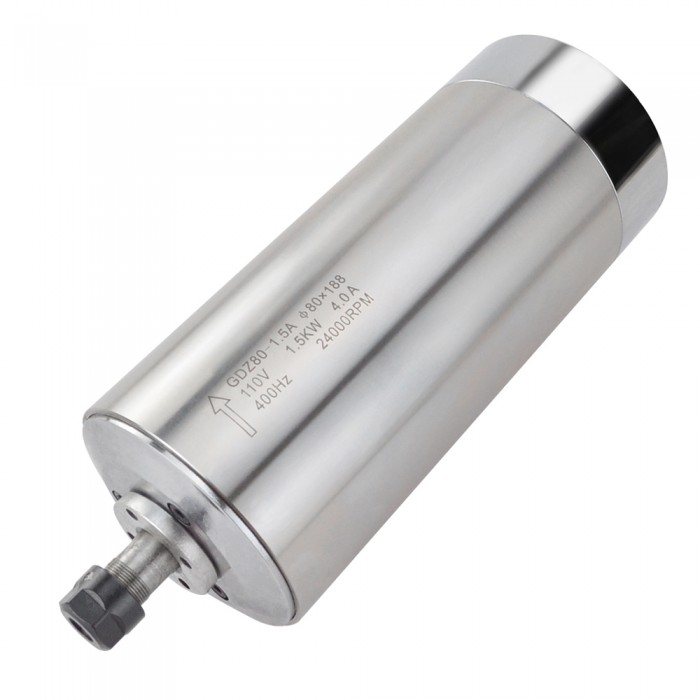

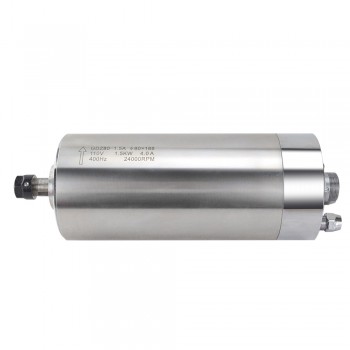

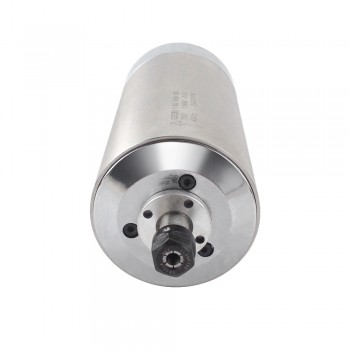

1.5KW Water Cooled Spindle Motor 110V 24000RPM 400Hz ER11 Collet CNC Spindle Motor
This 1.5 kW water-cooled spindle runs at 24,000 rpm on 110 VAC, features an 80 mm body, ER-11 collet, and <0.005 mm runout.
Specification
Manufacturer Part Number: GDZ80-1.5A
Material: Stainless steel
Size: Ø80x188(Middle body diameter: 80 mm, Length:188 mm)
Power: 1.5 KW
Voltage: 110 VAC
Current: 4 A
Frequency: 0 ~ 400 Hz
Speed: 0 ~ 24000 RPM
Cooling: Water cooled
Runout off: Less than 0.005 mm
Bearing Lubrication: Grease
Collet size: ER11 Collet(6 mm)
Bearings: 2x7002C(P4 DT), 1x7002C(P4)
Weight: 4.1 kg
| Spindle Motor Specification | |
|---|---|
| Frequency(Hz) | 400 |
| Speed(RPM) | 24000 |
| Bearing Lubrication | Grease |
| Bearings | 2x7002C(P4 DT), 1x7002C(P4) |
| Body Length(mm) | 188 |
| Collet Size | ER11 |
| Cooling | Water cooled |
| Current(A) | 4 |
| Diameter(mm) | 80 |
| Material | Stainless steel |
| Shape | Round |
| Voltage(VAC) | 110 |
| Weight(Kg) | 4.1 |
| Power(Kw) | 1.5 |
