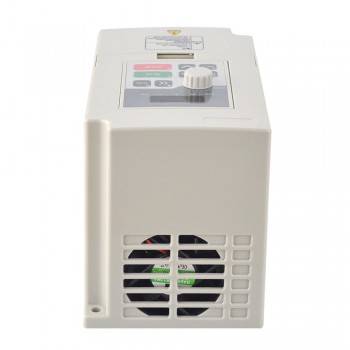

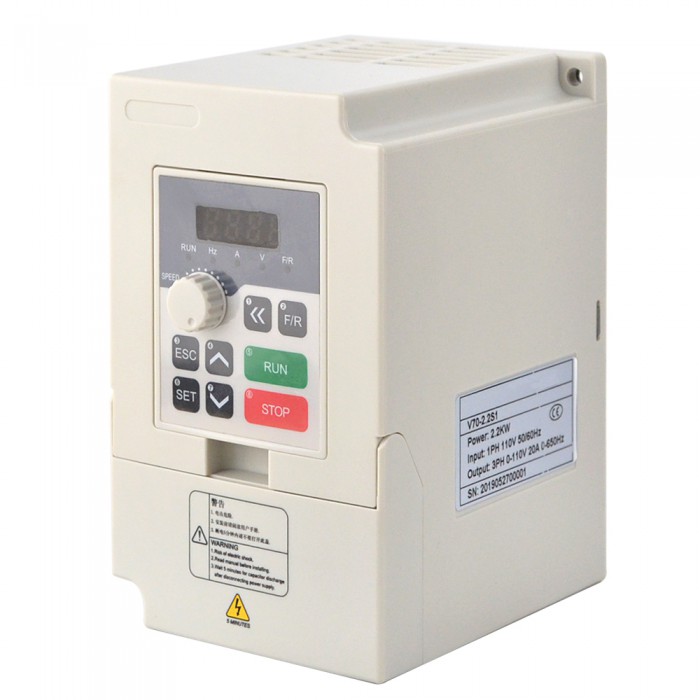

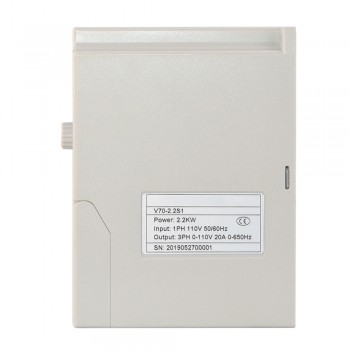

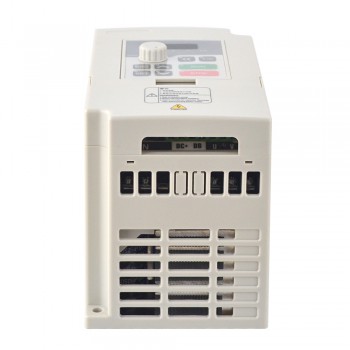

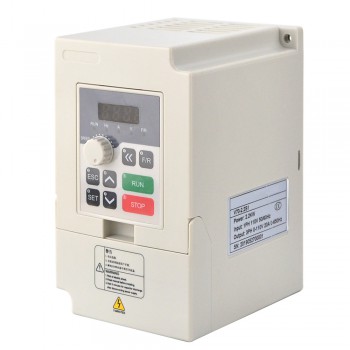

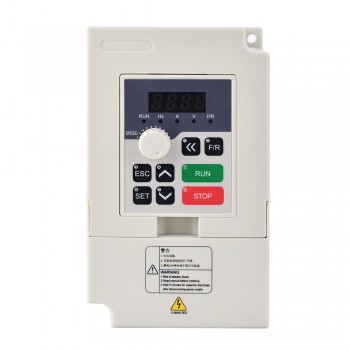

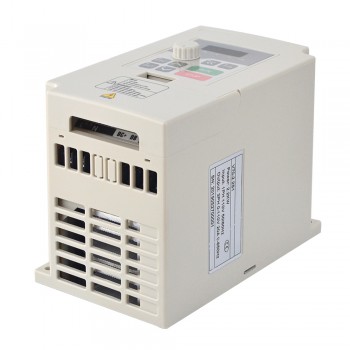

Variable Frequency Drive 2.2KW 3HP 20A 110V VFD Frequency Inverter for Spindle Motor Speed Control
Specifications:
Manufacturer Part Number: V70-2.2S1
Input Voltage: 110 V (Single-phase)
Input Frequency: 50/60 Hz
Power: 2.2 KW
Capacity of driver: 4.4 KVA
Output current: 20 A
Applicable motor: 2.2 KW
Control mode: V/F, Vector control
Communication control: RS-485
Operating temperature: -10 - 40 ℃
Humidity: 0 - 95%(without condensation)
Vibration: Less than 0.5G
Overload protection: Electric relay protection motor driver (constant torque: 150% per minute, fans: 120% per minute)
FUSE protection: When the fuse blows, the motor stops
Over-voltage protection: DC voltage > 200V
Low-voltage protection: DC voltage < 100V
Frequency Control:
Frequency Range: 0.1 - 1000 Hz
Accuracy: 0.1%(-10 - 40 ℃) for digital; 0.1%(25 ± 10 ℃) for analog
Setting Resolution: 0.1 Hz for digital; 1% of Max. operating frequency for analog
Output Resolution: 0.1 Hz
Keyboard Setting Mode: Set as ← ▲ ▼ directly
Analog Setting Mode: External voltage 0 - 5 V, 0 - 10 V, 4 - 20 mA, 0 - 20 mA
Other Functions: Three hopping frequency(lower-frequency limit, startup frequency and stop frequency) can be set respectively
Resources
Manual: V70-2.2S1.pdf
Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!
| VFD Specification | |
|---|---|
| Capacity of driver(KVA) | 4.4 |
| Horsepower(Hp) | 3 |
| Input Frequency(Hz) | 50/60 |
| Input Voltage (V) | 110 (Single-phase) |
| Output Current(A) | 20 |
| Power(Kw) | 2.2 |
