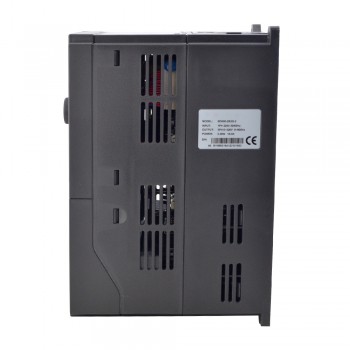

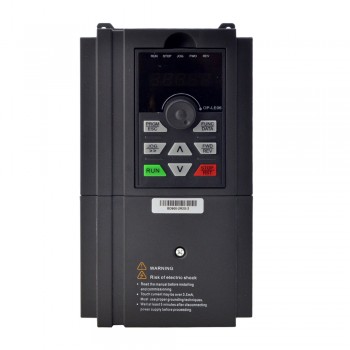

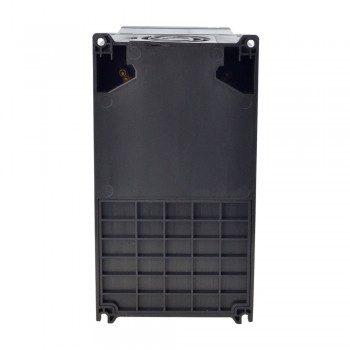

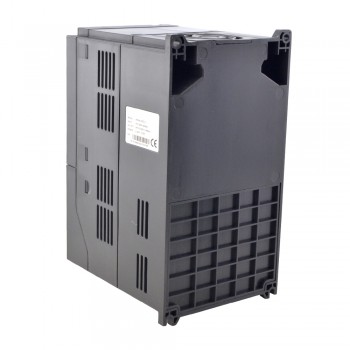

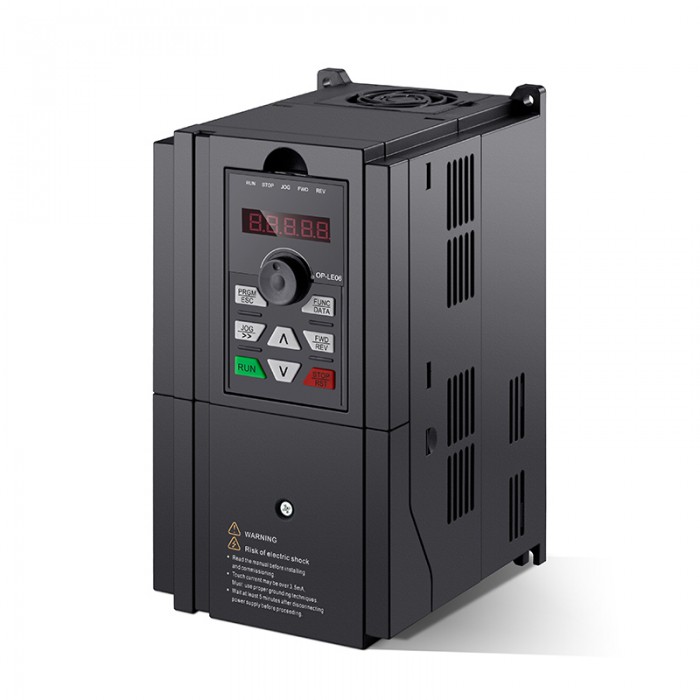

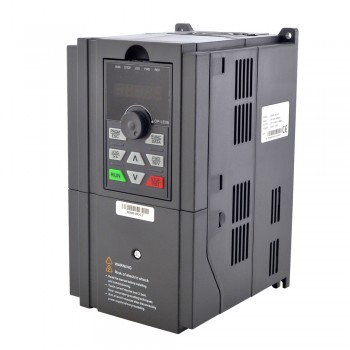

BD600 Series VFD 3HP 2.2KW 10A Single/Three Phase 220V Variable Frequency Drive
This VFD with power 3HP(2.2Kw) and single/three phase 220V input voltage. The BD600 series is a stable performance Vector Control Variable Frequency Drive(VFD), they are widely used in application of: Metal processing, CNC machine tools, Wire drawing machines, Boiler blower, Induced draft fan, Coal mine underground exhaust fan, Municipal engineering, Counter-cyclone, Centrifugal fan, Circulating water pump, Make-up water pump, Oil field injection water pump, Oil transfer pump, music fountain, Papermaking equipment, Chemical industry, Pharmaceutical industry, Textile industry, etc.
Key Specification
Input Voltage: 1-Phase/3-Phase 220VAC±15%
Input Frequency: 47~63Hz
Input Current: 1-Phase 23.0A, 3-Phase 11.5A
Input Power factor: ≥95%
Power: 3HP(2.2Kw)
Output Current: 10.0A
Resources
Full User Manual:BD600_Series_Inverter_User_Manual.pdf
Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!
Variable Frequency Drive Specification | |
---|---|
Input Voltage | 1PH 220V / 3PH 220VAC |
Input Frequency | 47 - 63Hz |
Input Current | 23A(1PH) / 11.5A(3PH) |
Power | 3HP / 2.2KW |
Output Current | 10A |
Control Modes | V/F control, non-PG vector control(SVC), PG vector control(FVC) |
Start Torque | G type: 0.5Hz/150%(SVC), 0Hz/180%(FVC); P type: 0.5Hz/100% |
Frequency Resolution | 0.01Hz(Digital setting); maximum frequency x 0.025%(Anolog setting) |
Vibration | Under 20Hz 9.8m/s(1G), Over 20Hz5.88m/s(0.6G) |
Store Environment | ≤1000M, indoor(no corrosive gas and liquid) |
Store Temperature | -20℃~60℃ |
Input Power factor | ≥95% |
V/F Control | Line, Multiple point, square V/F curve, V/F separation |
Operation Command Mode | Keypad control, Terminal control, Serial communication control |
Frequency Reference Source | Digital, analog, pulse frequency, serial communication, multi-step speed, simple PLC and PID The combination of multi-modes and the different modes can be switched |
Overload Capacity | G type: 150% rated current 60s, 180% rated current 3s; P type: 120% rated current 60s, 150% rated current 3s |
Speed Adjusting Range | 1:100(SVC), 1:1000(FVC) |
Speed Control Accuracy | ±0.5%(SVC), ±0.02%(FVC) |
Carrier Frequency | 0.5 to 16.0kHz; automatically adjust carrier frequency according to the load characteristics |
Torque Boost | Automatic torque boost; manual torque boost 0.1~30% |
Acceleration and Deceleration Mode | Line or S-curve, 4 types of acceleration/deceleration time with the range of 0.0~6500.0s |
DC Brake | Supports starting and stopping DC brake |
Jogging Control | 0.0Hz~50.00Hz(Jog frequency range); 0~6500.0s(Jog Acc/Dec time) |
Simple PLC & Multi-step Speed Operation | Built-in PLC or control terminal, 16 steps speed can be set |
Built-in PID | Built-in PID control to easily realize the closed loop control for the process parameters (such as a pressure, temperature, flow, etc.) |
Automatic Voltage Regulation(AVR) | Automatically maintain a constant output voltage when the voltage of electricity grid changes |
Common DC Bus | Multiple inverters can use a common DC bus(Common DC bus function) |
Traverse Control | Multiple triangular pulse frequency control(Traverse control function) |
Fixed Length Control | Setting length control |
Timing Control | 0~6500min(Setting time range) |
Input Terminals | a. Supports high speed pulse input, b. 1 Analog voltage input 0~10VDC, c. 2 Voltage input 0~10VDC or current input 0~20mA |
Output Terminals | a. 1 Open collector output, it can be extended to 1 high speed pulse output, b. 2 Relay outputs, c. 2 Analog output: voltage output 0~10VDC or current output 0~20mA |
Protection Class | IP20 |
Humidity & Temperature | 90%RH or less (no-condensation), -10℃~40℃.Inverter will be derated if ambient temperature exceeds 40℃ |
Cooling Mode | Forced air-cooling |
