NEMA 23 Integrated Easy Servo Motor Brushless DC Servo Motor 90w 3000rpm 0.3Nm(42.49oz.in) 20-50VDC

NO.:ISV57T-090
Review: Post a review
Halloween Sale 2021:
  • All Treats, No Tricks!
  • 5% OFF on Total Order Amount!
  • Enjoy Discount at Checkout!
  • Valid Till November 2nd, 2021
  • Note:No coupon code needed, please place order directly!
Latest price:$184.49
Buy It Now:$122.99
Quantity:- +

Bulk Price:
Qty.Range(unit) Price(unit) Discount
5 $117.00 5%
10 $112.00 9%
50 $109.00 11%
100 $105.00 15%
Add To Cart

NEMA 23 Integrated Easy Servo Motor 90w 3000rpm 0.3Nm(42.49oz.in) 20-50VDC Brushless DC Servo Motor

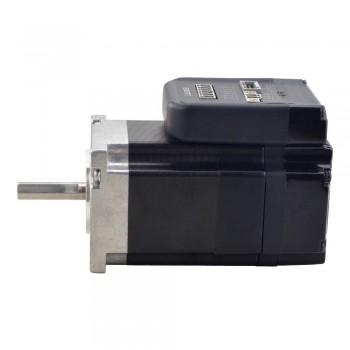

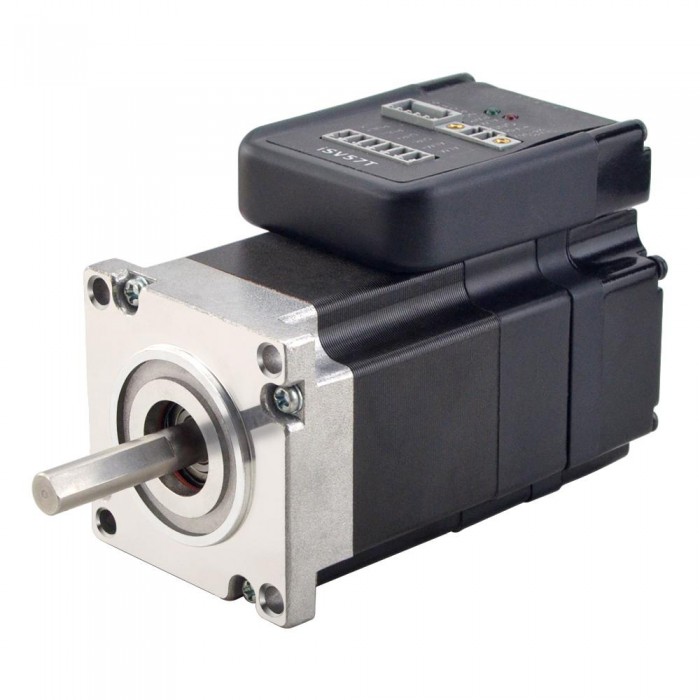

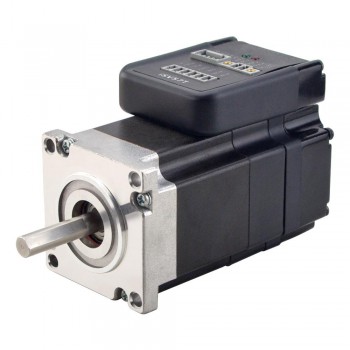

ISV57T-090 integrated servo motor is a 57mm frame size brushless motor integrated with a 16bit encoder and a servo drive. At very compact size and with all components integrated, the ISV57T-090 can save mounting space, eliminate encoder connection & motor wiring time, reduce interference, and cut/reduce cable and labor costs. Integrated compact size for saving mounting space & setup time, and reducing electrical interference.



Key Features:

Input voltage 20-50VDC, output peak current 0-6A

Step & direction command input for position control

Compatible mounting size with stepper motor

Smooth motor movement and excellent respond time

Isolated control inputs of Pulse, Direction

In-position and fault outputs to external motion controllers for complete system controls

Over voltage, over-current, and position-error protection



Driver Specifications:

Output Peak Current: 0~6A

Input Voltage: +20~50VDC (Typical 36VDC)

Logic Signal Current: 7~16mA (Typical 10mA)

Pulse Input Frequency: 0~300kHz

Pulse Voltage: 5v(Connect a 2K ohm resistor in series, if it is 24V)

Isolation Resistance: 100MΩ



Electrical Specifications:

Manufacturer Part Number: ISV57T-090

Rated Power(W): 90

Rated Torque(Nm): 0.3 (42.49oz.in)

Peak Torque(Nm): 0.9 (127.47oz.in)

Rated Speed(rpm): 3000

Peak Speed(rpm): 4000

Rated Voltage(Vdc): 36

Weight(kg): 0.95



Physical Specifications:

Frame Size: 57 x 57 mm

Body Length: 108 mm

Shaft Diameter: Φ8 mm

D-cut Shaft Length: 15 mm

Shaft Length: 21 mm



Operating Environment and other Specifications(Tj = 25℃/77℉):

Cooling: Natural Cooling or Forced cooling

Environment: Avoid dust, oil fog and corrosive gases

Ambient Temperature: 0℃ - 40℃

Humidity: 40%RH-90%RH

Operating Temperature(Heat Sink): 70℃ Max

Vibration: 10-50Hz / 0.15mm

Storage Temperature: -20℃ - 65℃



Resources

Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!

Prev: VORON Afterburner 3D Printer Stepper Motor Kit
Next: NEMA 23 Integrated Easy Servo Motor 180w 3000rpm 0.6Nm(84.98oz.in) Brushless DC Servo Motor 20-50VDC
Integrate Stepper Servo Motor Specification
Max Pulse Frenquency(KHz) 300
Input Voltage (V) 20 - 50VDC(36V Typical)
Output Current 0~6
Electrical Specification
Holding Torque (Ncm) 30Ncm
Motor Specification
Body Length(mm) 108
Shaft Diameter(mm) 8mm
Shaft Length(mm) 21
Stepper Driver Specification
Frame Size(mm) 57 x 57mm
