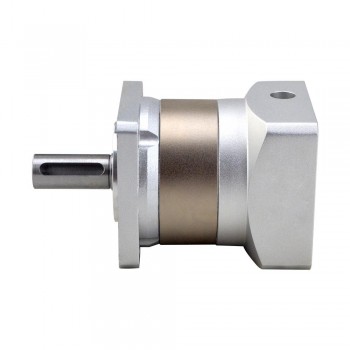

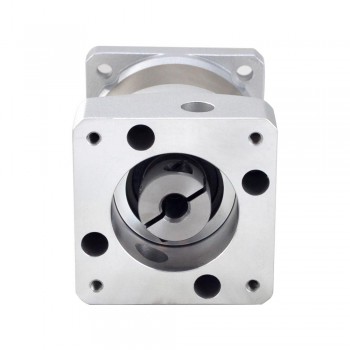

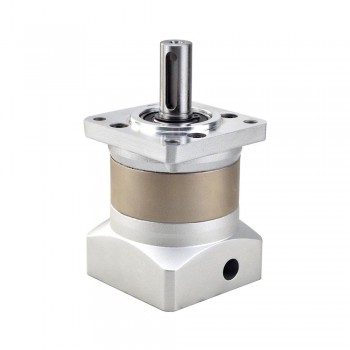

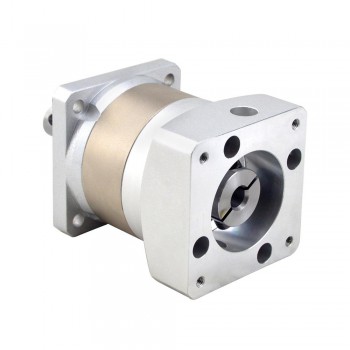

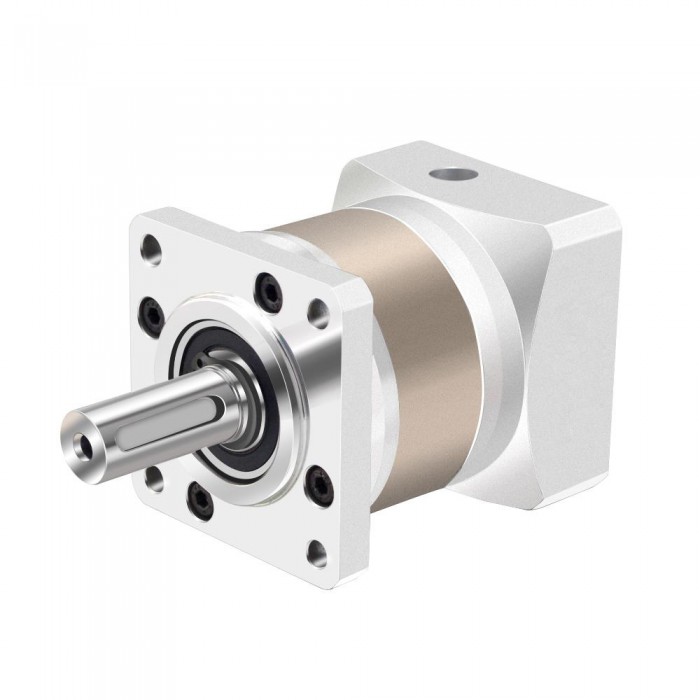

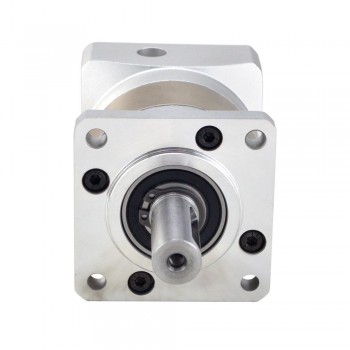

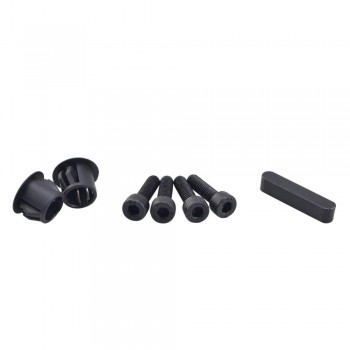

TQEG Series Planetary Gearbox Gear Ratio 10:1 Backlash 15 arc-min for 8mm Shaft Nema 23 Stepper Motor

TQEG Series Planetary Gearbox Gear Ratio 10:1 Backlash 15 arc-min for 8mm Shaft Nema 23 Stepper Motor

TQEG series planetary gearbox. 10:1 ratio, 15 arc-min backlash. Built-in coupling fits NEMA 23 motors with 8mm shaft.

Gearbox Specifications

Manufacturer Part Number: TQEG23-G10-D8

Gearbox Type: Planetary

Gear Ratio: 10: 1

Efficiency: 94%

Backlash at No-load: <=15 arcmin

Max.Permissible Torque: 10 Nm(88.51 lb-in)

Moment Permissible Torque: 20 Nm(177.01 lb-in)

Noise: <=60dB

Waterproof Rating: IP54

Physical Specifications

Frame Size: 60 x 60 mm

Gearbox Length: 73.5 mm

Output Shaft Type: Key way

Output Shaft Diameter: Φ14 mm

Output Shaft Length: 35 mm

Input Shaft Diameter: Φ8 mm

Input Shaft Length: 21~24 mm
