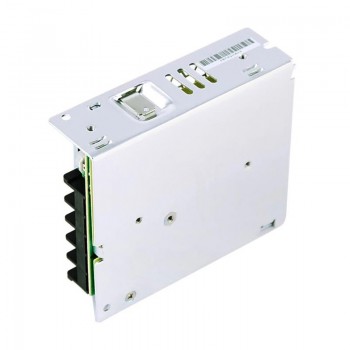

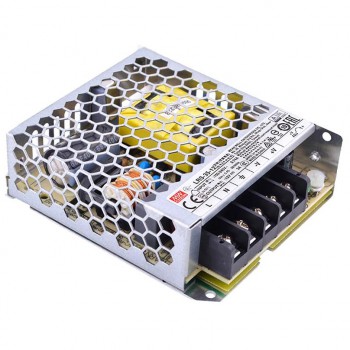

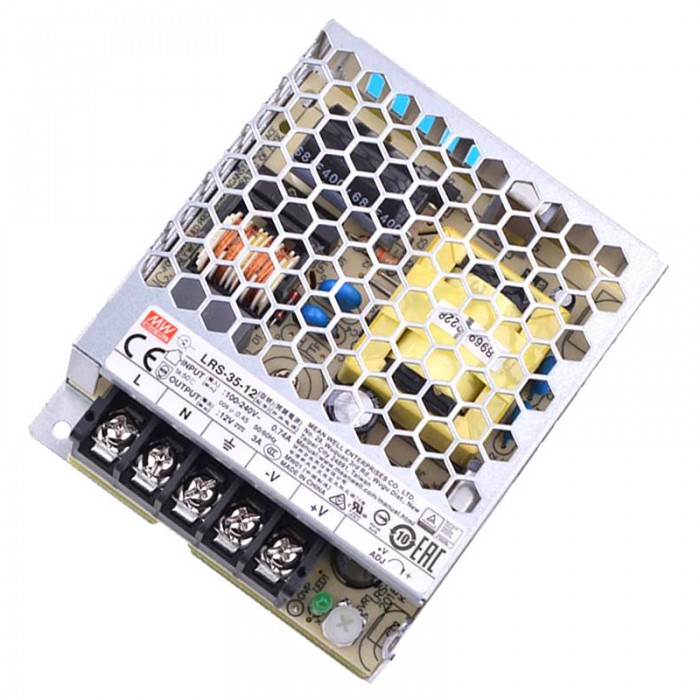

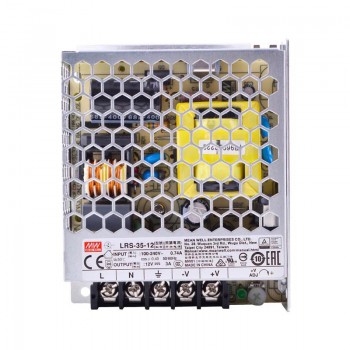

Mean Well LRS-35-12 CNC Power Supply 35W 12VDC 3A 115/230VAC Enclosed Switching Power Supply
- Manuals and Documentation: Full Datasheet:
LRS-35-12 MEAN WELL 35W 12VDC 3A 115/230VAC Enclosed Switching Power Supply
The MEAN WELL LRS-35 series is a 35W enclosed power supply with a low-profile 30mm design, accepts 85–264VAC full-range input, and provides output voltages from 5V to 48V.
Features
Brand MEANWELL
12V DC 3A output
AC input voltage range: 85 ~ 264VAC
Rated power: 36W
Universal AC input / Full range
Withstand 300VAC surge input for 5 second
No load power consumption < 0.2W
Miniature size and 1U low profile
High operating temperature up to 70℃
Protections: Short circuit / Overload / Over voltage
Cooling by free air convection
Compliance to IEC / BS EN / EN 60335-1(PD3) and IEC / BS EN / EN61558-1, -2-16 for household appliances
Operating altitude up to 5000 meters (Note.8)
Withstand 5G vibration test
LED indicator for power on
Over voltage category Ⅲ
3 years warranty
Applications
Industrial automation machinery
Industrial control system
Mechanical and electrical equipment
Electronic instruments, equipments or apparatus
Household appliances
| Power Supply Specification | |
|---|---|
| Max. Output Current(A) | 3 |
| Power(W) | 36 |
| Brand | MEANWELL |
| Output Voltage(VDC) | 12 |
| Input Voltage(VAC/VDC) | 85 - 264 / 120 - 373 |
| PFC Function | No |
| Dim.(LxWxH)(mm/in.) | 99 x 82 x 30 / 3.90 x 3.23 x 1.18 |
| Input Frequency(Hz) | 47 - 63 |
| Efficiency(%) | 86% |
| Physical Specification | |
| Product Type | POWER SUPPLY |
