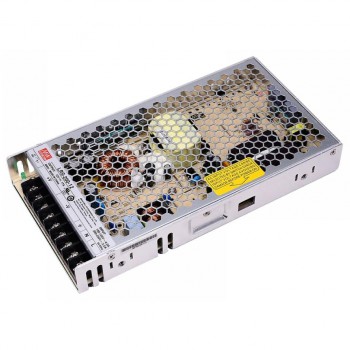

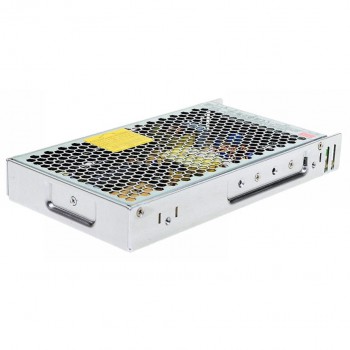

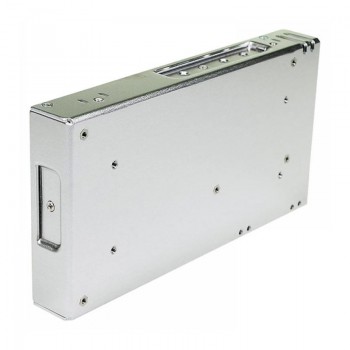

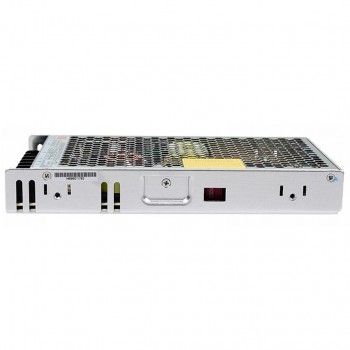

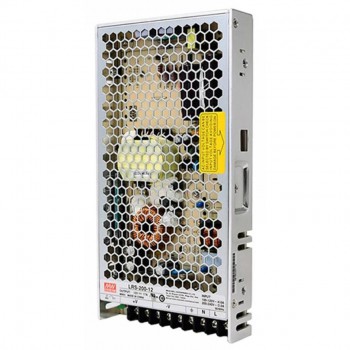

Mean Well LRS-200-12 Switching Power Supply 200W 12VDC 17A 115/230VAC Enclosed Switching Power Supply
- Manuals and Documentation: Full Datasheet:
LRS-200-12 MEAN WELL 200W 12VDC 17A 115/230VAC Enclosed Switching Power Supply
MEANWELL LRS-200 series is a 200W single-output enclosed type power supply with 30mm of low profile design. Adopting the input of 115VAC or 230VAC (select by switch), the entire series provides an output voltage line of 3.3V, 4.2V, 5V, 12V, 15V, 24V, 36V and 48V.
Features
Brand MEANWELL
12V DC 17A output
AC input voltage range: 90 ~ 132VAC
Rated power: 204W
AC input range selectable by switch
Withstand 300VAC surge input for 5 second
Protections: Short circuit / Overload / Over voltage / Over temperature
Cooling by free air convection
1U low profile
Withstand 5G vibration test
LED indicator for power on
No load power consumption < 0.75W
High operating temperature up to 70℃
Operating altitude up to 5000 meters (Note.8)
3 years warranty
Applications
Industrial automation machinery
Industrial control system
Mechanical and electrical equipment
Electronic instruments, equipments or apparatus
| Power Supply Specification | |
|---|---|
| Max. Output Current(A) | 17 |
| Power(W) | 204 |
| Brand | MEANWELL |
| Output Voltage(VDC) | 12 |
| Input Voltage(VAC/VDC) | 90 - 132 / 180 - 264 |
| PFC Function | No |
| Dim.(LxWxH)(mm/in.) | 215 x 115 x 30 / 8.46 x 4.53 x 1.18 |
| Input Frequency(Hz) | 47 - 63 |
| Efficiency(%) | 87.5% |
| Physical Specification | |
| Product Type | POWER SUPPLY |
