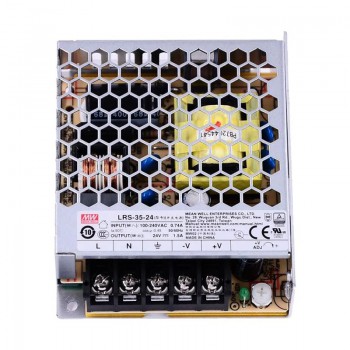

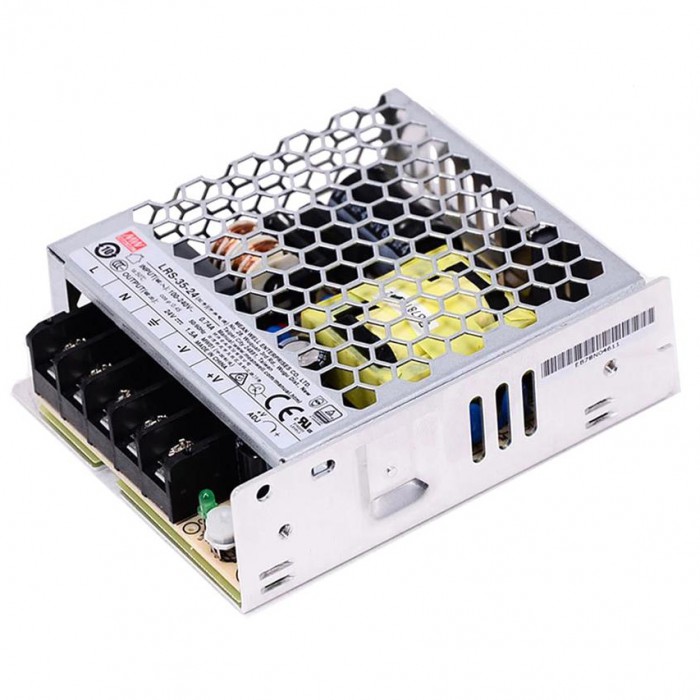

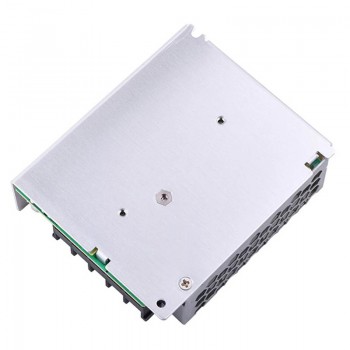

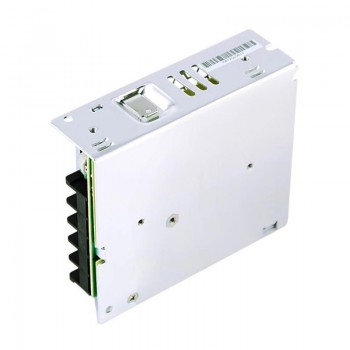

Mean Well LRS-35-24 CNC Power Supply 35W 24VDC 1.5A 115/230VAC Enclosed Switching Power Supply
LRS-35-24 MEAN WELL 35W 24VDC 1.5A 115/230VAC Enclosed Switching Power Supply
MEANWELL LRS-35 series is a 35W single-output enclosed type power supply with 30mm of low profile design. Adopting the full range 85~264VAC input, the entire series provides an output voltage line of 5V, 12V, 15V, 24V, 36V and 48V.
LRS-35 has the complete protection functions and 5G anti- vibration capability; it is complied with the international safety regulations such as TUV BS EN / EN62368-1, BS EN / EN60335-1, BS EN / EN61558-1/-2-16, UL62368-1 and GB4943.
Features
Brand MEANWELL
24V DC 1.5A output
AC input voltage range: 85 ~ 264VAC
Rated power: 36W
Universal AC input / Full range
Withstand 300VAC surge input for 5 second
No load power consumption < 0.2W
Miniature size and 1U low profile
High operating temperature up to 70℃
Protections: Short circuit / Overload / Over voltage
Cooling by free air convection
Compliance to IEC / BS EN / EN 60335-1(PD3) and IEC / BS EN / EN61558-1, -2-16 for household appliances
Operating altitude up to 5000 meters (Note.8)
Withstand 5G vibration test
LED indicator for power on
Over voltage category Ⅲ
100% full load burn-in test
3 years warranty
Applications
Industrial automation machinery
Industrial control system
Mechanical and electrical equipment
Electronic instruments, equipments or apparatus
Household appliances
Resources
Full Datasheet: LRS-35-24.pdf
Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!
| Power Supply Specification | |
|---|---|
| Max. Output Current(A) | 1.5 |
| Power(W) | 36 |
| Brand | MEANWELL |
| Output Voltage(VDC) | 24 |
| Input Voltage(VAC/VDC) | 85 - 264 / 120 - 373 |
| PFC Function | No |
| Dim.(LxWxH)(mm/in.) | 99 x 82 x 30 / 3.90 x 3.23 x 1.18 |
| Input Frequency(Hz) | 47 - 63 |
| Efficiency(%) | 88% |
| Physical Specification | |
| Product Type | POWER SUPPLY |
