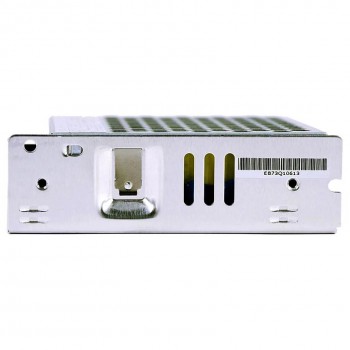

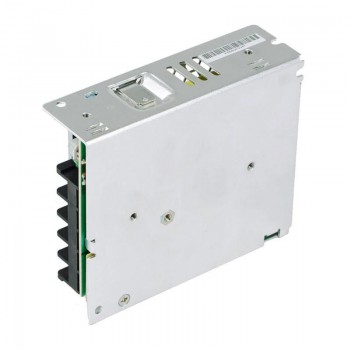

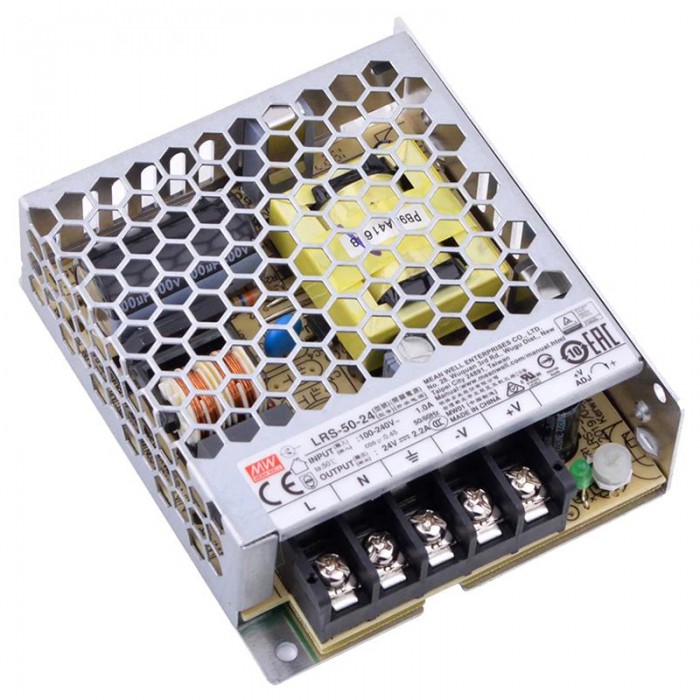

LRS-50-24 MEAN WELL 50W 24VDC 2.2A 115/230VAC Enclosed Switching Power Supply


MEANWELL LRS-50 series is a 50W single-output enclosed type power supply with 30mm of low profile design. Adopting the full range 85~264VAC input, the entire series provides an output voltage line of 3.3V, 5V, 12V, 15V, 24V, 36V and 48V.

LRS-50 has the complete protection functions and 5G anti- vibration capability; it is complied with the international safety regulations such as TUV BS EN / EN62368-1,BS EN / EN60335-1,BS EN / EN61558-1/-2-16, UL62368-1 and GB4943.





24V DC 2.2A output

AC input voltage range: 85 ~ 264VAC

Rated power: 52.8W

Universal AC input / Full range

Withstand 300VAC surge input for 5 second

No load power consumption < 0.2W

Miniature size and 1U low profile

High operating temperature up to 70℃

Protections: Short circuit / Overload / Over voltage

Cooling by free air convection

Compliance to IEC/BS EN/EN 60335-1(PD3) and IEC/BS EN/EN61558-1, -2-16 for household appliances

Operating altitude up to 5000 meters (Note.8)

Withstand 5G vibration test

LED indicator for power on

Over voltage category Ⅲ

100% full load burn-in test

3 years warranty



Industrial automation machinery

Industrial control system

Mechanical and electrical equipment

Electronic instruments, equipments or apparatus

Household appliances



Full Datasheet: LRS-50-24.pdf

Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!

Prev: Mean Well LRS-50-12 CNC Power Supply 50W 12VDC 4.2A 115/230VAC Enclosed Switching Power Supply
Next: Mean Well LRS-50-5 CNC Power Supply 50W 5VDC 10A 115/230VAC Enclosed Switching Power Supply
Power Supply Specification
Max. Output Current(A) 2.2
Power(W) 52.8
Output Voltage(VDC) 24
Input Voltage(VAC/VDC) 85 - 264 / 120 - 373
PFC Function No
Dim.(LxWxH)(mm/in.) 99 x 82 x 30 / 3.90 x 3.23 x 1.18
Input Frequency(Hz) 47 - 63
Efficiency(%) 88%
