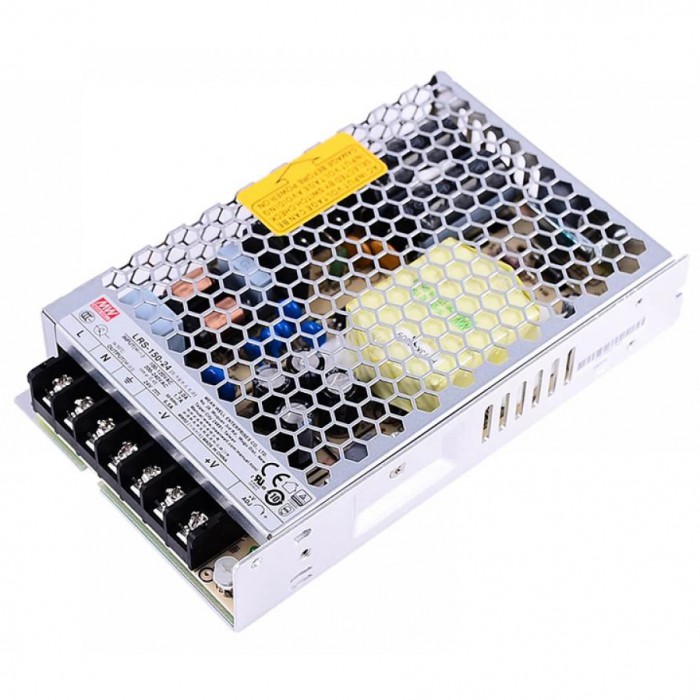

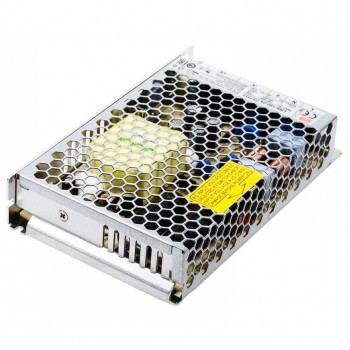

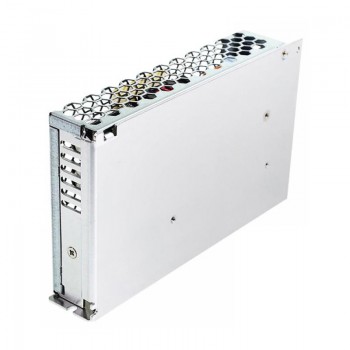

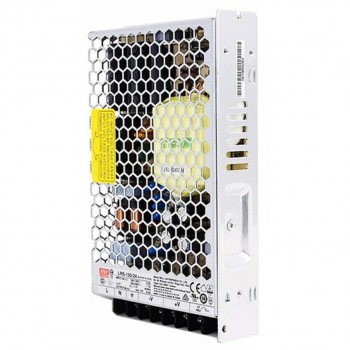

Mean Well LRS-150-24 CNC Power Supply 150W 24VDC 6.5A 115/230VAC Enclosed Switching Power Supply

Mean Well LRS-150-24 CNC Power Supply 150W 24VDC 6.5A 115/230VAC Enclosed Switching Power Supply
NO.:LRS-150-24
Post a review
Special Offer in September 2023:
  • $10 Off Over $150
  • $20 Off Over $300
  • $35 Off Over $500
  • $55 Off Over $800
  • $70 Off Over $1000
  • $100 Off Over $1500
  • Enjoy Discount at Checkout!
  • Valid Till September 28th, 2023
  • Note:No coupon code needed, please place order directly!
Our Price:$17.24
Quantity:- +

Bulk Price:
Qty.Range(unit) Price(unit) Discount
10 $16.38 5%
30 $16.03 7%
50 $15.52 10%
100 $15.00 13%
Add To Cart

LRS-150-24 MEAN WELL 150W 24VDC 6.5A 115/230VAC Enclosed Switching Power Supply



MEANWELL LRS-150 series is a 150W single-output enclosed type power supply with 30mm of low profile design.

Adopting the input of 115VAC or 230VAC(selectable by switch), the entire series provides an output voltage line of 12V, 15V, 24V, 36V and 48V. In addition to the high efficiency up to 90%, the design of metallic mesh case enhances the heat dissipation of LRS-150 that the whole series operates from -30℃ through 70℃ under air convection without a fan. Delivering an extremely low no load power consumption (less than 0.5W), it allows the end system to easily meet the worldwide energy requirement.

LRS-150 has the complete protection functions and 5G anti-vibration capability; it is complied with the international safety regulations such as TUV BS EN / EN62368-1, BS EN / EN60335-1,BS EN / EN61558-1/-2-16, UL62368-1 and GB4943. LRS-150 series serves as a high price-to-performance power supply solution for various industrial applications.



Features

Brand MEANWELL

24V DC 6.5A output

AC input voltage range: 85 ~ 132VAC

Rated power: 154.8W

AC input range selectable by switch

Withstand 300VAC surge input for 5 second

No load power consumption < 0.5W

Miniature size and 1U low profile

High operating temperature up to 70℃

Protections: Short circuit / Overload / Over voltage / Over temperature

Cooling by free air convection

Compliance to IEC / BS EN / EN 60335-1(PD3) and IEC / BS EN / EN61558-1, 2-16 for household appliances

Operating altitude up to 5000 meters

Withstand 5G vibration test

High efficiency, long life and high reliability

LED indicator for power on

Over voltage category Ⅲ

100% full load burn-in test

3 years warranty



Applications

Industrial automation machinery

Industrial control system

Mechanical and electrical equipment

Electronic instruments, equipments or apparatus

Household appliances



Resources

Full Datasheet: LRS-150-24.pdf

Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!

Prev: Meanwell LRS-150-12 CNC Power Supply 150W 12VDC 12.5A 115/230VAC Enclosed Switching Power Supply
Next: Meanwell LRS-150-48 CNC Power Supply 150W 48VDC 3.3A 115/230VAC Enclosed Switching Power Supply
Power Supply Specification
Max. Output Current(A) 6.5
Power(W) 156
Brand MEANWELL
Output Voltage(VDC) 24
Input Voltage(VAC/VDC) 85 - 132 / 170 - 264
PFC Function No
Dim.(LxWxH)(mm/in.) 159 x 97 x 30 / 6.26 x 3.82 x 1.18
Input Frequency(Hz) 47 - 63
Efficiency(%) 89%
Physical Specification
Product Type POWER SUPPLY
