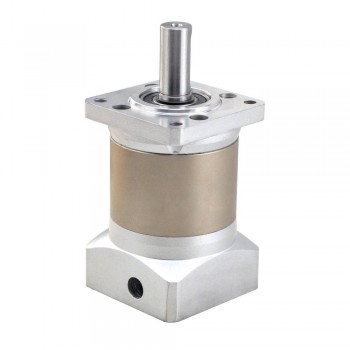

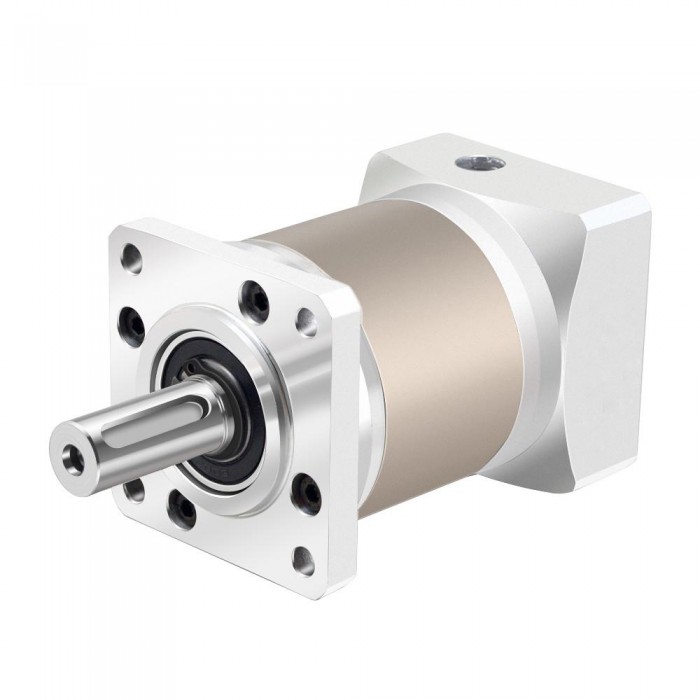

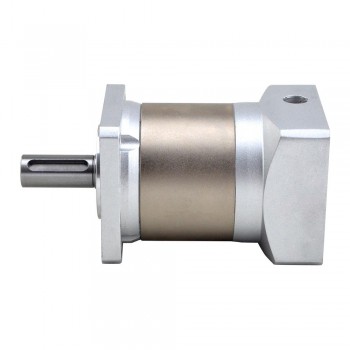

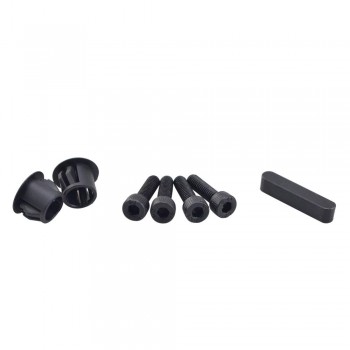

TQEG Series Planetary Gearbox Gear Ratio 20:1 Backlash 20 arc-min for 6.35mm Shaft Nema 23 Stepper Motor

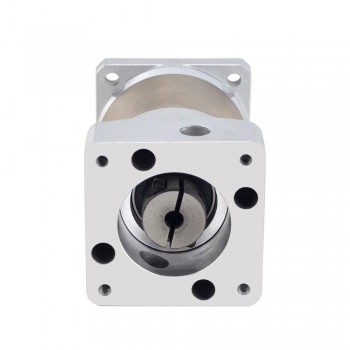

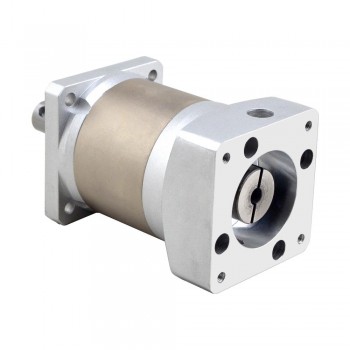

This planetary gearbox is belong to TQEG series gearbox, it with gear ratio 20:1 and a maximum 20 arc-min backlash. This inline planetary gearbox built-in an input shaft coupling which can match any standard 6.35mm(1/4 inch) diameter shaft of Nema 23 stepper motor, brushless dc motor and servo motor.
Gearbox Specifications
Manufacturer Part Number: TQEG23-G20-D6
Gearbox Type: Planetary
Gear Ratio: 20: 1
Efficiency: 94%
Backlash at No-load: <=20 arcmin
Max.Permissible Torque: 30 Nm(265.52 lb-in)
Moment Permissible Torque: 60 Nm(531.04 lb-in)
Noise: <=60dB
Waterproof Rating: IP54
Lifetime: 20000 hours
Physical Specifications
Frame Size: 60 x 60 mm
Gearbox Length: 89.5 mm

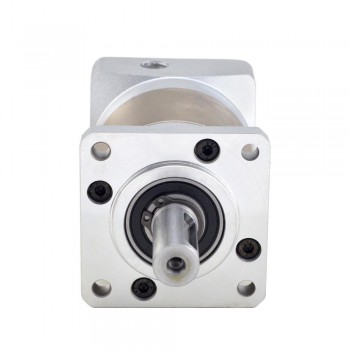

Output Shaft Type: Key way
Output Shaft Diameter: Φ14 mm
Output Shaft Length: 35 mm
Input Shaft Diameter: Φ6.35 mm
Input Shaft Length: 21~24 mm
Resources
Gearbox Datasheet: TQEG23-G20-D6.pdf
Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!
| Physical Specification | |
|---|---|
| Frame Size(mm) | 60 x 60 |
| Weight(g) | 1180 |
| Gearbox Length(mm) | 89.5 |
| Input Shaft Diameter(mm) | 6.35 |
| Input Shaft Length(mm) | 21~24 |
| Output Shaft Diameter(mm) | 14 |
| Output Shaft Length(mm) | 35 |
| Suit for Motor | Nema 23 |
| Gearbox Type | PLE Series |
| Gear Ratio | 20 |
| Backlash at No-load | <=20 arcmin |
| Product Type | PLE Series Planetary Gearbox |
| Output Shaft Type | Keyway Shaft |
