TQEG Series Planetary Gearbox 20:1 Backlash 20 Arcmin for 10mm Shaft Nema 23 Stepper Motor BLDC Motor & Servo Motor

TQEG Series Planetary Gearbox 20:1 Backlash 20 Arcmin for 10mm Shaft Nema 23 Stepper Motor BLDC Motor & Servo Motor
NO.:TQEG23-G20-D10
Post a review
Special Offer in March 2024:
  • 5% OFF on Total Order Amount!
  • Enjoy Discount at Checkout!
  • Valid Till March 31st, 2024
  • Note:No coupon code needed, please place order directly!
Our Price:$65.10
Quantity:- +

Bulk Price:
Qty.Range(unit) Price(unit) Discount
5 $61.85 5%
10 $60.54 7%
50 $58.59 10%
100 $56.64 13%
Add To Cart

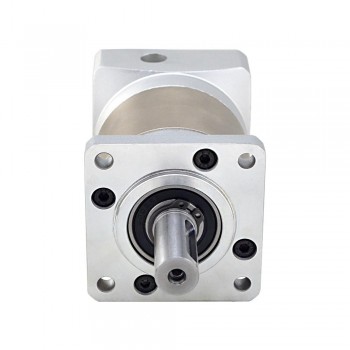

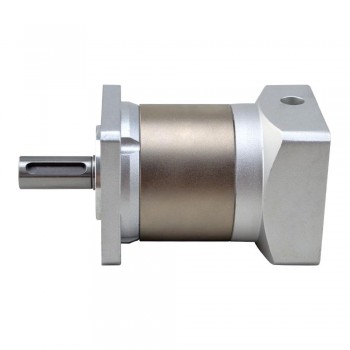

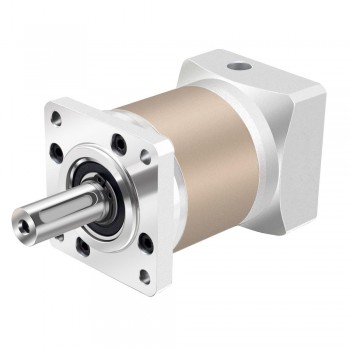

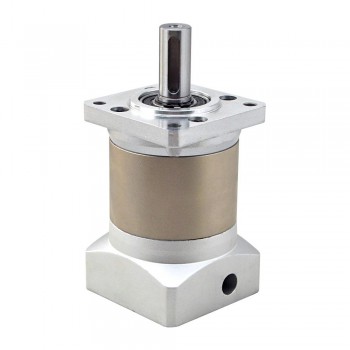

TQEG Series Planetary Gearbox Gear Ratio 20:1 Backlash 20 arc-min for 10mm Shaft Nema 23 Stepper Motor

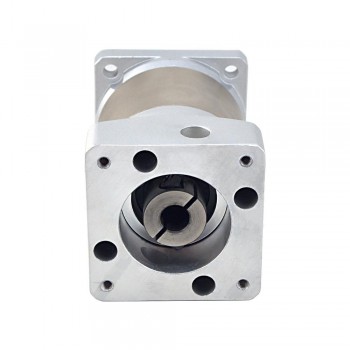

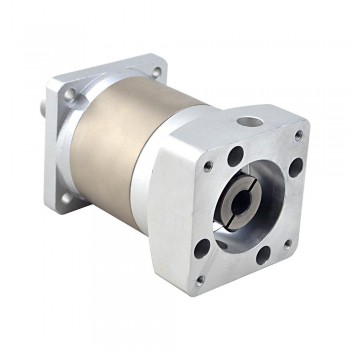

This planetary gearbox is belong to TQEG series gearbox, it with gear ratio 20:1 and a maximum 20 arc-min backlash. This inline planetary gearbox built-in an input shaft coupling which can match any standard 10mm diameter shaft of Nema 23 stepper motor, brushless dc motor and servo motor.



Gearbox Specifications

Manufacturer Part Number: TQEG23-G20-D10

Gearbox Type: Planetary

Gear Ratio: 20: 1

Efficiency: 94%

Backlash at No-load: <=20 arcmin

Max.Permissible Torque: 30 Nm(265.52 lb-in)

Moment Permissible Torque: 60 Nm(531.04 lb-in)

Noise: <=60dB

Waterproof Rating: IP54

Lifetime: 20000 hours



Physical Specifications

Frame Size: 60 x 60 mm

Gearbox Length: 89.5 mm

Output Shaft Type: Key way

Output Shaft Diameter: Φ14 mm

Output Shaft Length: 35 mm

Input Shaft Diameter: Φ10 mm

Input Shaft Length: 21~24 mm



Resources

Gearbox Datasheet: TQEG23-G20-D10.pdf

Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!

Prev: TQEG Series Planetary Gearbox 10:1 Backlash 15 Arcmin for 10mm Shaft Nema 23 Stepper Motor BLDC Motor & Servo Motor
Next: TQEG Series Planetary Gearbox 50:1 Backlash 20 Arcmin for 10mm Shaft Nema 23 Stepper Motor BLDC Motor & Servo Motor
Physical Specification
Frame Size(mm) 60 x 60
Weight(g) 1090
Gearbox Length(mm) 89.5
Input Shaft Diameter(mm) 10
Input Shaft Length(mm) 21~24
Output Shaft Diameter(mm) 14
Output Shaft Length(mm) 35
Suit for Motor Nema 23
Gearbox Type PLE Series
Gear Ratio 20
Backlash at No-load <=20 arcmin
Product Type PLE Series Planetary Gearbox
Output Shaft Type Keyway Shaft
