TQEG Series Nema 24 Planetary Gearbox 10:1 Backlash 15 Arcmin for Nema 24 Motor

TQEG Series Nema 24 Planetary Gearbox 10:1 Backlash 15 Arcmin for Nema 24 Motor
NO.:TQEG24-G10
Post a review
Special Offer in June 2024:
  • 6% OFF on Total Order Amount!
  • Enjoy Discount at Checkout!
  • Valid Till June 20th, 2024
  • Note:No coupon code needed, please place order directly!
Our Price:$55.32
Quantity:- +

Bulk Price:
Qty.Range(unit) Price(unit) Discount
5 $52.55 5%
10 $51.45 7%
50 $49.79 10%
100 $48.13 13%
Add To Cart

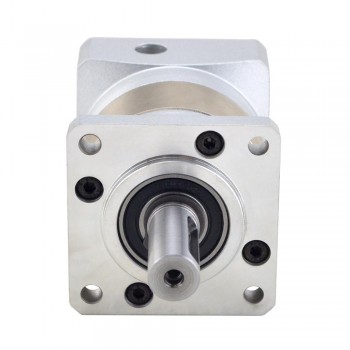

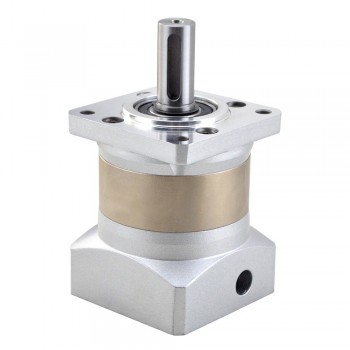

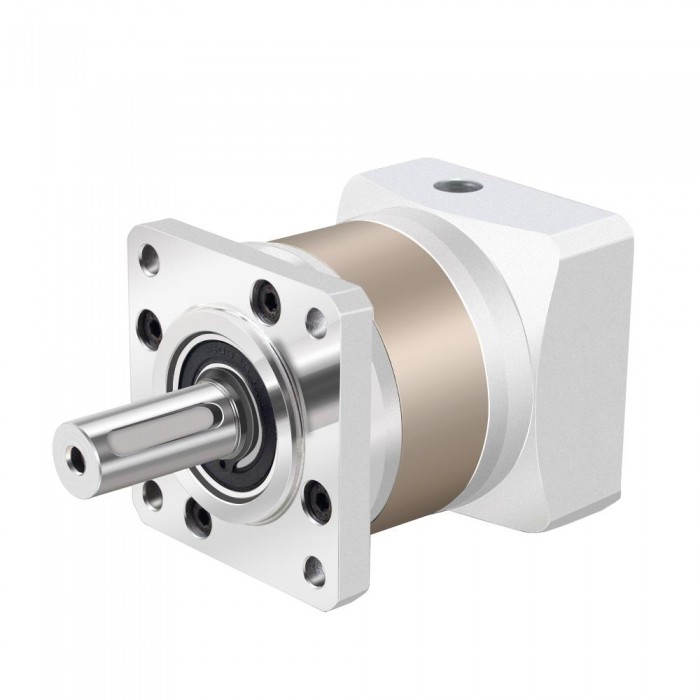

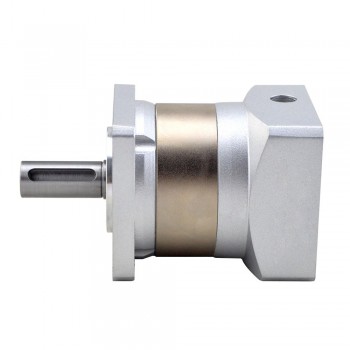

TQEG Series Planetary Gearbox Gear Ratio 10:1 Backlash 15 arc-min for Nema 24 Stepper Motor

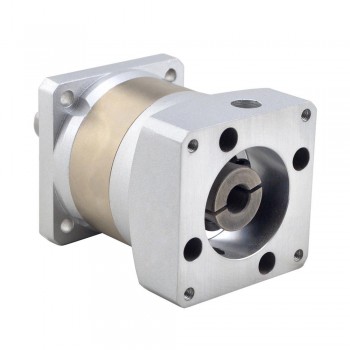

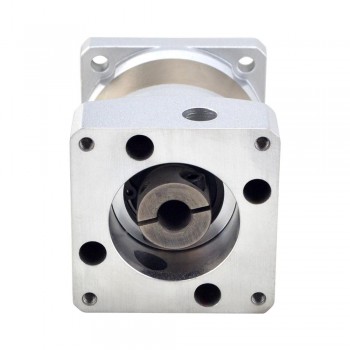

This planetary gearbox is belong to TQEG series gearbox, it with gear ratio 10:1 and a maximum 15 arc-min backlash. This inline planetary gearbox built-in an input shaft coupling which can match any standard Nema 24 stepper motor, brushless dc motor and servo motor.



Gearbox Specifications

Manufacturer Part Number: TQEG24-G10

Gearbox Type: Planetary

Gear Ratio: 10: 1

Efficiency: 96%

Backlash at No-load: <=15 arcmin

Max.Permissible Torque: 10 Nm(88.51 lb-in)

Moment Permissible Torque: 20 Nm(177.01 lb-in)

Noise: <=60dB

Waterproof Rating: IP54

Lifetime: 20000 hours



Physical Specifications

Frame Size: 60 x 60 mm

Gearbox Length: 73.5 mm

Output Shaft Type: Key way

Output Shaft Diameter: Φ14 mm

Output Shaft Length: 35 mm

Input Shaft Diameter: Φ10 mm

Input Shaft Length: 21-24 mm



Resources

Gearbox Datasheet: TQEG24-G10.pdf

Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!

Prev: TQEG Series Nema 24 Planetary Gearbox 5:1 Backlash 15 Arcmin for Nema 24 Motor
Next: TQEG Series Nema 24 Planetary Gearbox 20:1 Backlash 20 Arcmin for Nema 24 Motor
Physical Specification
Frame Size(mm) 60 x 60
Weight(g) 930
Gearbox Length(mm) 73.5
Input Shaft Diameter(mm) 10
Input Shaft Length(mm) 21-24
Output Shaft Diameter(mm) 14
Output Shaft Length(mm) 35
Suit for Motor Nema 24
Gearbox Type PLE Series
Gear Ratio 10
Backlash at No-load <=15 arcmin
Product Type PLE Series Planetary Gearbox
Output Shaft Type Keyway Shaft
