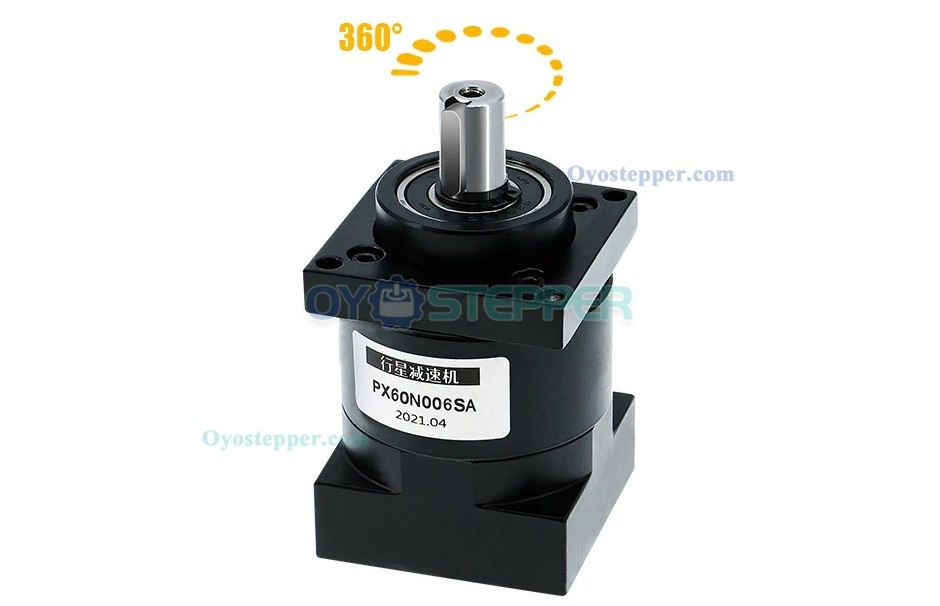

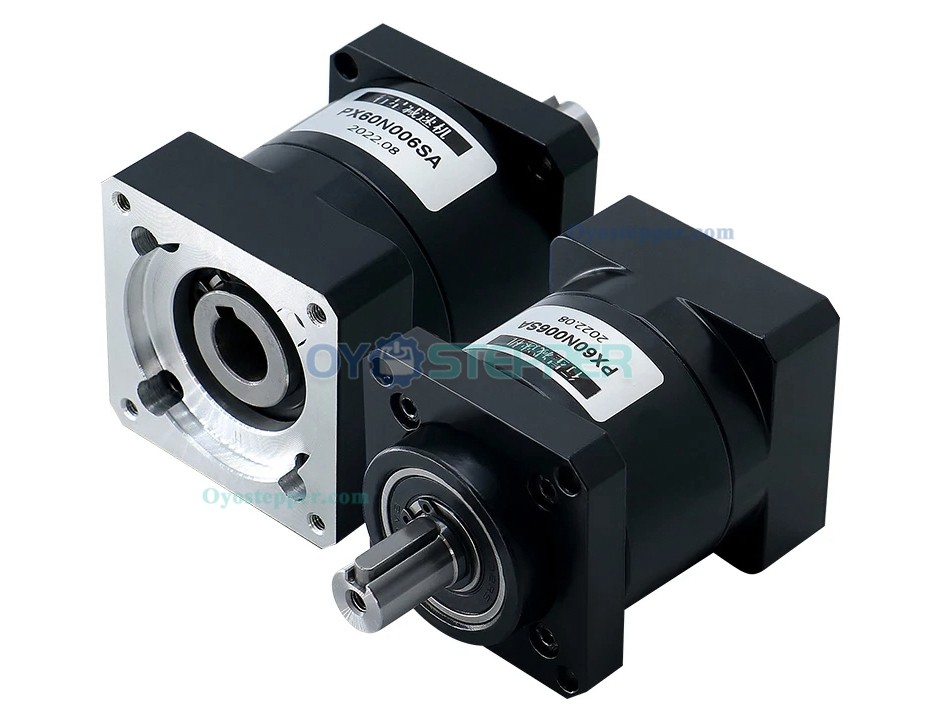

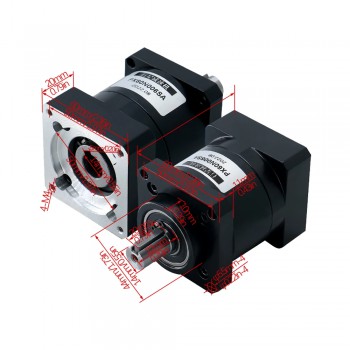

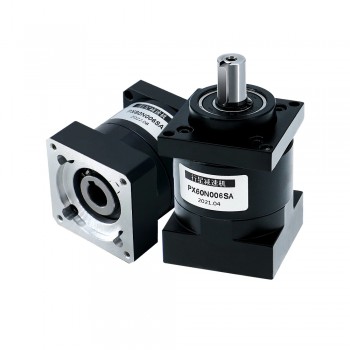

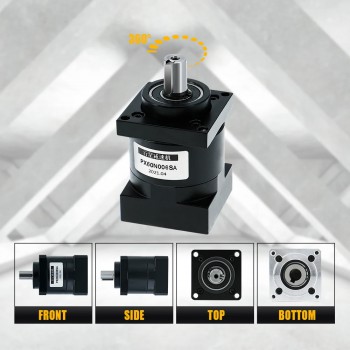

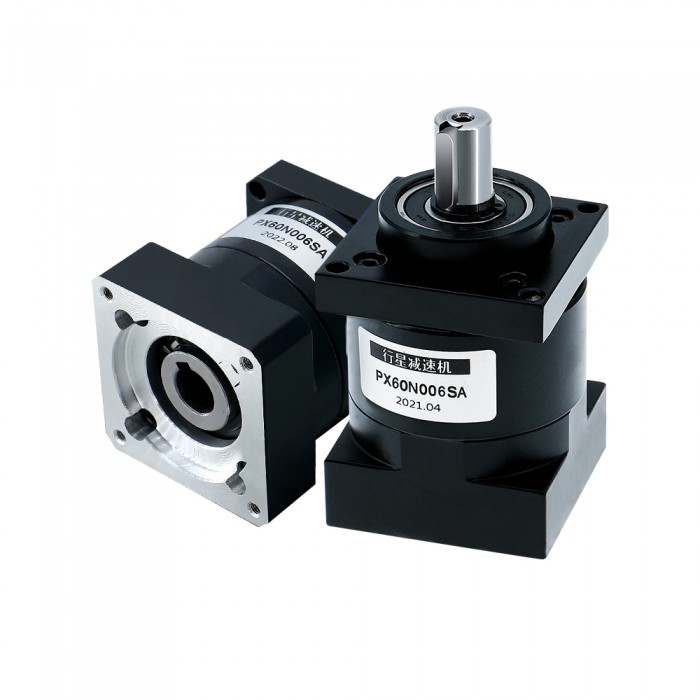

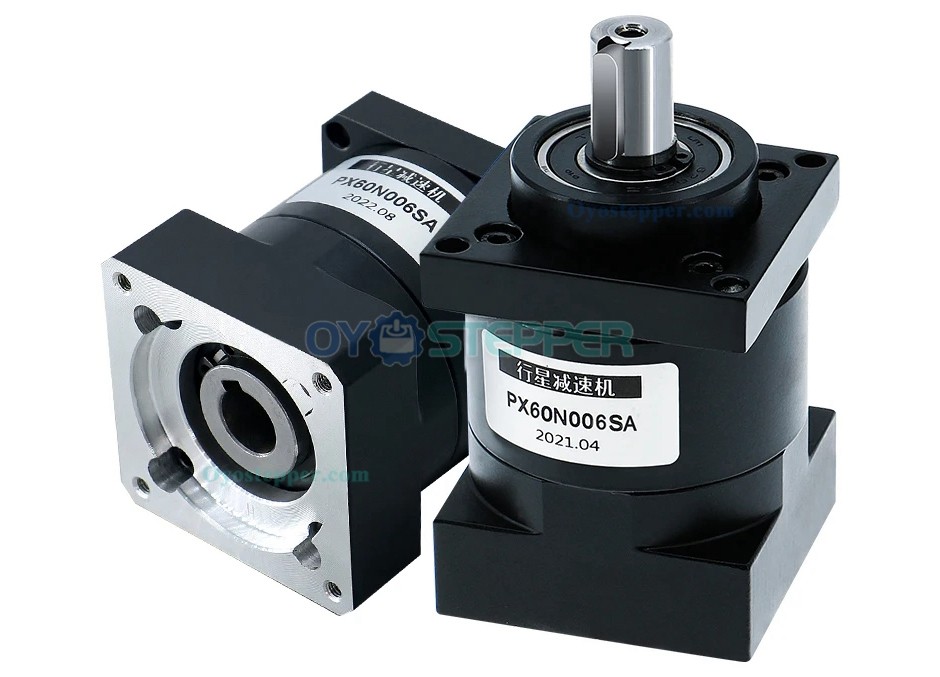

Planetary Reducer PX60 Ratio 4/6/10/16/24/36/64/96/144/216 Max 40N.m Suit For Nema24 60 Stepper Motor
PX60 Series Nema 24 Planetary Gearbox Reducer Gearbox Input Shaft 14mm Output Shaft: 14mm
Specifications:
Input Speed: 3000rpm
Output Torque: 40N.m
Model Number: PX60
Gearing Arrangement: Planetary Gearbox
Certification: CE
Ratio: 4:1/6:1/10:1/16:1/24:1/36:1/64:1/96:1/144:1/216:1
Efficiency: 95% 90% 85%
Protection class: IP65
Noise value: ≤ 60/65/70 DB
Life span: 20000
Input shaft: 14mm
Output shaft: 14mm
Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!

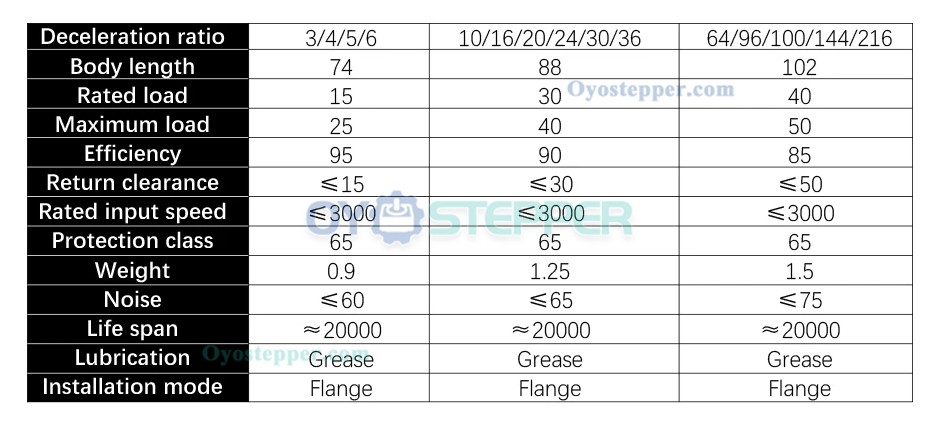

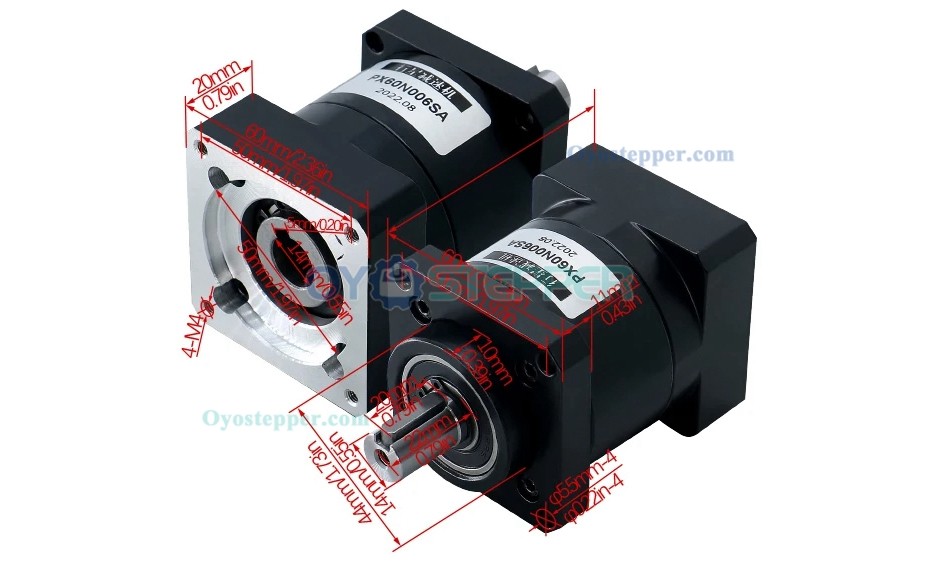

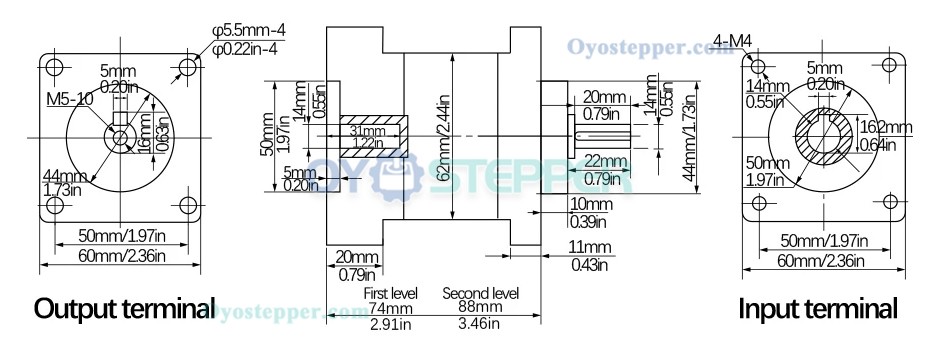

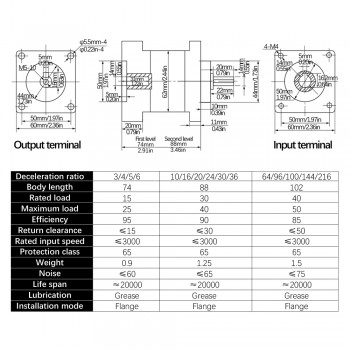

| Physical Specification | |
|---|---|
| Frame Size(mm) | 60 x 60 |
| Weight(g) | 900 / 1250 / 1500 |
| Gearbox Length(mm) | 74 / 88 / 102 |
| Input Shaft Diameter(mm) | 14 |
| Input Shaft Length(mm) | 31 |
| Output Shaft Diameter(mm) | 14 |
| Output Shaft Length(mm) | 20 |
| Gearbox Type | Planetary Gearbox |
| Gear Ratio | 3:1 / 4:1 / 5:1 / 6:1 / 10:1 / 16:1 / 20:1 / 24:1 / 30:1 / 36:1 / 64:1 / 96:1 / 100:1 / 144:1 / 216:1 |
| Output Shaft Type | Keyway |
| Product Series | PX60 |
| Input Shaft Max. Length | 31 |

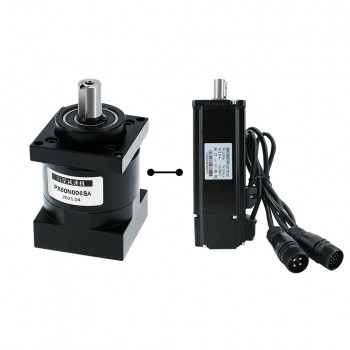

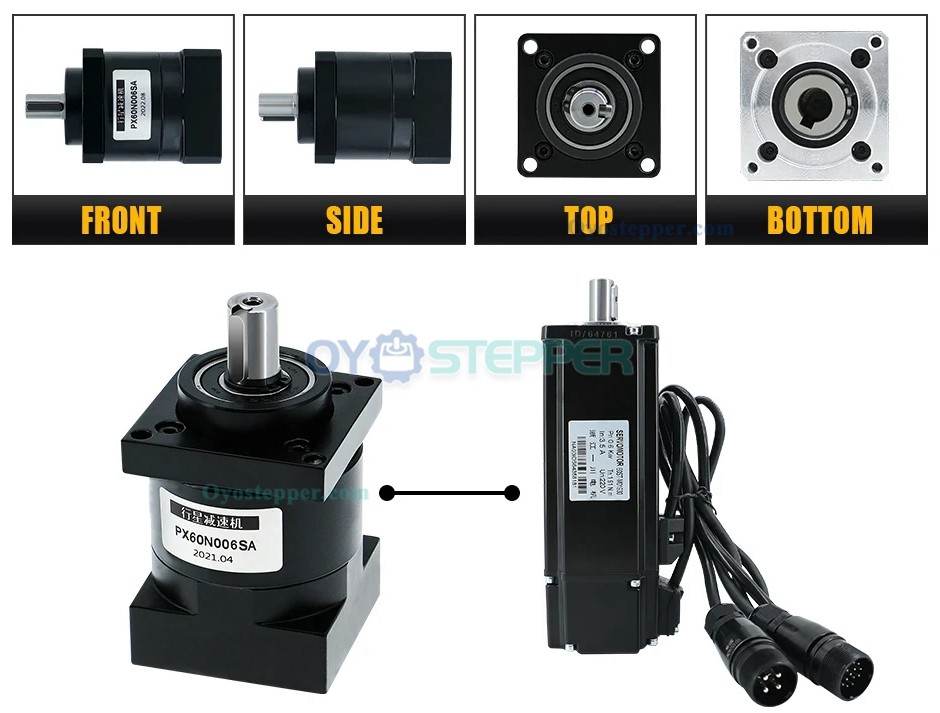

| Suit for Motor | Nema 24 |
