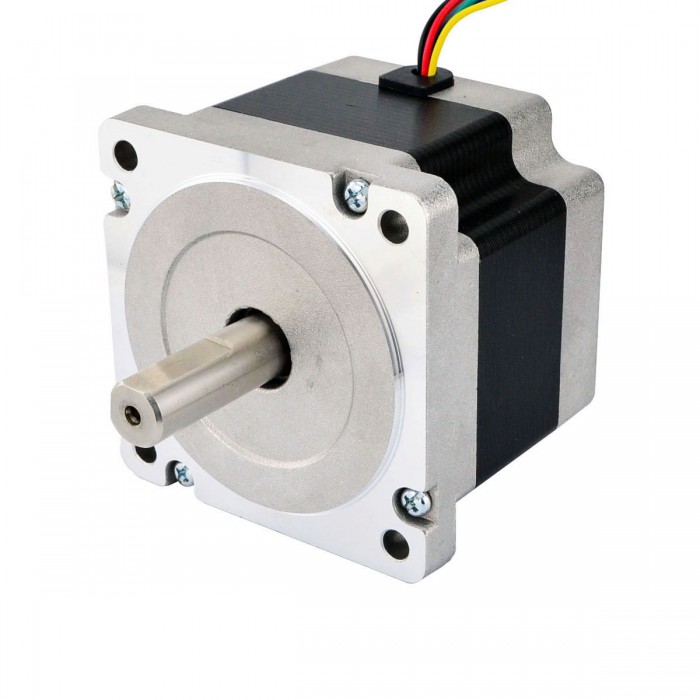

Nema 34 Stepper Motor Dual D-Cut Shaft Unipolar 1.8 Deg 2.2Nm (312oz.in) 2A 4.4V 86x86x66mm 6 Wires
- 6% OFF on Total Order Amount!
- Enjoy Discount at Checkout!
- Valid Till October 7th, 2024
- Note:No coupon code needed, please place order directly!

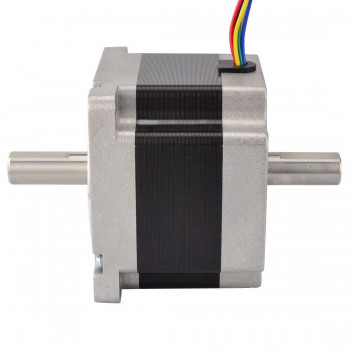

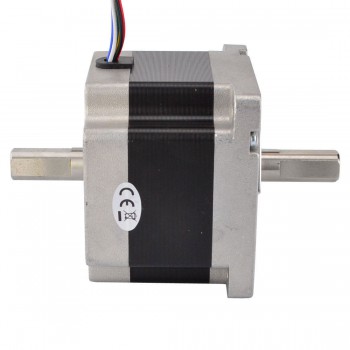

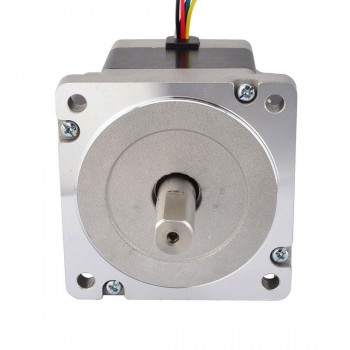

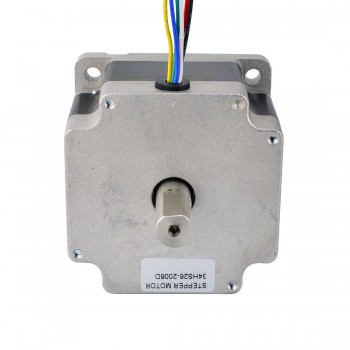

This unipolar Nema 34 stepper motor with step angle 1.8deg and size 86x86x66mm. It has 6 wires, each phase draws 2.0A, with holding torque 2.2Ncm (312oz.in). A rear shaft can mount encoder, hand wheel or equals.
Electrical Specification
Manufacturer Part Number: 34HS26-2006D
Motor Type: Unipolar Stepper
Step Angle: 1.8 deg
Holding Torque: 2.2Nm(312oz.in)
Rated Current/phase: 2.0A
Voltage: 4.4V
Phase Resistance: 2.2ohms
Inductance: 7.0mH ± 20%(1KHz)
Physical Specification
Frame Size: 86 x 86mm
Body Length: 66mm
Shaft Diameter: Φ14mm
Front Shaft Length: 37mm
D-cut Length: 25mm
Rear Shaft Length: 34mm
Number of Leads: 6
Lead Length: 300mm
Weight: 1.7kg
Connection
|
A+
|
O+
|
A-
|
B+
|
O-
|
B-
|
|
BLK
|
YEL
|
GRN
|
RED
|
WHT
|
BLU
|
Resources
Full Datasheet: 34HS26-2006D.pdf
Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!
| Electrical Specification | |
|---|---|
| Bipolar/Unipolar | Unipolar |
| Holding Torque (Ncm) | 220 |
| Holding Torque (oz.in) | 312 |
| Inductance(mH) | 7 |
| Phase Resistance(ohm) | 2.2 |
| Rated Current (A) | 2 |
| Step Angle(°) | 1.8 |
| Physical Specification | |
| Body Length(mm) | 66 |
| Frame Size(mm) | 86x86 |
| Single Shaft/Dual Shaft | Dual Shaft |
| Shaft Type | D-Cut |
| Shaft Diameter(mm) | 14 |
| Shaft Length(mm) | 37 |
| No. of Lead | 6 |
| Lead Length(mm) | 300 |
| Weight(g) | 1700 |
- Connectors: Molex, Harwin, Tyco/AMP, JST etc.
- Lead wires & cables: Special lengths, Protective hose
- Shaft: Round, D-Cut, Cross drilled, Key-Way, Thread or Hollow
- Winding: Resistance, Inductance, Rated Current, etc.
