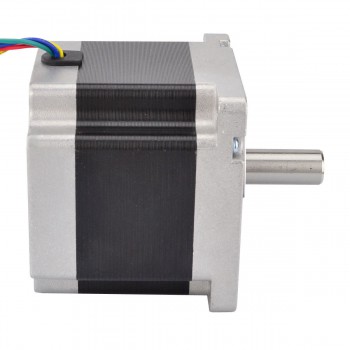

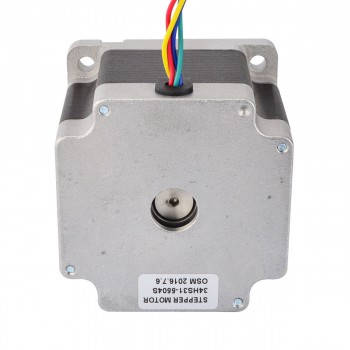

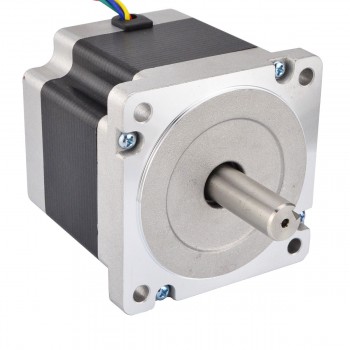

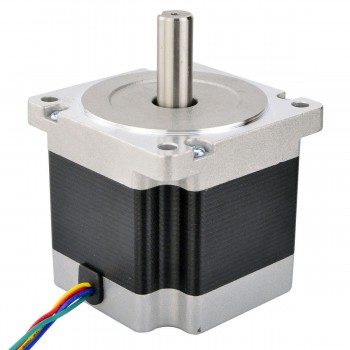

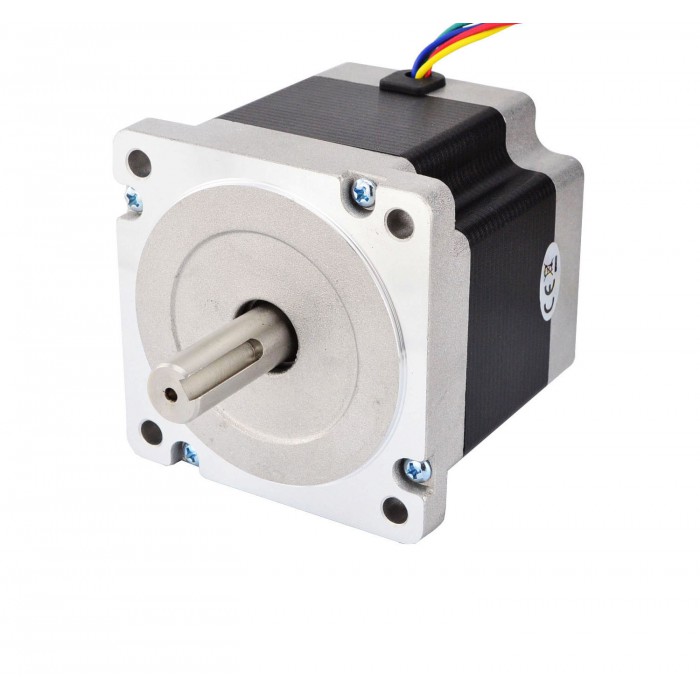

Nema 34 CNC Stepper Motor Bipolar 1.8 Deg 4.5Nm (637oz.in) 2.2V 5.5A 86x86x80mm Key-way Shaft
This Nema 34 cnc stepper motor with size 86x86x80mm. It has 4 wires, each phase draws 5.5A, with holding torque 4.5Nm (637oz.in).
Electrical Specification
Manufacturer Part Number: 34HS31-5504S
Motor Type: Bipolar Stepper
Step Angle: 1.8 deg
Holding Torque: 4.5Nm(637oz.in)
Rated Current/phase: 5.5A
Voltage: 2.2V
Phase Resistance: 0.4ohms
Inductance: 3.5mH ± 20%(1KHz)
Physical Specification
Frame Size: 86 x 86mm
Body Length: 80mm
Shaft Diameter: Φ14mm
Shaft Length: 35mm
Key Way Length: 25mm
Number of Leads: 4
Lead Length: 500mm
Weight: 2.3kg
Connection
| A+ | A- | B+ | B- |
| Red | Green | Yellow | Blue |
Resources
Full Datasheet: 34HS31-5504S.pdf
Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!
| Electrical Specification | |
|---|---|
| Bipolar/Unipolar | Bipolar |
| Holding Torque (Ncm) | 450 |
| Holding Torque (oz.in) | 637 |
| Inductance(mH) | 3.5 |
| Phase Resistance(ohm) | 0.4 |
| Rated Current (A) | 5.5 |
| Step Angle(°) | 1.8 |
| Physical Specification | |
| Body Length(mm) | 80 |
| Frame Size(mm) | 86x86 |
| Single Shaft/Dual Shaft | Single Shaft |
| Shaft Diameter(mm) | 14 |
| Shaft Length(mm) | 35 |
| No. of Lead | 4 |
| Lead Length(mm) | 500 |
| Weight(g) | 2300 |
| Shaft Type | Keyway |
- Connectors: Molex, Harwin, Tyco/AMP, JST etc.
- Lead wires & cables: Special lengths, Protective hose
- Shaft: Round, D-Cut, Cross drilled, Key-Way, Thread or Hollow
- Winding: Resistance, Inductance, Rated Current, etc.
