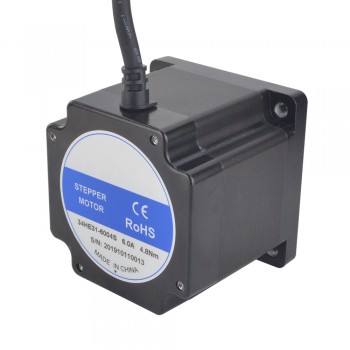

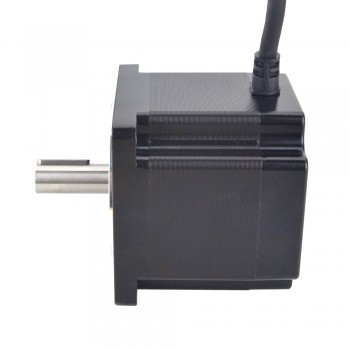

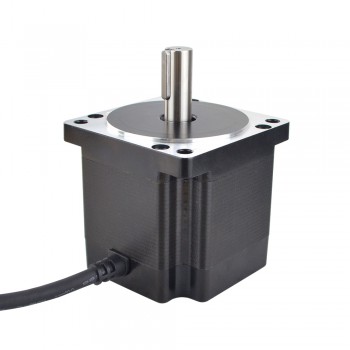

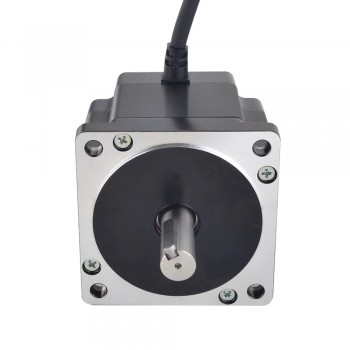

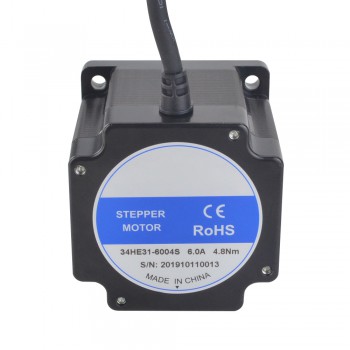

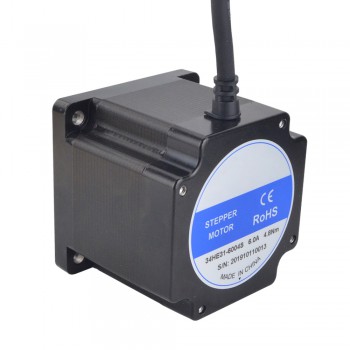

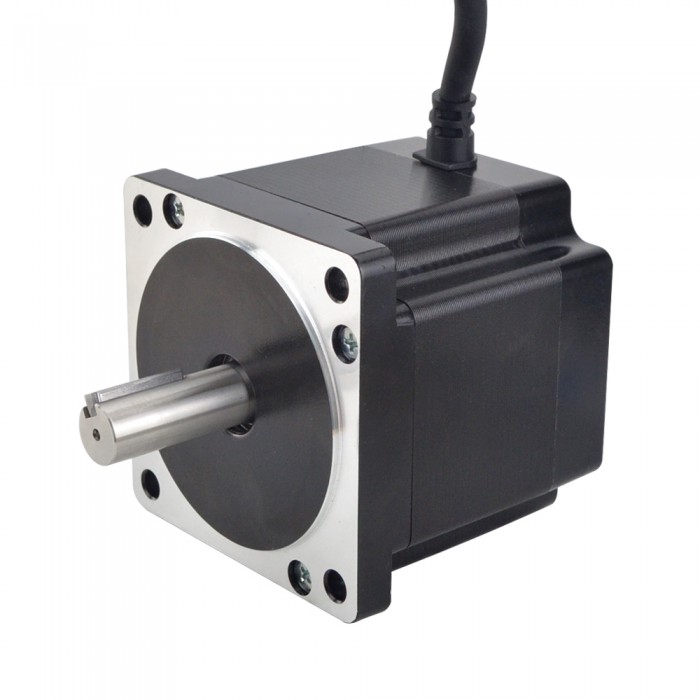

E Series Nema 34 Stepper Motor Bipolar 2 Phase 1.8 Degree 4.8 Nm(679.87oz.in) 6.0A 86x86x80mm

E Series Nema 34 Stepper Motor Bipolar 2 Phase 1.8 Degree 4.8 Nm(679.87oz.in) 6.0A 86x86x80mm
NO.:34HE31-6004S
Post a review
Special Offer in April 2024:
  • 6% OFF on Total Order Amount!
  • Enjoy Discount at Checkout!
  • Valid Till April 20th, 2024
  • Note:No coupon code needed, please place order directly!
Our Price:$33.74
Quantity:- +

Bulk Price:
Qty.Range(unit) Price(unit) Discount
5 $32.05 5%
10 $31.38 7%
50 $30.37 10%
100 $29.35 13%
Add To Cart

E Series Nema 34 Stepper Motor Bipolar 1.8deg 4.8 Nm(679.87oz.in) 6.0A 86x86x80mm 4 Wires



Electrical Specification

Manufacturer Part Number: 34HE31-6004S

Number of phase: 2

Step Angle: 1.8 deg

Holding Torque: 4.8 Nm(679.87oz.in)

Rated Current/phase: 6.0 A

Phase Resistance: 0.42 ohms± 10%

Inductance: 3.5 mH ± 20%(1KHz)



Physical Specification

Frame Size: 86 x 86 mm

Body Length: 80 mm

Shaft Diameter: Φ14 mm

Shaft Length: 37 mm

Keyway Shaft Length: 25 mm

Number of Leads: 4

Lead Length: 500 mm

Weight: 2.3 kg



Connection

A+ A- B+ B-
BLK GRN RED BLU



Resources

Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!

Prev: E Series Round Nema 14 Stepper Motor Bipolar 0.9 Deg 8Ncm (11.33oz.in) 1.0A 36x17mm 4 Wires
Next: S Series Nema 34 Step Motor Bipolar 2 Phase 1.8 Degree 4.8 Nm(679.87oz.in) 6.0A 86x86x80mm 4 Wires
Electrical Specification
Holding Torque (Ncm) 480
Holding Torque (oz.in) 679.87
Inductance(mH) 3.5
Phase Resistance(ohm) 0.42
Rated Current (A) 6.0
Step Angle(deg.) 1.8
Physical Specification
Body Length(mm) 80
Frame Size(mm) Nema 34 (86 x 86)
Lead Length(mm) 500
No. of Lead 4
Shaft Diameter(mm) 14
Shaft Length(mm) 37
Single Shaft/Dual Shaft Single Shaft
Weight(g) 2300
Output Shaft Type Keyway
