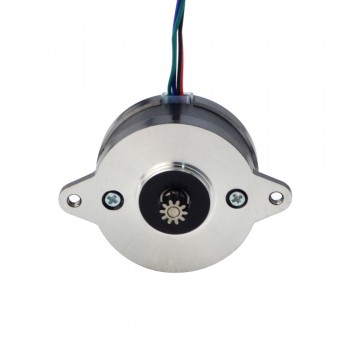

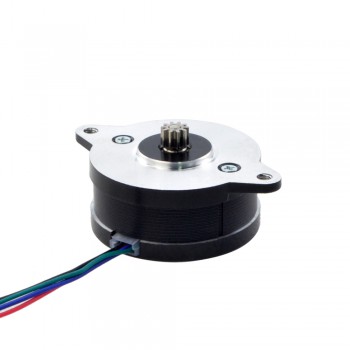

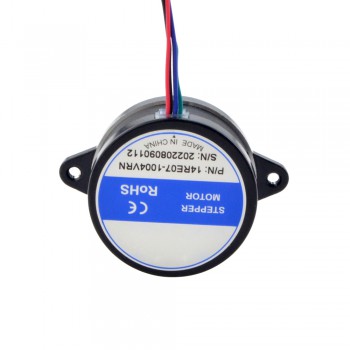

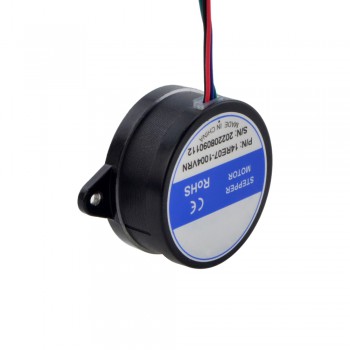

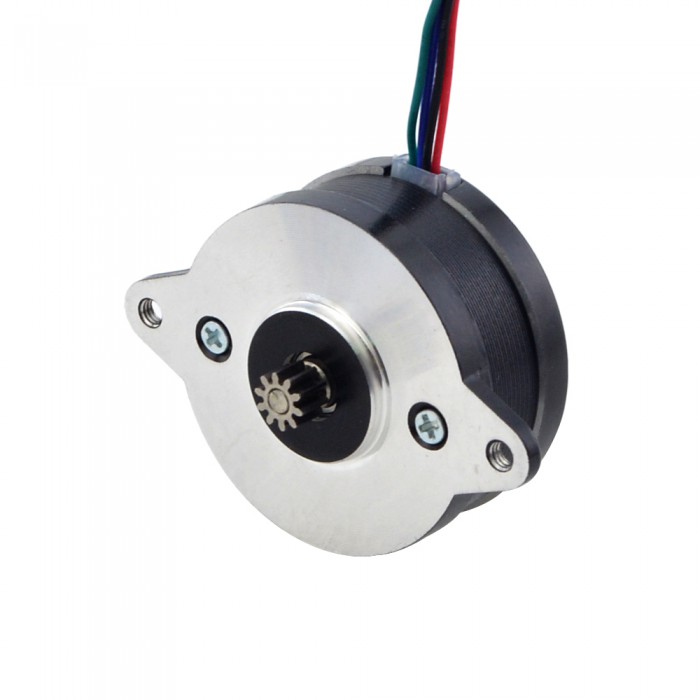

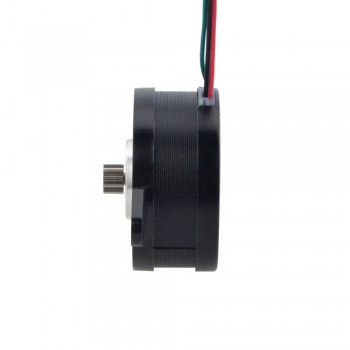

E Series Round Nema 14 Stepper Motor Bipolar 0.9deg 8Ncm (11.33oz.in) 1.0A 36x17mm 4 Wires

E Series Round Nema 14 Stepper Motor Bipolar 0.9deg 8Ncm (11.33oz.in) 1.0A 36x17mm 4 Wires
NO.:14RE07-1004VRN
Review: Post a review
Black Friday Special Offer 2022:
  • 6% OFF on Total Order Amount!
  • Enjoy Discount at Checkout!
  • Valid Till November 30th, 2022
  • Note:No coupon code needed, please place order directly!
Latest price:$12.13
Buy It Now:$8.09
Quantity:- +

Bulk Price:
Qty.Range(unit) Price(unit) Discount
5 $7.85 3%
10 $7.61 6%
50 $7.38 9%
100 $7.14 12%
Add To Cart

E Series Round Nema 14 Bipolar 0.9deg 8Ncm (11.33oz.in) 1.0A 36x17mm 4 Wires



Electrical Specification

Manufacturer Part Number: 14RE07-1004VRN

Motor Type: Bipolar Stepper

Step Angle: 0.9 deg

Holding Torque: 8Ncm (11.33oz.in)

Rated Current/phase: 1.0A

Phase Resistance: 3.9ohms

Inductance: 2.5mH ± 20%(1KHz)



Physical Specification

Frame Size: Φ36mm

Body Length: 17mm

Shaft Diameter: Φ2.5mm

Shaft Length: 6mm

Number of Leads: 4

Lead Length: 500mm



Connection

A+ A- B+ B-
Red Green Black Blue

Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!

Prev: E Series Nema 17 Stepper Motor Bipolar 1.8deg 17Ncm(24.07oz.in)1A 42x42x20mm 4 Wires
Next: E Series Nema 34 Stepper Motor Bipolar 4 Wires 1.8deg 4.8 Nm(679.87oz.in) 6.0A 86x86x80mm
Electrical Specification
Bipolar/Unipolar Bipolar
Holding Torque (Ncm) 8
Holding Torque (oz.in) 11.33
Inductance(mH) 2.5
Phase Resistance(ohm) 3.9
Rated Current (A) 1.0
Step Angle(deg.) 0.9
Physical Specification
Body Length(mm) 17
Frame Size(mm) Nema 14 (Φ36.5)
Lead Length(mm) 500
No. of Lead 4
Shaft Diameter(mm) 2.5
Shaft Length(mm) 6
Single Shaft/Dual Shaft Single Shaft
Output Shaft Type O
