Round Pancake Nema 18 Bipolar 1.8deg 9Ncm (12.748oz.in) 1A Φ46x16mm 4 Wires

NO.:18HR06-1004S
Review: Post a review
Latest price:$31.50
Buy It Now:$21.00
Quantity:- +

Add To Cart

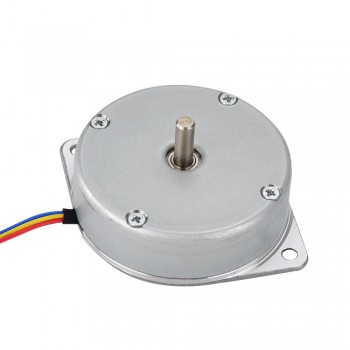

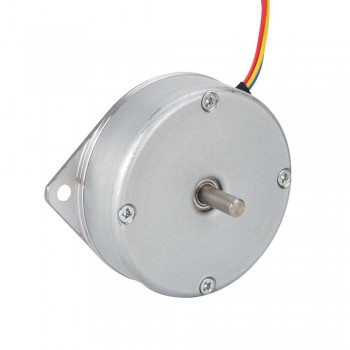

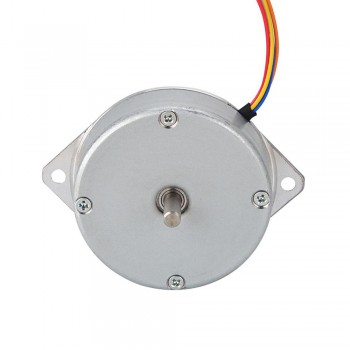

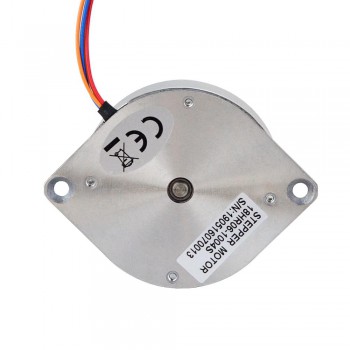

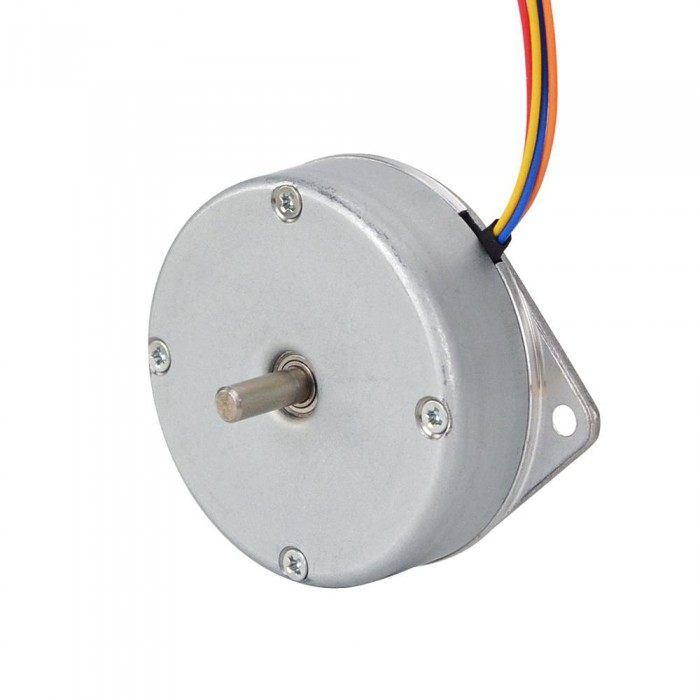

This bipolar pancake Nema 18 stepper motor with step angle 1.8deg and size Φ46x16 mm. It has 4 wires, each phase draws 1 A, with holding torque 9 Ncm (12.748 oz.in).

Electrical Specification

  • Manufacturer Part Number: 18HR06-1004S
  • Motor Type: Bipolar Stepper
  • Step Angle: 1.8 deg
  • Holding Torque: 9 Ncm(12.748 oz.in)
  • Rated Current/phase: 1 A
  • Phase Resistance: 2.8 ohms
  • Inductance: 2.4 mH ± 20%(1KHz)

Physical Specification

  • Frame Size: Φ46 mm
  • Body Length: 16 mm
  • Shaft Diameter: Φ4 mm
  • Shaft Length: 10 mm
  • Number of Leads: 4
  • Lead Length: 300 mm
  • Weight: 103 g

Connection

A+
A-
B+
B-
Red
Blue
Orange
Yellow



Resources

Wholesale stepper motors and wholesale stepper motor drivers online with top quality and competitive price at Oyostepper.com!

Prev: Round Pancake Nema 24 Bipolar 1.8deg 6Ncm (8.498oz.in) 1A Φ60x9.6mm 4 Wires
Next: Nema 52 3-phase Stepper Motor Bipolar 36 Nm(5099.04oz.in) 5.0A 130x130x220mm
Electrical Specification
Bipolar/Unipolar Bipolar
Holding Torque (Ncm) 9
Holding Torque (oz.in) 12.748
Inductance(mH) 2.4
Phase Resistance(ohm) 2.8
Rated Current (A) 1
Step Angle(°) 1.8
Physical Specification
Body Length(mm) 16
Frame Size(mm) Φ46
Lead Length(mm) 300
No. of Lead 4
Shaft Diameter(mm) 4
Shaft Length(mm) 10
Shaft Type O
Single Shaft/Dual Shaft Single Shaft
  • Connectors: Molex, Harwin, Tyco/AMP, JST etc.
  • Lead wires & cables: Special lengths, Protective hose
  • Shaft: Round, D-Cut, Cross drilled, Key-Way, Thread or Hollow
  • Winding: Resistance, Inductance, Rated Current, etc.
