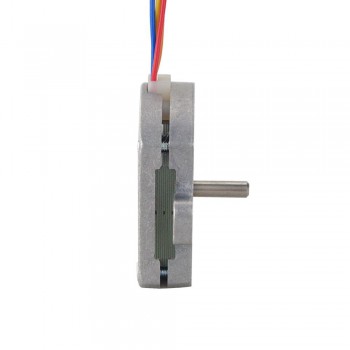

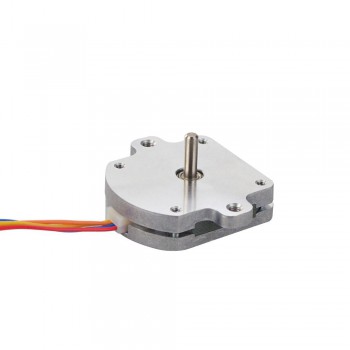

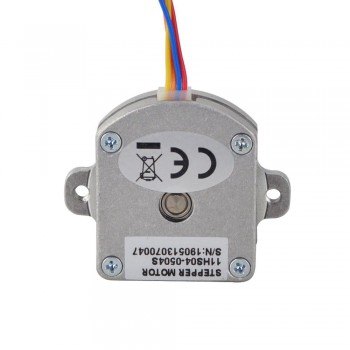

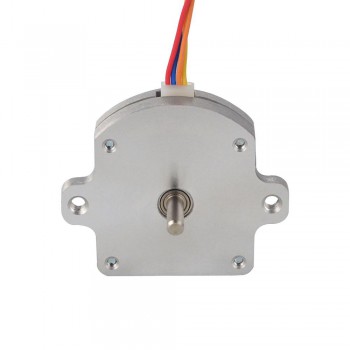

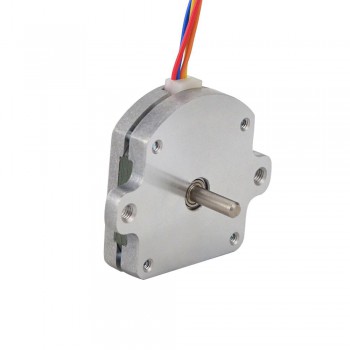

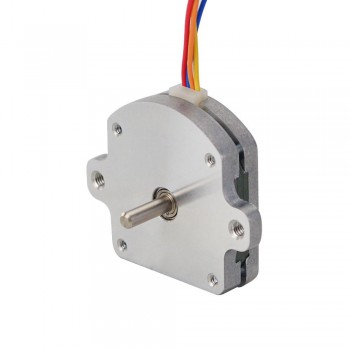

Pancake Nema 11 Stepper Motor Bipolar 1.8 Degree 1Ncm (1.4164oz.in) 0.5A 28x28x9.5mm 4 Wires

Pancake Nema 11 Stepper Motor Bipolar 1.8 Degree 1Ncm (1.4164oz.in) 0.5A 28x28x9.5mm 4 Wires
NO.:11HS04-0504S
Review: Post a review
Our Price:$26.08
Quantity:- +

Bulk Price:
Qty.Range(unit) Price(unit) Discount
5 $24.78 5%
10 $24.25 7%
50 $23.47 10%
100 $22.69 13%
Add To Cart

This bipolar pancake Nema 11 stepper motor with step angle 1.8deg and size 28x28x9.5 mm. It has 4 wires, each phase draws 0.5 A, with holding torque 10 Ncm (14.164 oz.in).



Electrical Specification



Manufacturer Part Number: 11HS04-0504S





Motor Type: Bipolar Stepper





Step Angle: 1.8 deg





Holding Torque: 1Ncm (1.4164oz.in)





Rated Current/phase: 0.5 A





Phase Resistance: 4 ohms





Inductance: 0.8 mH ± 20%(1KHz)





Physical Specification



Frame Size: 28 x 28 mm





Body Length: 9.5 mm





Shaft Diameter: Φ4 mm





Shaft Length: 10 mm





Number of Leads: 4





Lead Length: 300 mm





Weight: 28 g

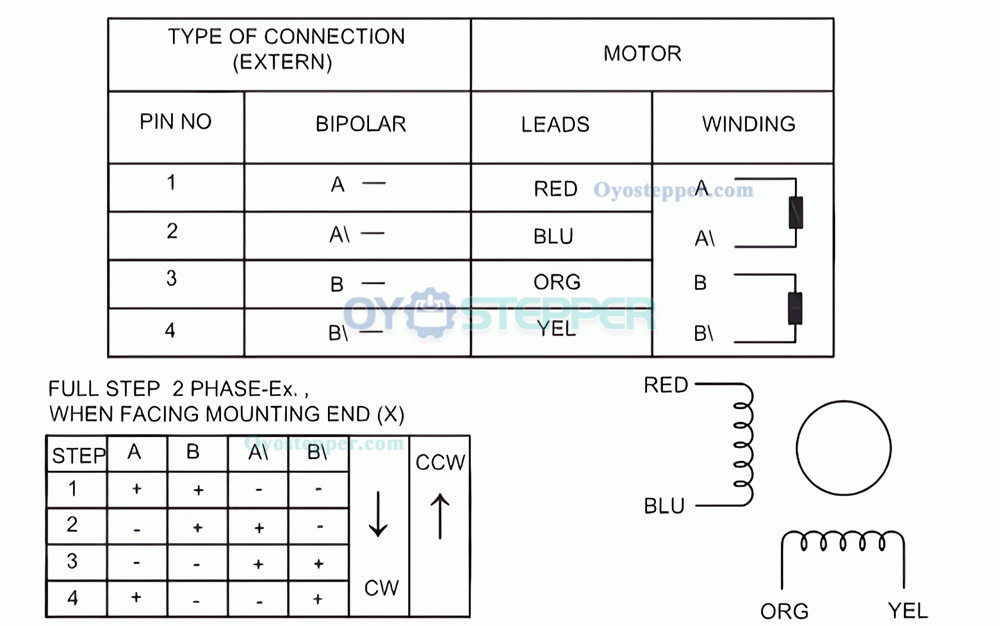

Connection

A+

A-

B+

B-

Red

Blue

Orange

Yellow



Resources

Full Datasheet: 17HM19-2004S.pdf



Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!

Prev: Nema 17 Bipolar Stepper Motor 12V 1.8 Degree 26Ncm (36.8oz.in) 0.4A 42x42x34mm 4 Wires
Next: Round Pancake Nema 24 Stepper Motor Bipolar 1.8 Degree 6Ncm (8.498oz.in) 1A Φ60x9.6mm 4 Wires
Physical Specification
Frame Size(mm) 28x28
Body Length(mm) 9.5
Lead Length(mm) 300
No. of Lead 4
Shaft Diameter(mm) 3
Shaft Length(mm) 10
Shaft Type O
Single Shaft/Dual Shaft Single Shaft
Electrical Specification
Bipolar/Unipolar Bipolar
Holding Torque (Ncm) 1
Holding Torque (oz.in) 1.416
Inductance(mH) 0.8
Phase Resistance(ohm) 4
Rated Current (A) 0.5
Step Angle(°) 1.8
  • Connectors: Molex, Harwin, Tyco/AMP, JST etc.
  • Lead wires & cables: Special lengths, Protective hose
  • Shaft: Round, D-Cut, Cross drilled, Key-Way, Thread or Hollow
  • Winding: Resistance, Inductance, Rated Current, etc.

Emerada – 08 Nov 2024

My printer is broken. My friend told me that I need to replace the stepper motor. Then he recommended this Chinese supplier to me. Now my printer has been working for a while. It seems that the quality of the motor is still guaranteed.

Customer reviews Username:


E-mail:


Content:
Rank:

View History
