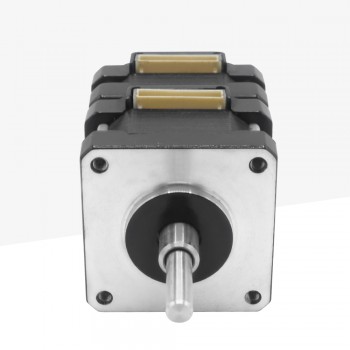

Multilayer Nema 16 Stepper Motor 1.8° 0.4A 10.4V 200m N.m 0.4A 2 Phase DC Hybrid Stepper Motor

Multilayer Nema 16 Stepper Motor 1.8° 0.4A 10.4V 200m N.m 0.4A 2 Phase DC Hybrid Stepper Motor
NO.:TQE39C-05
Post a review
Our Price:$25.99
Quantity:- +

Bulk Price:
Qty.Range(unit) Price(unit) Discount
5 $24.69 5%
10 $24.17 7%
50 $23.39 10%
100 $22.09 15%
Add To Cart

Multilayer Nema 16 Stepper Motor 1.8° 0.4A 10.4V 200m N.m 0.4A 2 Phase DC Hybrid Stepper Motor



Electrical Specification:
Manufacturer Part Number: TQE39C-05
Motor Type: Bipolar multilayer motor
Number of Phase:2
Step Angle: 1.8 deg
Insulation Resistance:100MΩmin. (500V DC)
Holding Torque: 200mN.m
Detent torque:20mN.m
Rated Current/phase: 0.4A
Rated Voltage: 12VDC
Resistance per phase: 3.5 Ω±10%
Inductance per Phase:0.90 m H±20%;


Physical Specification
Frame Size: 39X39X45mm
Body Length: 45mm
Shaft diameter:8mm
Number of Leads: 4
Weight: 40g

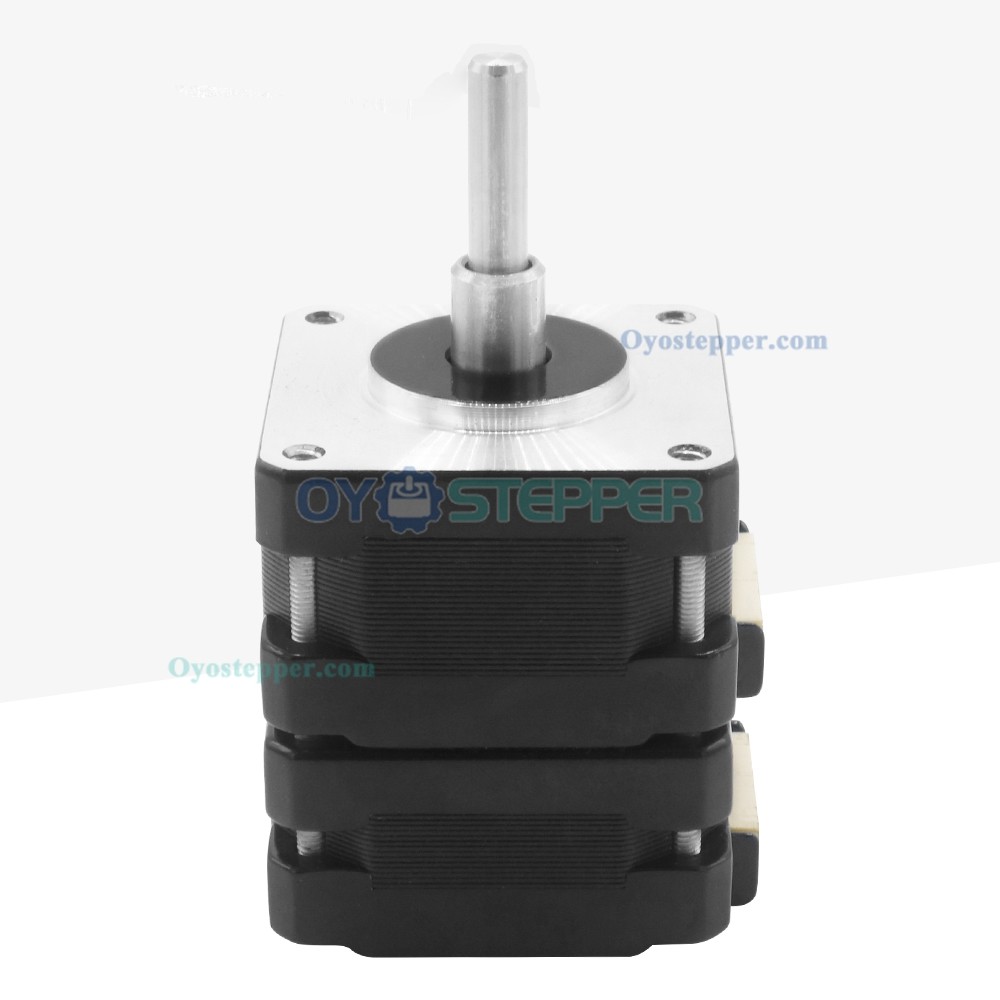

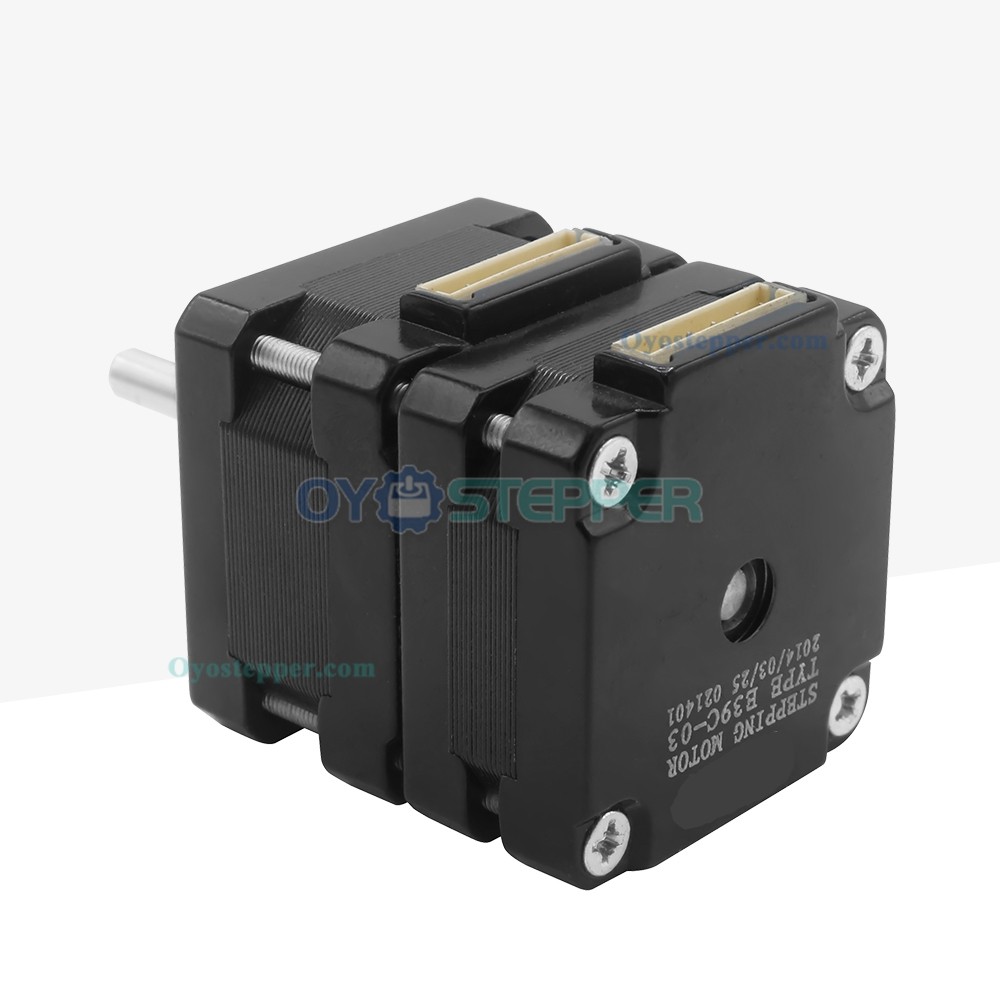

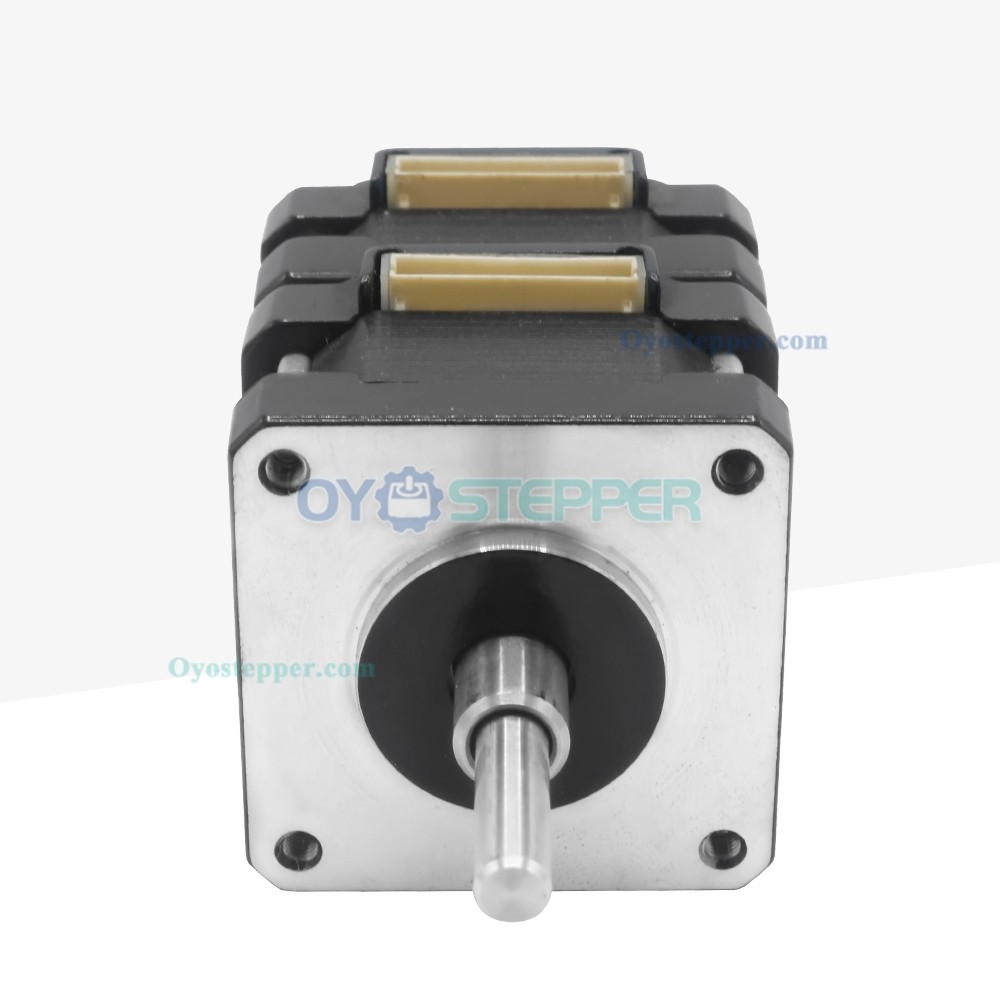

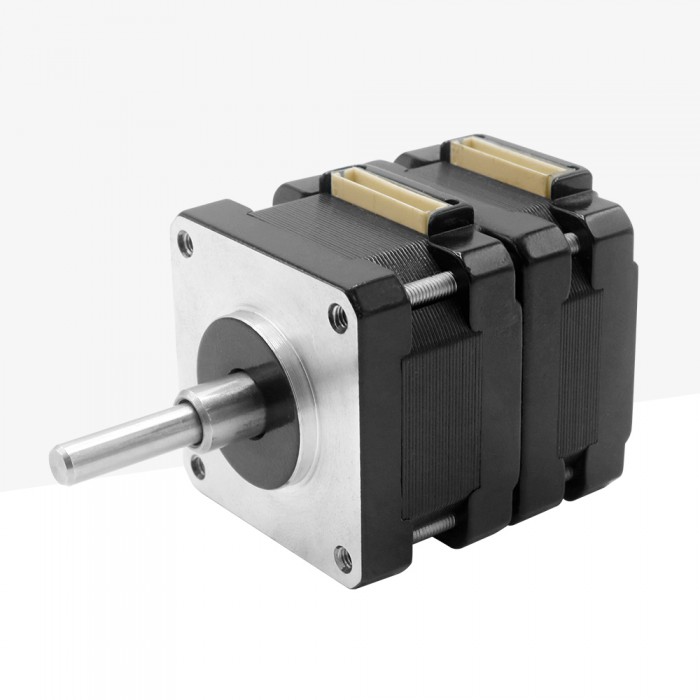

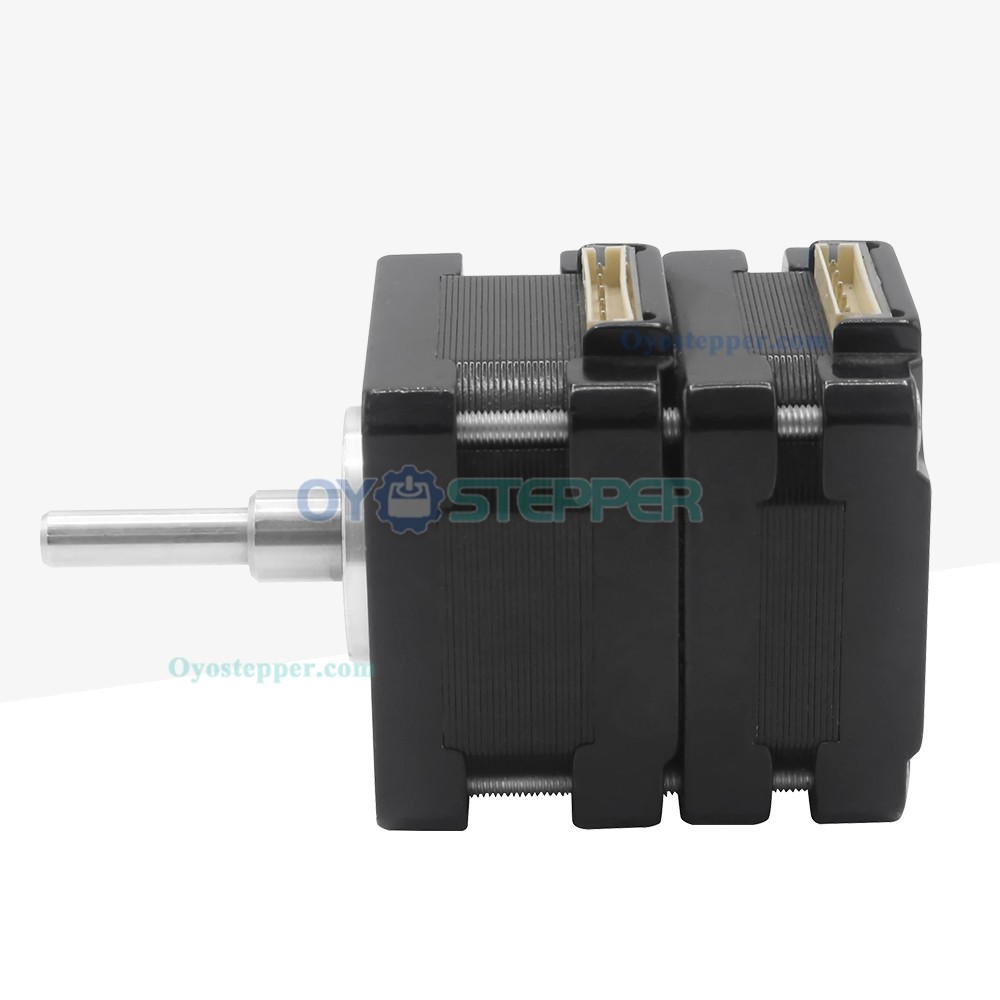

Multilayer Nema 16 Stepper Motor 1.8° 0.4A 10.4V 200m N.m 0.4A 2 Phase DC Hybrid Stepper Motor

Multilayer Nema 16 Stepper Motor 1.8° 0.4A 10.4V 200m N.m 0.4A 2 Phase DC Hybrid Stepper Motor

Multilayer Nema 16 Stepper Motor 1.8° 0.4A 10.4V 200m N.m 0.4A 2 Phase DC Hybrid Stepper Motor

Multilayer Nema 16 Stepper Motor 1.8° 0.4A 10.4V 200m N.m 0.4A 2 Phase DC Hybrid Stepper Motor

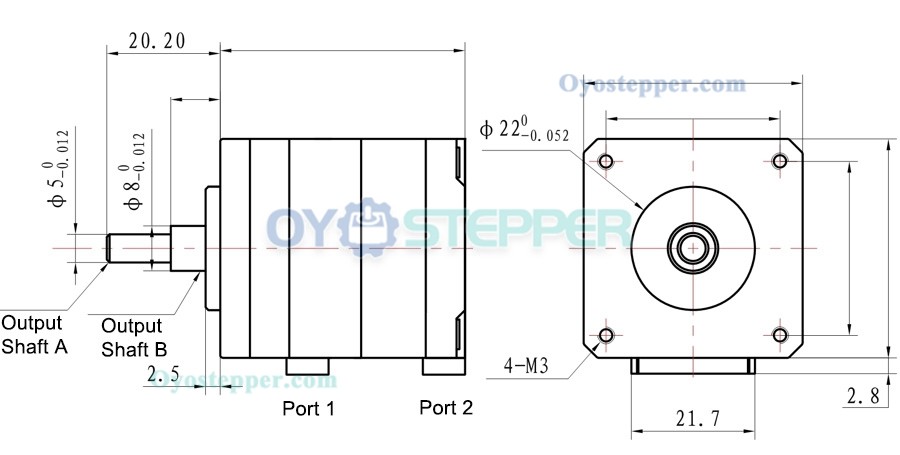

Dimensions:

Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!

Prev: Multi-layer Nema 17 Stepper Motor 1.8° 0.4A 12V 200m N.m 0.4A 2 Phase Multilayer DC Hybrid Stepper Motor
Next: 12V 24V Small DC Brushless Motor DC Gear Motor Planetary Gearbox 3kg.cm 20mm
Electrical Specification
Bipolar/Unipolar Bipolar
Rated Current (A) 0.4
Step Angle(°) 1.8
Motor Type Multilayer stepper motor
No. of Phase 2
Detent Torque(mN.m) 20
Holding Torque(mN.m) 200
Rated Voltage(V) 12
Physical Specification
Body Length(mm) 57.5
Frame Size(mm) 42X42mm
No. of Lead 4
Single Shaft/Dual Shaft Single Shaft
Weight(g) 30
