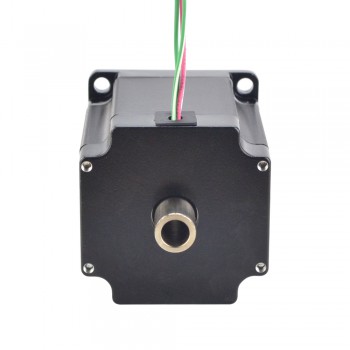

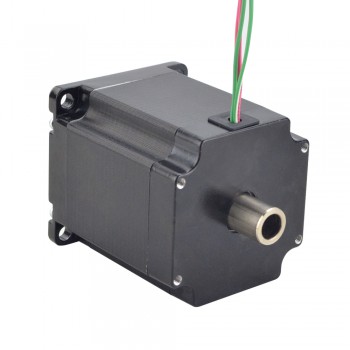

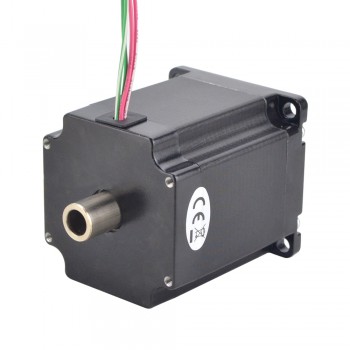

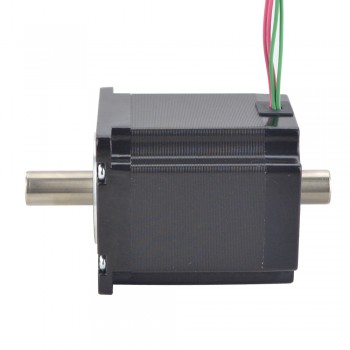

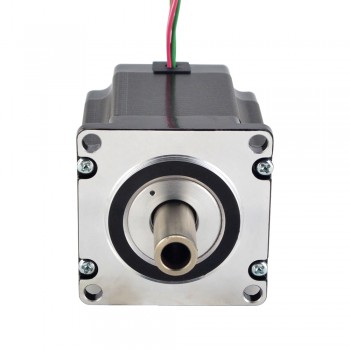

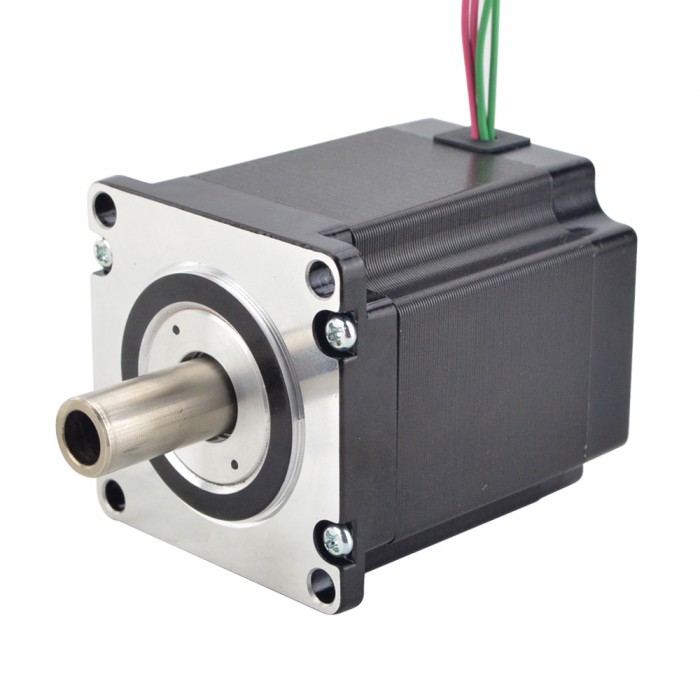

Hollow Shaft Nema 23 Stepper Motor Bipolar 1.8 Deg 1.45 Nm(205.38oz.in) 2.0A Dual Shaft 4 Wires
Special Offer in April 2024:
- 6% OFF on Total Order Amount!
- Enjoy Discount at Checkout!
- Valid Till April 20th, 2024
- Note:No coupon code needed, please place order directly!
Our Price:$36.28
Electrical Specification
- Manufacturer Part Number: 23HS26-2004H
- Motor Type: Bipolar Stepper
- Step Angle: 1.8 deg
- Holding Torque: 1.45 Nm(205.38oz.in)
- Rated Current/phase: 2.0 A
- Phase Resistance: 2.15 ohms± 10%
- Inductance: 6.9 mH ± 20%(1KHz)
Physical Specification
- Frame Size: 57 x 57 mm
- Body Length: 65 mm
- Outer Shaft Diameter: Φ12 mm
- Inner Shaft Diameter: Φ8 mm
- Front Shaft Length: 25 mm
- Rear Shaft Length: 13 mm
- Number of Leads: 4
- Lead Length: 310 mm
- Weight: 0.98 kg
Connection
|
A+
|
A-
|
B+
|
B-
|
|
RED
|
RED/WHI
|
GRN/WHI
|
GRN
|
Resources
- Full Datasheet: 23HS26-2004H.pdf
Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!
| Electrical Specification | |
|---|---|
| Bipolar/Unipolar | Bipolar |
| Holding Torque (Ncm) | 145 |
| Holding Torque (oz.in) | 205.38 |
| Inductance(mH) | 6.9 |
| Phase Resistance(ohm) | 2.15 |
| Rated Current (A) | 2.0 |
| Step Angle(°) | 1.8 |
| Physical Specification | |
| Body Length(mm) | 65 |
| Frame Size(mm) | 57 x 57 |
| Lead Length(mm) | 310 |
| No. of Lead | 4 |
| Shaft Type | Hollow |
| Single Shaft/Dual Shaft | Dual Shaft |
| Weight(g) | 980 |
- Connectors: Molex, Harwin, Tyco/AMP, JST etc.
- Lead wires & cables: Special lengths, Protective hose
- Shaft: Round, D-Cut, Cross drilled, Key-Way, Thread or Hollow
- Winding: Resistance, Inductance, Rated Current, etc.
