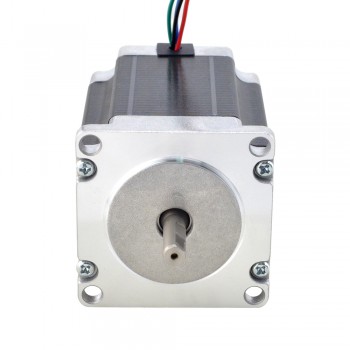

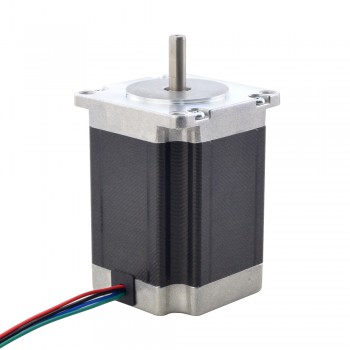

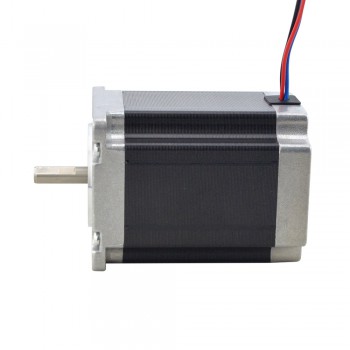

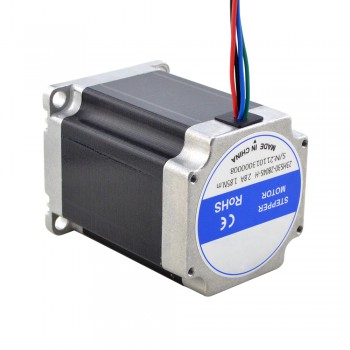

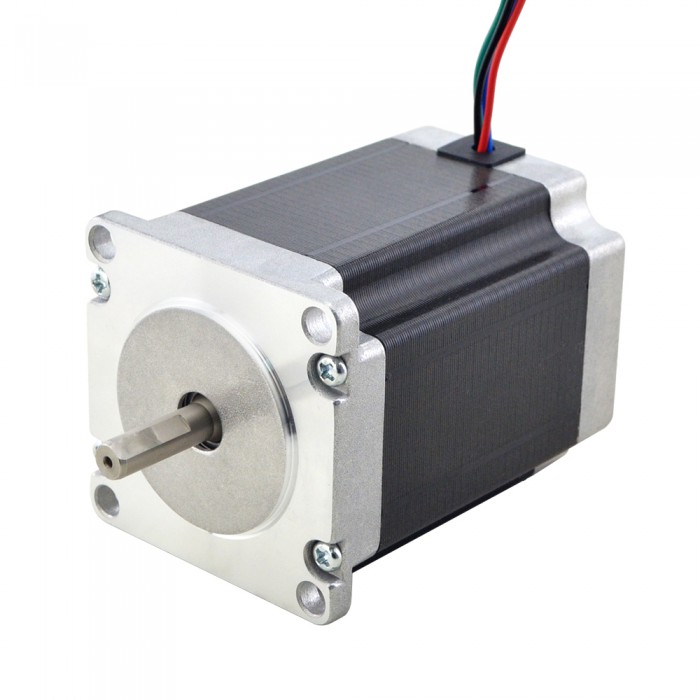

Nema 23 High Temp Resistant Stepper Motor 1.8 Deg 1.85Nm Insulation Class H 180C D-Cut Shaft
- Manuals and Documentation: Full Datasheet:
Our Price:$33.41
Nema 23 High Temp Stepper Motor 1.85Nm/256.9oz.in Insulation Class H 180C
This high‑temperature motor uses custom windings, bearings, and Class H insulation rated for 180°C.
Electrical Specification

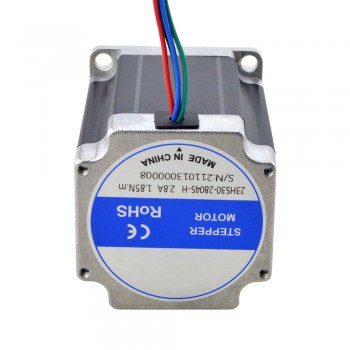

Manufacturer Part Number: 23HS30-2804S-H
Motor Type: Bipolar Stepper
Step Angle: 1.8deg
Holding Torque: 1.85Nm(261.98oz.in)
Rated Current/phase: 2.81A
Phase Resistance: 1.13ohms
Inductance: 4.8mH ± 20%(1KHz)
Insulation Class: H 180C(356F)
Physical Specification
Frame Size: 57 x 57mm
Body Length: 76.5mm
Shaft Diameter: Φ6.35mm
Shaft Length: 21mm
D-cut Length: 15mm
Number of Leads: 4
Lead Length: 500mm
Weight: 1000g
Connection
| A+ | A- | B+ | B- |
| BLK | GRN | RED | BLU |
| Electrical Specification | |
|---|---|
| Bipolar/Unipolar | Bipolar |
| Holding Torque (Ncm) | 185 |
| Holding Torque (oz.in) | 261.98 |
| Inductance(mH) | 4.8 |
| Phase Resistance(ohm) | 1.13 |
| Rated Current (A) | 2.81 |
| Step Angle(deg.) | 1.8 |
| Insulation Class | H 180C(356F) |
| Physical Specification | |
| Body Length(mm) | 76.5 |
| Frame Size(mm) | Nema 23 (57 x 57) |
| Lead Length(mm) | 500 |
| No. of Lead | 4 |
| Shaft Diameter(mm) | 6.35 |
| Shaft Length(mm) | 21 |
| Single Shaft/Dual Shaft | Single Shaft |
| Weight(g) | 1000 |
| Product Type | HYBRID STEPPER MOTOR |
| Output Shaft Type | D-Cut |
| IP Rating | 40 |
