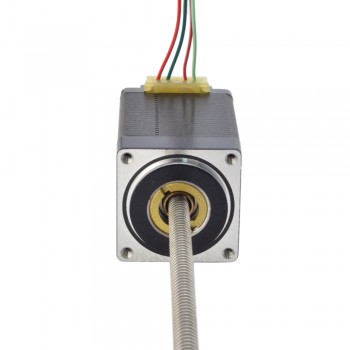

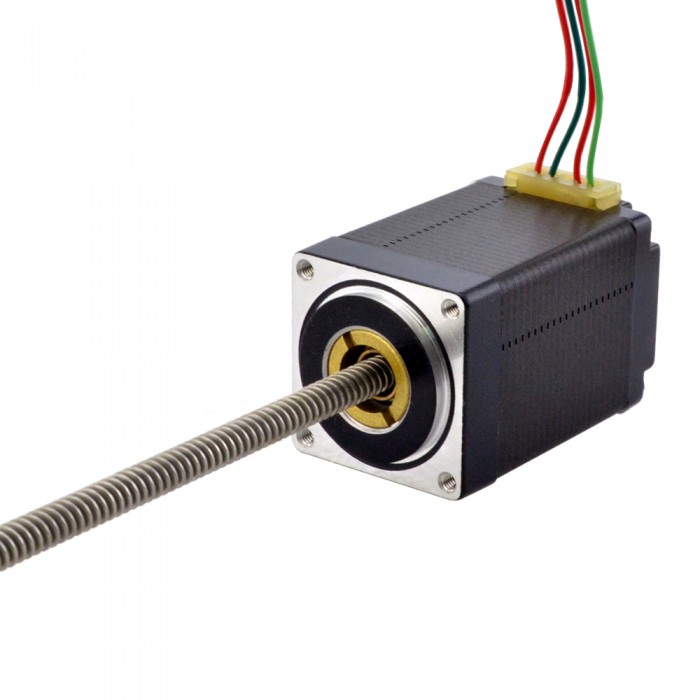

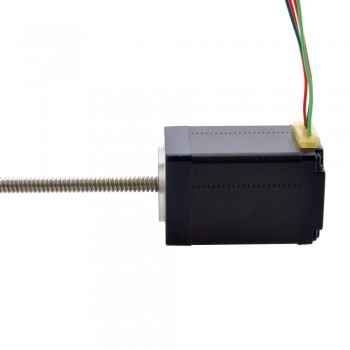

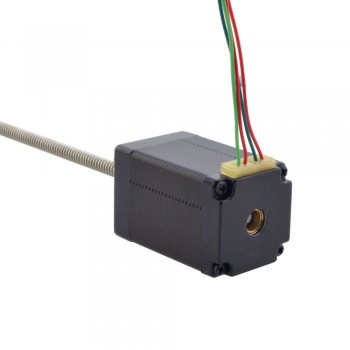

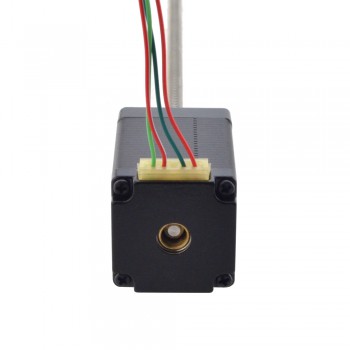

NEMA 11 Non-Captive Acme Lead Screw Linear Actuator 1.8 Deg 0.12Nm 1.0A Lead Revolution 2.54mm(0.1") Lead Screw 200mm

NEMA 11 Non-Captive Acme Lead Screw Linear Actuator 1.8 Deg 0.12Nm 1.0A Lead Revolution 2.54mm(0.1") Lead Screw 200mm
NO.:11N18S1004GD5-200RS
Post a review
Special Offer in Black Friday 2024:
  • 6% OFF on Total Order Amount!
  • Enjoy Discount at Checkout!
  • Valid Till December 3th, 2024
  • Note:No coupon code needed, please place order directly!
Our Price:$45.47
Quantity:- +

Bulk Price:
Qty.Range(unit) Price(unit) Discount
5 $43.20 5%
10 $42.29 7%
50 $40.92 10%
100 $39.56 13%
Add To Cart

NEMA 11 Non-Captive Acme Linear Stepper Motor 1.0A 46mm Stack Screw Lead 2.54mm(0.1") Lead Length 200mm

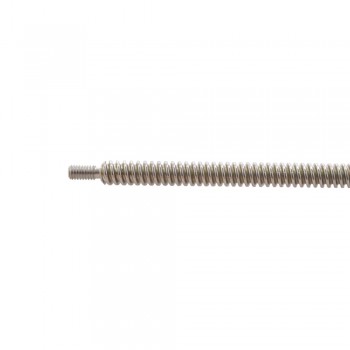

This model is a Nema 11 Non-Captive screw linear stepper motor with a 46mm body length, 1.8 degree step angle and 1A rated current. It is integrated with a Φ4.76mm(0.1874") diameter, 200mm(7.874") lead screw length and a POM screw nut, the linear travel is 3.74mm(0.1") per revolution.



Electrical Specification

Manufacturer Part Number: 11N18S1004GD5-200RS

Motor Type: Non-Captive

Step Angle: 1.8°

Holding Torque: 0.12Nm(16.99oz.in)

Rated Current/phase: 1A

Phase Resistance: 3.7ohms

Inductance: 3.7mH±20%(1KHz)



Physical Specification

Frame Size: 28 x 28mm

Body Length: 46mm

Lead Screw Length: 200mm(7.874")

Lead Screw Diameter: Φ4.76mm(0.1874")

Lead/Step: 0.0127mm(0.0005")

Lead Travel/Revolution: 3.74mm(0.1")

Number of Leads: 4

Number of Thread Starts: 2

Lead Length: 300mm



Connection

A+ A- B+ B-
Red Red/White Green Green/White



Resources

11N18S1004GD5-200RS_Full_Datasheet.pdf

11N18S1004GD5-200RS.STEP





Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!

Prev: NEMA 11 Non-Captive Acme Linear Stepper Motor Actuator 1.8 Deg 0.12Nm 1.0A Lead Revolution 10.16mm(0.4") Lead Screw 200mm
Next: NEMA 11 Non-Captive Acme Lead Screw Linear Actuator 1.0A Bipolar 1.8 Deg 0.12Nm Lead Revolution 5.08mm(0.2") Lead Screw 200mm
Electrical Specification
Bipolar/Unipolar Bipolar
Inductance(mH) 3.7
Phase Resistance(ohm) 3.7
Rated Current (A) 1.0
Step Angle(deg.) 1.8
Linear Motor Type Non-Captive
Physical Specification
Body Length(mm) 46
Frame Size(mm) Nema 11 (28 x 28)
Lead Length(mm) 300
Lead Screw Diameter(mm) 4.76
Lead Screw Length(mm) 200
No. of Lead 4
Lead Travel/Revolution(mm) 2.54
Lead Travel/Step(mm) 0.0127
IP Rating 40
