NEMA 11 Non-Captive Acme Linear Stepper Motor Actuator 1.8 Deg 0.06Nm 1.0A 32.2mm Stack Lead Revolution 5.08mm(0.2") Lead Screw 200mm

NEMA 11 Non-Captive Acme Linear Stepper Motor Actuator 1.8 Deg 0.06Nm 1.0A 32.2mm Stack Lead Revolution 5.08mm(0.2") Lead Screw 200mm
NO.:11N13S1004HD5-200RS
Post a review
Special Offer in October 2024:
  • $10 Off Over $150
  • $20 Off Over $300
  • $35 Off Over $500
  • $55 Off Over $800
  • $70 Off Over $1000
  • $100 Off Over $1500
  • Enjoy Discount at Checkout!
  • Valid Till October 15th, 2024
  • Note:No coupon code needed, please place order directly!
Our Price:$42.95
Quantity:- +

Bulk Price:
Qty.Range(unit) Price(unit) Discount
5 $40.80 5%
10 $39.94 7%
50 $38.66 10%
100 $37.37 13%
Add To Cart

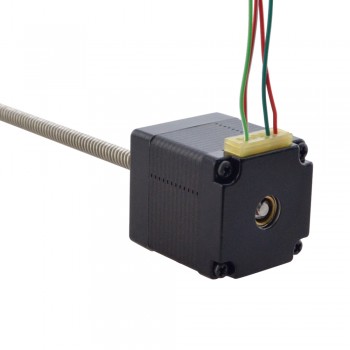

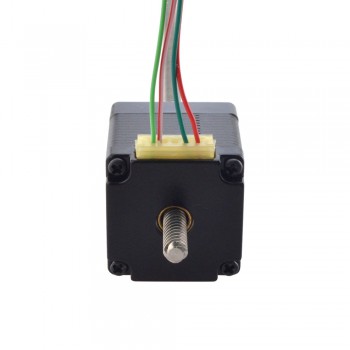

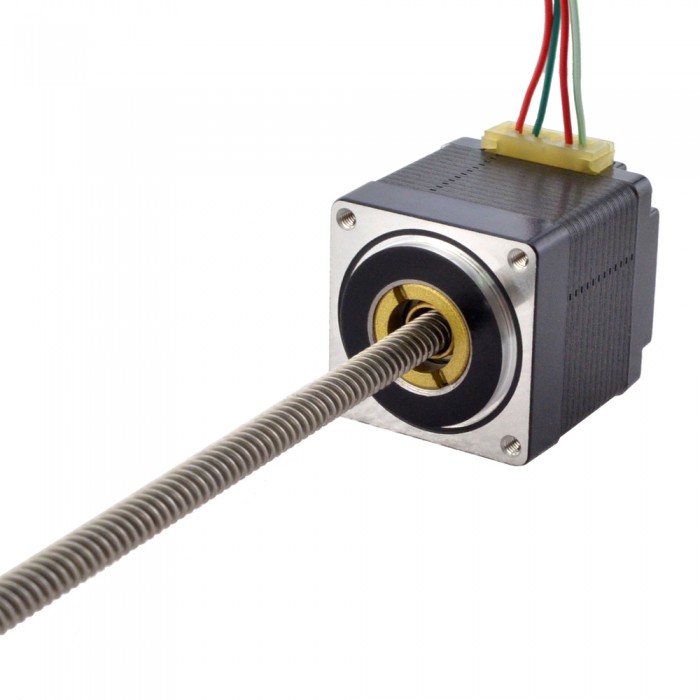

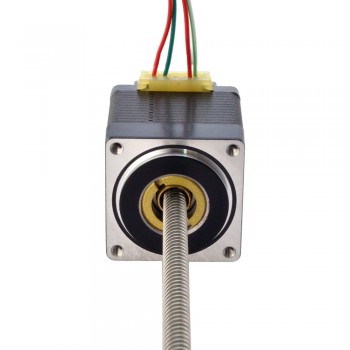

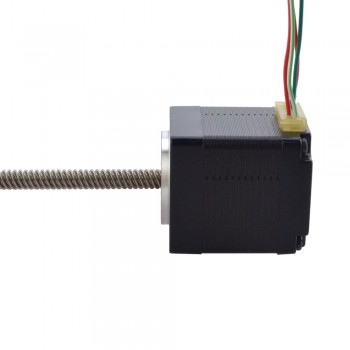

NEMA 11 Non-Captive Acme Linear Stepper Motor 1.0A 32.2mm Stack Screw Lead 5.08mm(0.2") Lead Length 200mm



This model is a Nema 11 Non-Captive screw linear stepper motor with a 32.2mm body length, 1.8 degree step angle and 1A rated current. It is integrated with a Φ4.76mm(0.1874") diameter, 200mm(7.874") lead screw length and a POM screw nut, the linear travel is 5.08mm(0.2") per revolution.



Electrical Specification

Manufacturer Part Number: 11N13S1004HD5-200RS

Motor Type: Non-Captive

Step Angle: 1.8°

Holding Torque: 0.06Nm(8.496oz.in)

Rated Current/phase: 1A

Phase Resistance: 2.1ohms

Inductance: 1.5mH±20%(1KHz)



Physical Specification

Frame Size: 28 x 28mm

Body Length: 32.2mm

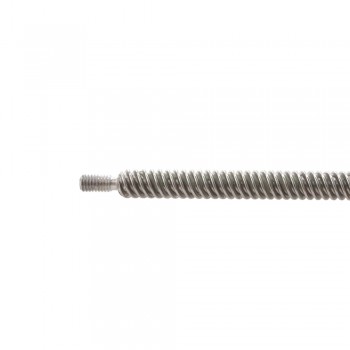

Lead Screw Length: 200mm(7.874")

Lead Screw Diameter: Φ4.76mm(0.1874")

Lead/Step: 0.0254mm(0.001")

Lead Travel/Revolution: 5.08mm(0.2")

Number of Leads: 4

Number of Thread Starts: 4

Lead Length: 300mm



Connection

A+ A- B+ B-
Red Red/White Green Green/White



Resources

11N13S1004HD5-200RS_Full_Datasheet.pdf

11N13S1004HD5-200RS_Thrust_Force_Curve.pdf

11N13S1004HD5-200RS.STEP





Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!

Prev: NEMA 11 Non-Captive Acme Linear Stepper Motor Actuator 1.8 Deg 0.06Nm 1.0A 32.2mm Stack Lead Revolution 2.54mm(0.1") Lead Screw 200mm
Next: NEMA 11 Non-Captive Acme Linear Stepper Motor Actuator 1.8 Deg 0.12Nm 1.0A Bipolar 1.8 DegLead Revolution 1.27mm(0.05") Lead Screw 200mm
Electrical Specification
Bipolar/Unipolar Bipolar
Inductance(mH) 1.5
Phase Resistance(ohm) 2.1
Rated Current (A) 1.0
Step Angle(deg.) 1.8
Linear Motor Type Non-Captive
Physical Specification
Body Length(mm) 32.2
Frame Size(mm) Nema 11 (28 x 28)
Lead Length(mm) 300
Lead Screw Diameter(mm) 4.76
Lead Screw Length(mm) 200
No. of Lead 4
Lead Travel/Revolution(mm) 5.08
Lead Travel/Step(mm) 0.0254
IP Rating 40
