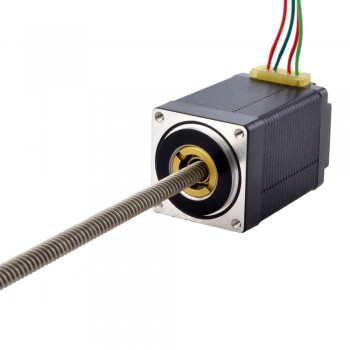

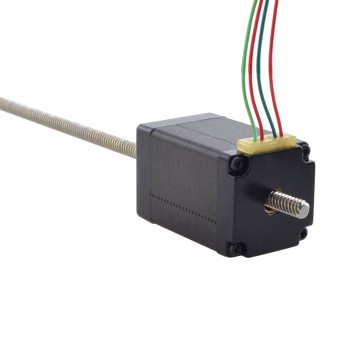

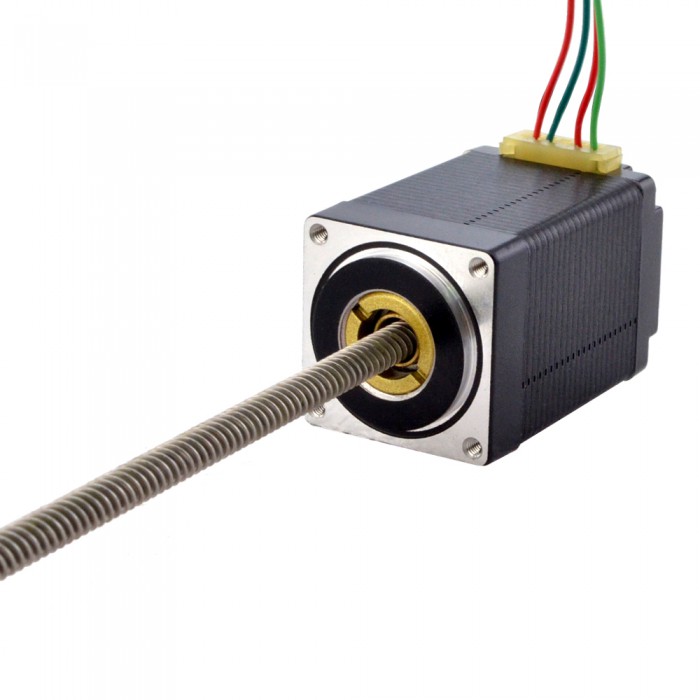

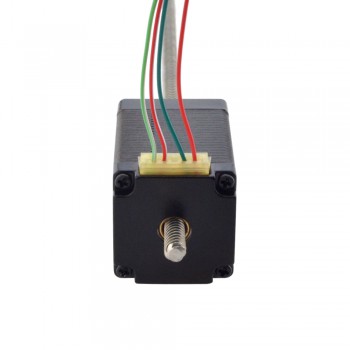

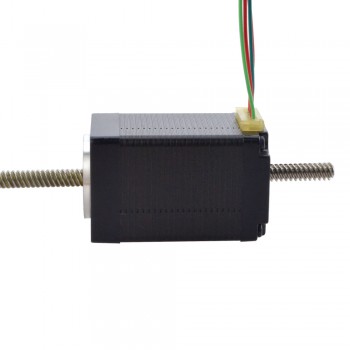

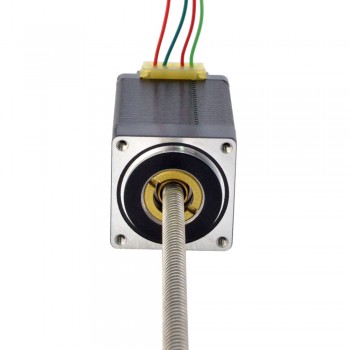

NEMA 11 Non-Captive Acme Lead Screw Linear Actuator 1.0A Bipolar 1.8 Deg 0.12Nm Lead Revolution 5.08mm(0.2") Lead Screw 200mm
-
Manuals and Documentation:
Our Price:$45.47
NEMA 11 Non-Captive Acme Linear Stepper Motor 1.0A 46mm Stack Screw Lead 5.08mm(0.2") Lead Length 200mm

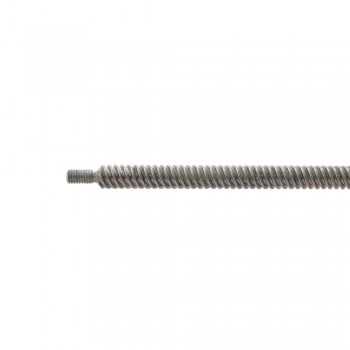

This NEMA 11 non‑captive linear stepper has a 46 mm body, 1.8° step, and 1 A rating. It features a 200 mm lead screw (4.76 mm dia.) with POM nut (5.08 mm/rev).
Electrical Specification
Manufacturer Part Number: 11N18S1004HD5-200RS
Motor Type: Non-Captive
Step Angle: 1.8°
Holding Torque: 0.12Nm(16.99oz.in)
Rated Current/phase: 1A
Phase Resistance: 3.7ohms
Inductance: 3.7mH±20%(1KHz)
Physical Specification
Frame Size: 28 x 28mm
Body Length: 46mm
Lead Screw Length: 200mm(7.874")
Lead Screw Diameter: Φ4.76mm(0.1874")
Lead/Step: 0.0254mm(0.001")
Lead Travel/Revolution: 5.08mm(0.2")
Number of Leads: 4
Number of Thread Starts: 4
Lead Length: 300mm
Connection
| A+ | A- | B+ | B- |
| Red | Red/White | Green | Green/White |
| Electrical Specification | |
|---|---|
| Bipolar/Unipolar | Bipolar |
| Inductance(mH) | 3.7 |
| Phase Resistance(ohm) | 3.7 |
| Rated Current (A) | 1.0 |
| Step Angle(deg.) | 1.8 |
| Linear Motor Type | Non-Captive |
| Physical Specification | |
| Body Length(mm) | 46 |
| Frame Size(mm) | Nema 11 (28 x 28) |
| Lead Length(mm) | 300 |
| Lead Screw Diameter(mm) | 4.76 |
| Lead Screw Length(mm) | 200 |
| No. of Lead | 4 |
| Lead Travel/Revolution(mm) | 5.08 |
| Lead Travel/Step(mm) | 0.0254 |
| IP Rating | 40 |
