NEMA 23 External Ball Screw Linear Stepper Motor 4.0A 76mm Stack Screw Lead 5mm(0.1969") Lead Length 200mm

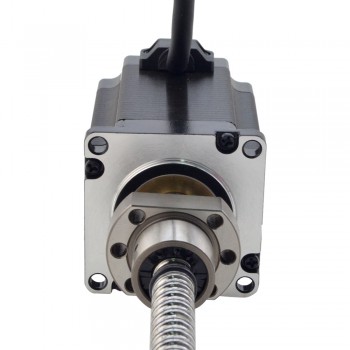

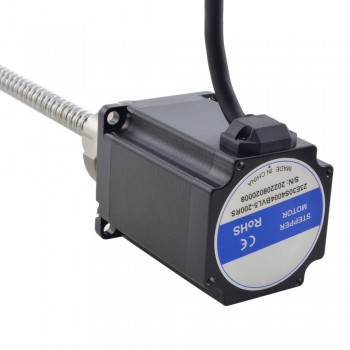

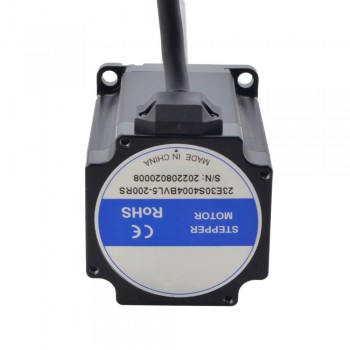

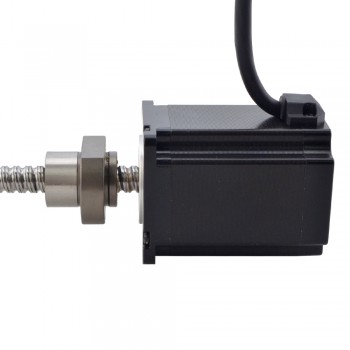

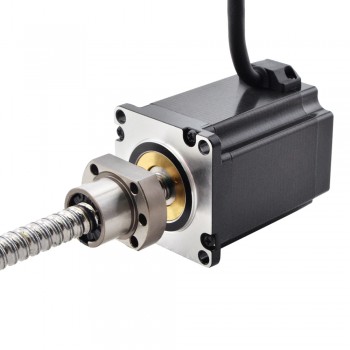

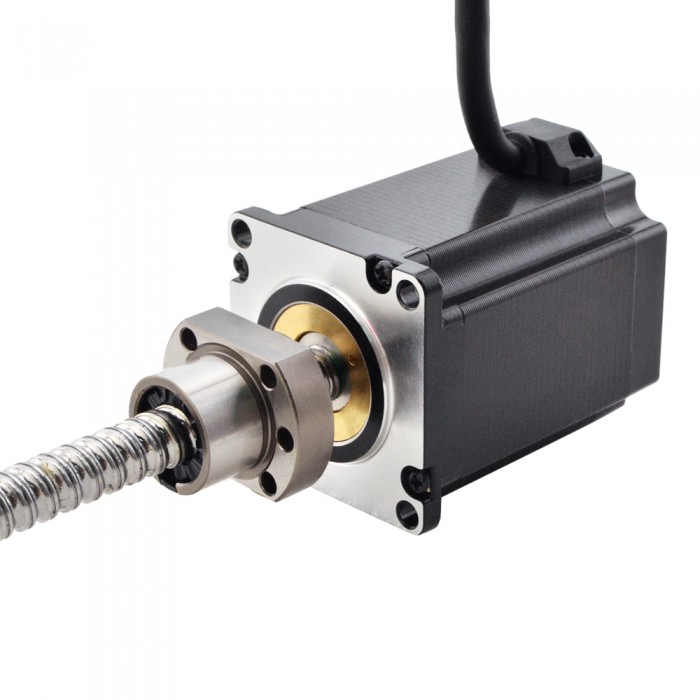

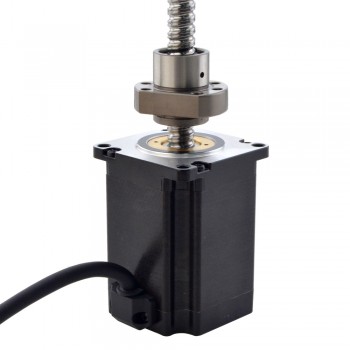

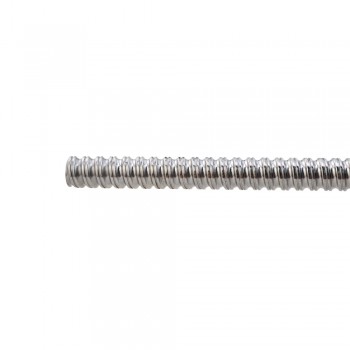

This model is a Nema 23 ball screw linear stepper motor with a 75mm body length, 1.8 degree step angle and 4A rated current. It is integrated with a 12mm(0.4724") diameter 200mm(7.8740") length ball screw length and a steel screw nut, the linear travel is 5mm(0.1969") per revolution.
Electrical Specification
Manufacturer Part Number: 23E30S4004BVL5-200RS
Motor Type: External (Ball Screw)
Step Angle: 1.8°
Holding Torque: 1.8Nm(254.90oz.in)
Rated Current/phase: 4A
Phase Resistance: 0.9ohms
Inductance: 4.5mH±20%(1KHz)
Accuracy Grade: C7
Physical Specification
Frame Size: 57 x 57mm
Body Length: 75mm
Lead Screw Length: 200mm(7.8740")
Lead Screw Diameter: Φ12mm(0.4724")
Lead/Step: 0.025mm(0.0009843")
Lead Travel/Revolution: 5mm(0.1969")
Number of Leads: 4
Lead Length: 500mm
Connection
| A+ | A- | B+ | B- |
| Red | Red/White | Green | Green/White |
Resources
23E30S4004BVL5-200RS_Full_Datasheet.pdf
23E30S4004BVL5-200RS_Thrust_Force_Curve.pdf
Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!
| Electrical Specification | |
|---|---|
| Bipolar/Unipolar | Bipolar |
| Inductance(mH) | 4.5 |
| Phase Resistance(ohm) | 0.9 |
| Rated Current (A) | 4.0 |
| Step Angle(deg.) | 1.8 |
| Linear Motor Type | External(Ball Screw) |
| Physical Specification | |
| Body Length(mm) | 75 |
| Frame Size(mm) | Nema 23 (57 x 57) |
| Lead Length(mm) | 500 |
| Lead Screw Diameter(mm) | 12 |
| Lead Screw Length(mm) | 200 |
| No. of Lead | 4 |
| Lead Travel/Revolution(mm) | 5 |
| Lead Travel/Step(mm) | 0.025 |
| IP Rating | 40 |
