NEMA 11 External Acme Lead Screw Linear Motor Actuator 1.0A 32.2mm Stack Screw Lead 2.54mm(0.1") Lead Length 150mm

NEMA 11 External Acme Lead Screw Linear Motor Actuator 1.0A 32.2mm Stack Screw Lead 2.54mm(0.1") Lead Length 150mm
NO.:11E13S1004GD5-150RS
Review: Post a review
Black Friday Special Offer 2022:
  • 6% OFF on Total Order Amount!
  • Enjoy Discount at Checkout!
  • Valid Till November 30th, 2022
  • Note:No coupon code needed, please place order directly!
Latest price:$64.42
Buy It Now:$42.95
Quantity:- +

Bulk Price:
Qty.Range(unit) Price(unit) Discount
5 $41.56 3%
10 $40.18 6%
50 $38.79 10%
100 $37.41 13%
Add To Cart

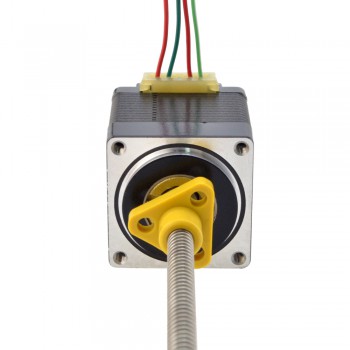

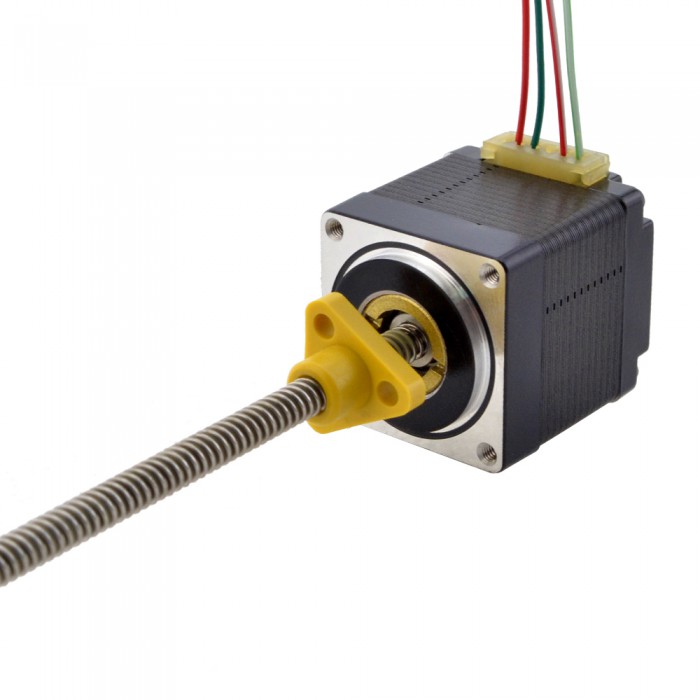

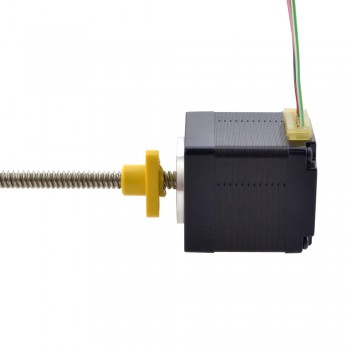

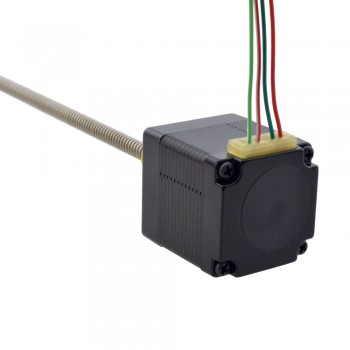

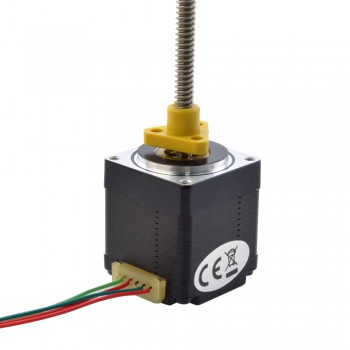

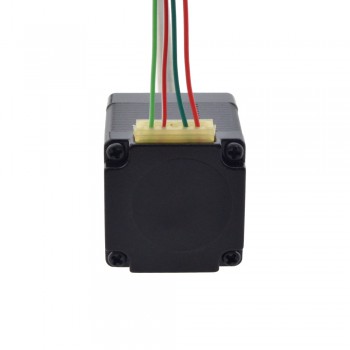

NEMA 11 External Acme Linear Stepper Motor 1.0A 32.2mm Stack Screw Lead 2.54mm(0.1") Lead Length 150mm

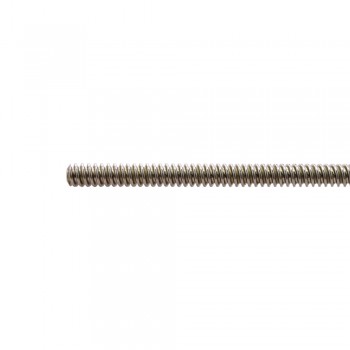

This model is a Nema 11 ACME screw linear stepper motor with a 32.2mm body length, 1.8 degree step angle and 1A rated current. It is integrated with a Φ4.76mm(0.1874") diameter, 150mm(5.9055") ACME screw length and a POM screw nut, the linear travel is 2.54mm(0.1") per revolution. It has the characteristics of high performance, long life, low noise and high efficiency.



Electrical Specification

Manufacturer Part Number: 11E13S1004GD5-150RS

Motor Type: External(ACME)

Step Angle: 1.8°

Holding Torque: 0.05Nm(7.08oz.in)

Rated Current/phase: 1A

Phase Resistance: 2.1ohms

Inductance: 1.5mH±20%(1KHz)



Physical Specification

Frame Size: 28 x 28mm

Body Length: 32.2mm

Lead Screw Length: 150mm(5.9055")

Lead Screw Diameter: Φ4.76mm(0.1874")

Lead/Step: 0.0127mm(0.0005")

Lead Travel/Revolution: 2.54mm(0.1")

Number of Leads: 4

Number of Thread Starts: 2

Lead Length: 300mm



Connection

A+ A- B+ B-
Red Red/White Green Green/White



Resources



Lead Screw End Machining



Anti-Backlash Nut



OYOSTEPPER provides anti-backlash nut for external lead screw linear actuator (except Size 34) and non-captive lead screw linear actuator (except size 24 and 34).

There should be a nominal backlash between lead screw and OYOSTEPPER standard plastic nut after millions of cycles. OYOSTEPPER guarantees few millions of cycles but physical backlash can be increased. To reduce or eliminate backlash, OYOSTEPPER provides spring pressure structure of anti-backlash nut.



Encoders



According to application requirements, customer can easily choose encoders via index output or non-index type and thru output method as single ended or differential output.

Also various resolution can be chosen freely for easier and precise positioning.

All OYOSTEPPER standard encoders are optical and incremental. When you choose encoder, please carefully look into options especially size, resolution, index and output method.



Brakes



Especially Vertical applications or holding motors from sudden power-off status, OYOSTEPPER standard power-off brakes for NEMA14, 17, 23, 24 and 34 sizes will be helpful to reduce concern of customers.



Wiring, Cabling and Connectors



Flying wire leads or connectors

Twisting wire leads

Heat shrink or expandable tubing

Cable housings



Teflon Coated Screw



If customer's applications require greaseless screw and nut combination, OYOSTEPPER offers teflon coated lead screw of stepper linear actuator.

Teflon coated lead screw stepper linear actuator enables it's longer life cycle and better thrust force generation against conventional SUS lead screw.

Teflon coating can be applied in the whole range of lead screw options in OYOSTEPPER and all types of linear actuators such as External, Non-Captive, and Captive.

In addition, Anti-backlash nut also can be combined with teflon coated screw too.
