NEMA 11 External Acme Linear Stepper Motor Actuator Bipolar 1.0A 1.8 Deg 0.12Nm Lead Revolution 2.54mm(0.1") Lead Screw 150mm
NEMA 11 External Acme Linear Stepper Motor 1.0A 46mm Stack Screw Lead 2.54mm(0.1") Lead Length 150mm

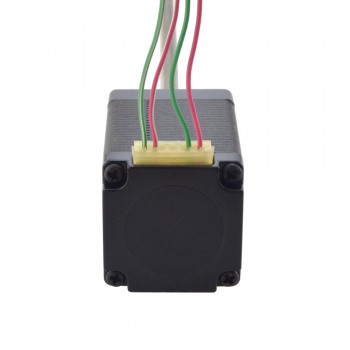

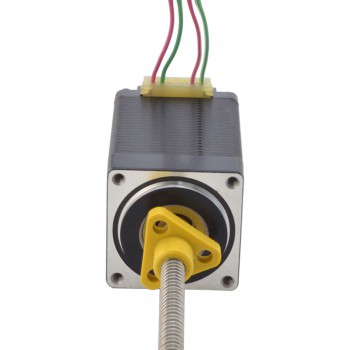

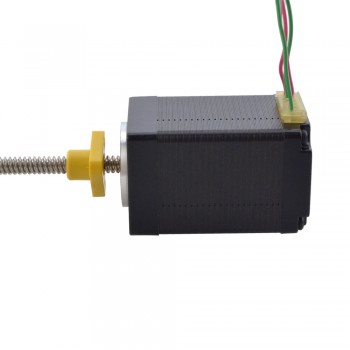

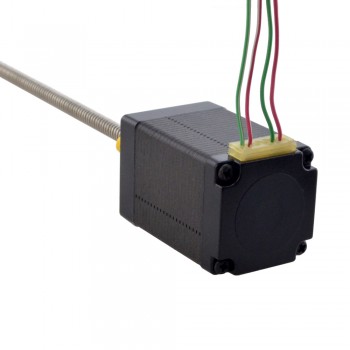

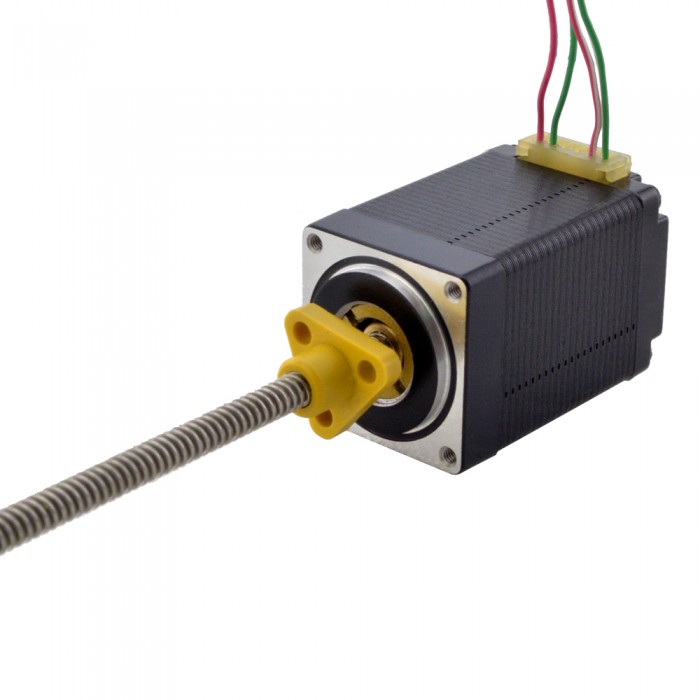

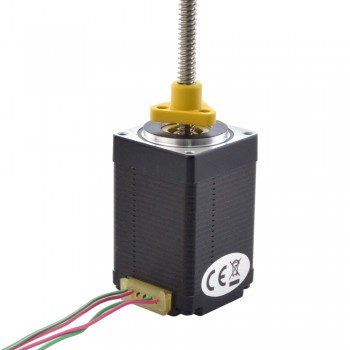

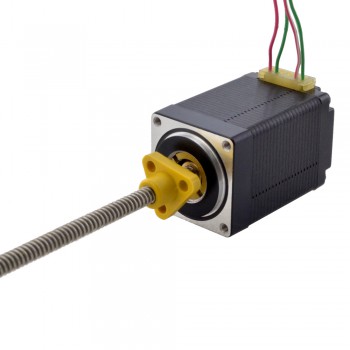

This model is a Nema 11 ACME screw linear stepper motor with a 46mm body length, 1.8 degree step angle and 1A rated current. It is integrated with a Φ4.76mm(0.1874") diameter, 150mm(5.9055") ACME screw length and a POM screw nut, the linear travel is 2.54mm(0.1") per revolution.
Electrical Specification
Manufacturer Part Number: 11E18S1004GD5-150RS
Motor Type: External(ACME)
Step Angle: 1.8°
Holding Torque: 0.12Nm(16.99oz.in)
Rated Current/phase: 1A
Phase Resistance: 3.7ohms
Inductance: 3.7mH±20%(1KHz)
Physical Specification
Frame Size: 28 x 28mm
Body Length: 46mm

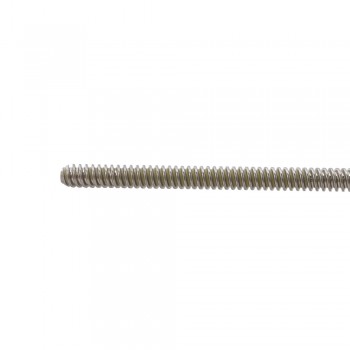

Lead Screw Length: 150mm(5.9055")
Lead Screw Diameter: Φ4.76mm(0.1874")
Lead/Step: 0.0127mm(0.0005")
Lead Travel/Revolution: 2.54mm(0.1")
Number of Leads: 4
Number of Thread Starts: 2
Lead Length: 300mm
Connection
| A+ | A- | B+ | B- |
| Red | Red/White | Green | Green/White |
Resources
11E18S1004GD5-150RS_Full_Datasheet.pdf
Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!
| Electrical Specification | |
|---|---|
| Bipolar/Unipolar | Bipolar |
| Inductance(mH) | 3.7 |
| Phase Resistance(ohm) | 3.7 |
| Rated Current (A) | 1.0 |
| Step Angle(deg.) | 1.8 |
| Linear Motor Type | External(Acme) |
| Physical Specification | |
| Body Length(mm) | 46 |
| Frame Size(mm) | Nema 11 (28 x 28) |
| Lead Length(mm) | 300 |
| Lead Screw Diameter(mm) | 4.76 |
| Lead Screw Length(mm) | 150 |
| No. of Lead | 4 |
| Lead Travel/Revolution(mm) | 2.54 |
| Lead Travel/Step(mm) | 0.0127 |
| IP Rating | 40 |
