NEMA 34 External Ball Screw Linear Stepper Motor Actuator 1.8 Deg 4.5Nm(637.25oz.in) 5.5A 76mm Stack Lead Revolution 10mm(0.3937") Lead Screw 200mm
NEMA 34 External Ball Screw Linear Stepper Motor 5.5A 76mm Stack Screw Lead 10mm(0.3937") Lead Length 200mm

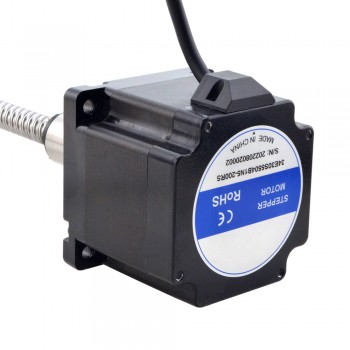

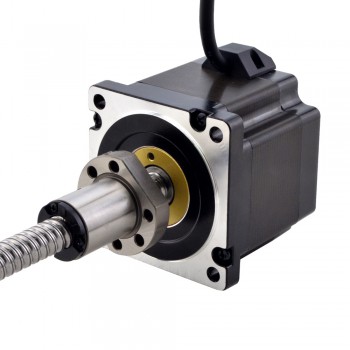

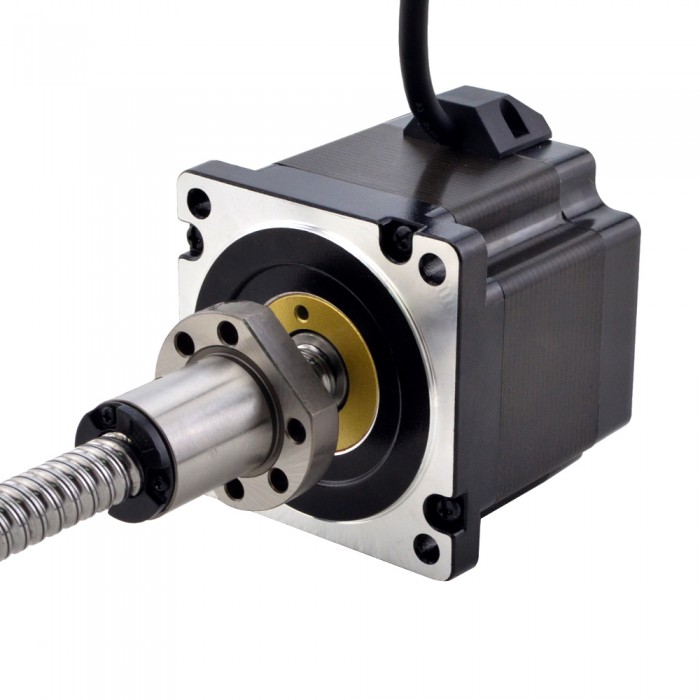

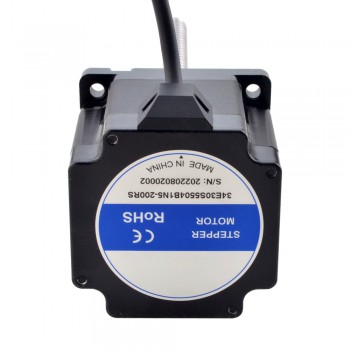

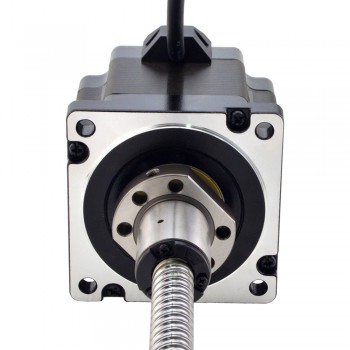

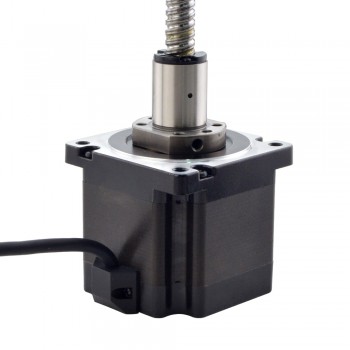

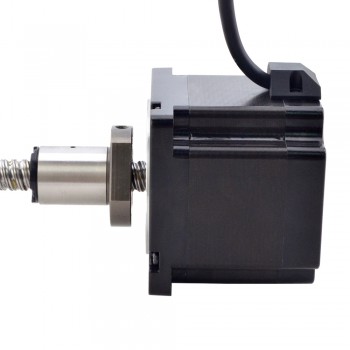

This model is a Nema 34 ball screw linear stepper motor with a 76mm body length, 1.8 degree step angle and 5.5A rated current. It is integrated with a 16mm(6.2992") diameter 200mm(7.8740") length ball screw length and a steel screw nut, the linear travel is 10mm(0.3937") per revolution.
Electrical Specification
Manufacturer Part Number: 34E30S5504B1N5-200RS
Motor Type: External (Ball Screw)
Step Angle: 1.8°
Holding Torque: 4.5Nm(637.25oz.in)
Rated Current/phase: 5.5A
Phase Resistance: 0.5ohms
Inductance: 4.5mH±20%(1KHz)
Accuracy Grade: C7
Physical Specification
Frame Size: 86 x 86mm
Body Length: 76mm
Lead Screw Length: 200mm(7.8740")
Lead Screw Diameter: Φ16mm(6.2992")
Lead/Step: 0.05mm(0.001969")
Lead Travel/Revolution: 10mm(0.3937")
Number of Leads: 4
Lead Length: 500mm
Connection
A+ | A- | B+ | B- |
Red | Red/White | Green | Green/White |
Resources
34E30S5504B1N5-200RS_Full_Datasheet.pdf
Lead Screw End Machining
Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!
Electrical Specification | |
---|---|
Bipolar/Unipolar | Bipolar |
Inductance(mH) | 4.5 |
Phase Resistance(ohm) | 0.5 |
Rated Current (A) | 5.5 |
Step Angle(deg.) | 1.8 |
Linear Motor Type | External(Ball Screw) |
Physical Specification | |
Body Length(mm) | 76 |
Frame Size(mm) | Nema 34 (86 x 86) |
Lead Length(mm) | 500 |
Lead Screw Diameter(mm) | 16 |
Lead Screw Length(mm) | 200 |
No. of Lead | 4 |
Lead Travel/Revolution(mm) | 10 |
Lead Travel/Step(mm) | 0.05 |
IP Rating | 40 |
