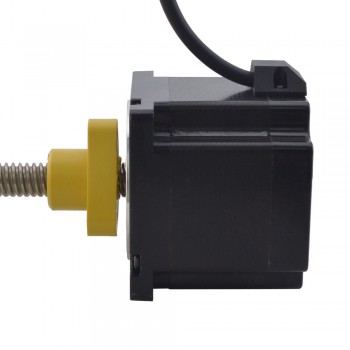

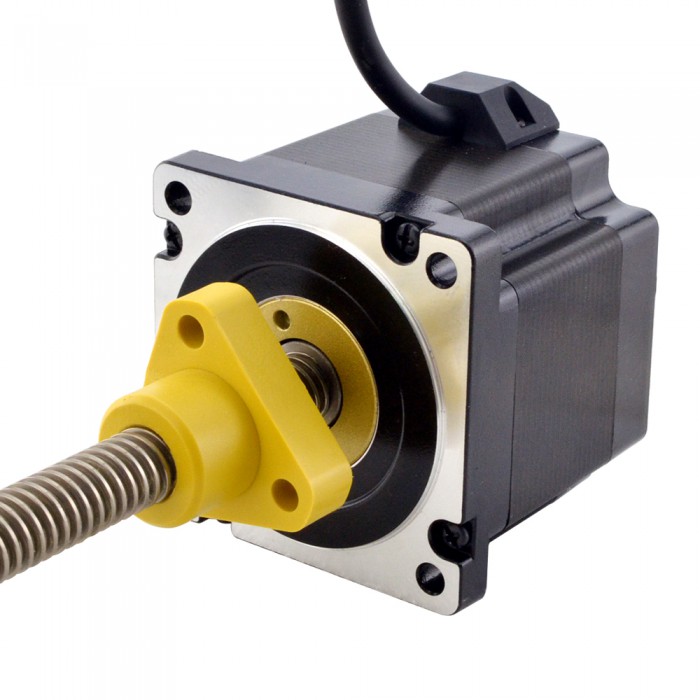

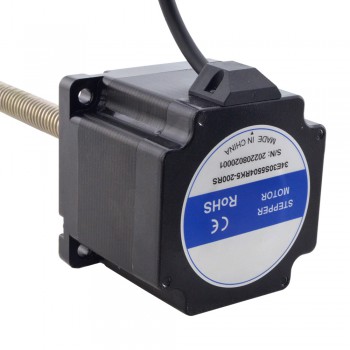

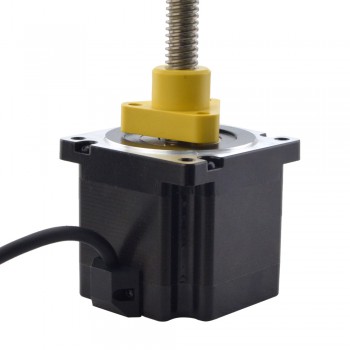

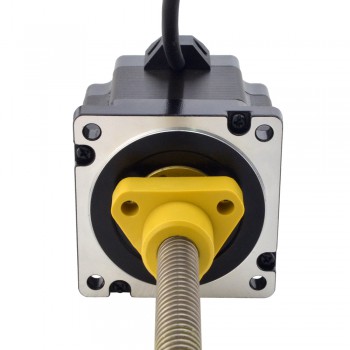

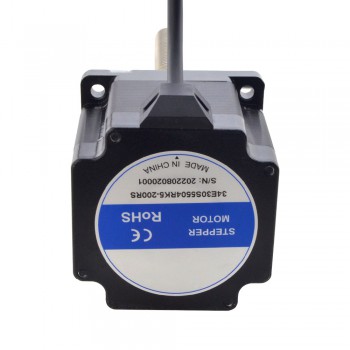

NEMA 34 External Acme Linear Stepper Motor Actuator 1.8 Deg 4.5Nm(637.38oz.in) 5.5A 75mm Stack Lead Revolution 6.35mm(0.25") Lead Screw 200mm
NEMA 34 External Acme Linear Stepper Motor 5.5A 75mm Stack Screw Lead 6.35mm(0.25") Lead Length 200mm
This model is a Nema 34 ACME screw linear stepper motor with a 76mm body length, 1.8 degree step angle and 5.5A rated current. It is integrated with a Φ15.875mm(0.625") diameter, 200mm(7.8740") ACME screw length and a POM screw nut, the linear travel is 6.35mm(0.25") per revolution.
Electrical Specification
Manufacturer Part Number: 34E30S5504RK5-200RS
Motor Type: External(ACME)
Step Angle: 1.8°
Holding Torque: 4.5Nm(637.38oz.in)
Rated Current/phase: 5.5A
Phase Resistance: 0.5ohms
Inductance: 4.5mH±20%(1KHz)
Physical Specification
Frame Size: 76 x 76mm
Body Length: 76mm
Lead Screw Length: 200mm(7.8740")
Lead Screw Diameter: Φ15.875mm(0.625")
Lead/Step: 0.03175mm(0.00125")
Lead Travel/Revolution: 6.35mm(0.25")
Number of Leads: 4
Number of Thread Starts: 2
Lead Length: 500mm
Connection
| A+ | A- | B+ | B- |
| Red | Red/White | Green | Green/White |

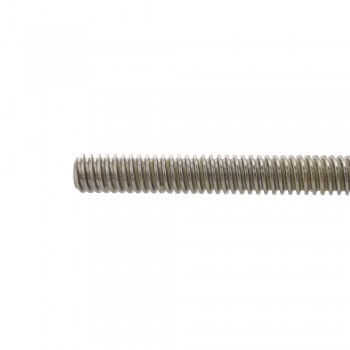

Lead Screw End Machining
.jpg "NEMA 34 External Acme Linear Stepper Motor Actuator 1.8 Deg 4.5Nm(637.38oz.in) 5.5A 75mm Stack Lead Revolution 6.35mm(0.25")
Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!
| Electrical Specification | |
|---|---|
| Bipolar/Unipolar | Bipolar |
| Inductance(mH) | 4.5 |
| Phase Resistance(ohm) | 0.5 |
| Rated Current (A) | 5.5 |
| Step Angle(deg.) | 1.8 |
| Linear Motor Type | External(Acme) |
| Physical Specification | |
| Body Length(mm) | 76 |
| Frame Size(mm) | Nema 34 (76 x 76) |
| Lead Length(mm) | 500 |
| Lead Screw Diameter(mm) | 15.875 |
| Lead Screw Length(mm) | 200 |
| No. of Lead | 4 |
| Lead Travel/Revolution(mm) | 6.35 |
| Lead Travel/Step(mm) | 0.03175 |
| IP Rating | 40 |
