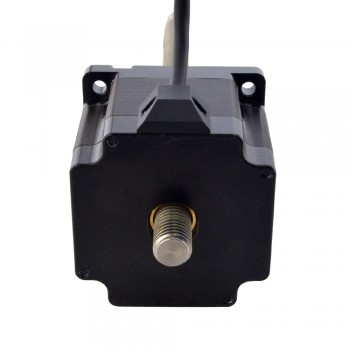

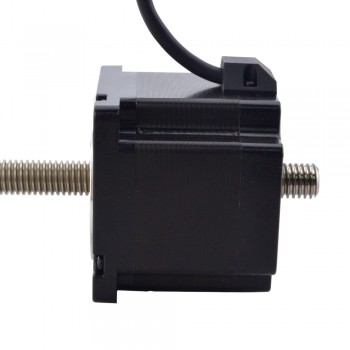

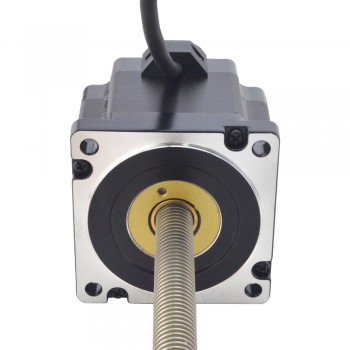

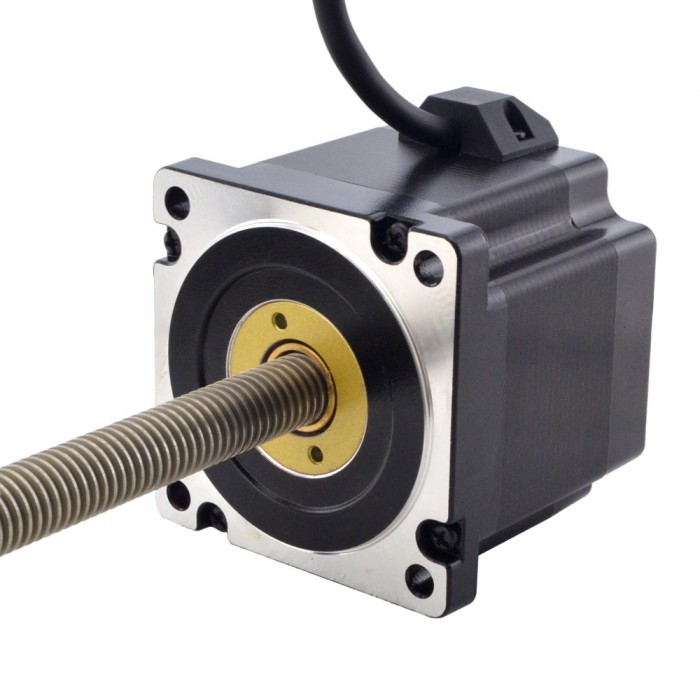

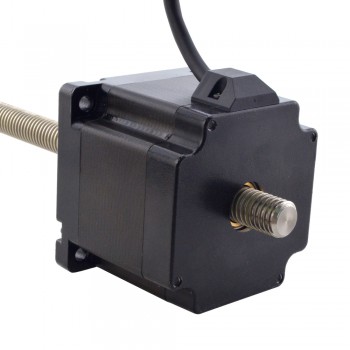

NEMA 34 Non-Captive Acme Linear Stepper Motor Actuator 1.8 Deg 5.5A 4.5Nm 75mm Stack Lead Revolution 2.54mm(0.1") Lead Screw 300mm
NEMA 34 Non-Captive Acme Linear Stepper Motor 5.5A 75mm Stack Screw Lead 2.54mm(0.1") Lead Length 300mm
This NEMA 34 non‑captive linear stepper has a 76 mm body, 1.8° step, and 5.5 A rating. It features a 300 mm, 15.875 mm lead screw with POM nut (2.54 mm/rev).
Electrical Specification
Manufacturer Part Number: 34N30S5504GK5-300RS
Motor Type: Non-Captive
Step Angle: 1.8°
Holding Torque: 4.5Nm(637.38oz.in)
Rated Current/phase: 5.5A
Phase Resistance: 0.5ohms
Inductance: 4.5mH±20%(1KHz)
Physical Specification
Frame Size: 76 x 76mm
Body Length: 76mm
Lead Screw Length: 300mm(11.811")
Lead Screw Diameter: Φ15.875mm(0.625")
Lead/Step: 0.0127mm(0.0005")
Lead Travel/Revolution: 2.54mm(0.1")
Number of Leads: 4
Number of Thread Starts: 2
Lead Length: 500mm
Connection
| A+ | A- | B+ | B- |
| Red | Red/White | Green | Green/White |

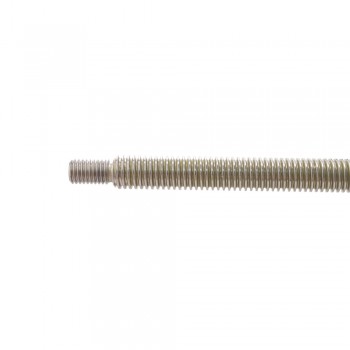

Lead Screw End Machining
.jpg "NEMA 34 Non-Captive Acme Linear Stepper Motor Actuator 1.8 Deg 5.5A 4.5Nm 75mm Stack Lead Revolution 2.54mm(0.1\") Lead Screw 300mm")
| Electrical Specification | |
|---|---|
| Bipolar/Unipolar | Bipolar |
| Inductance(mH) | 4.5 |
| Phase Resistance(ohm) | 0.5 |
| Rated Current (A) | 5.5 |
| Step Angle(deg.) | 1.8 |
| Linear Motor Type | Non-Captive |
| Physical Specification | |
| Body Length(mm) | 76 |
| Frame Size(mm) | Nema 34 (76 x 76) |
| Lead Length(mm) | 500 |
| Lead Screw Diameter(mm) | 15.875 |
| Lead Screw Length(mm) | 250 |
| No. of Lead | 4 |
| Lead Travel/Revolution(mm) | 2.54 |
| Lead Travel/Step(mm) | 0.0127 |
| IP Rating | 40 |
