Nema 17 Non-captive Linear Stepper Motor Bipolar 1.8 Deg 2.6A 2.33V 4 Wires Lead Screw 250mm

NO.:17LS19-2604J-250N
Post a review

Special Offer in December 2023:

$10 Off Over $150
$20 Off Over $300
$35 Off Over $500
$55 Off Over $800
$70 Off Over $1000
$100 Off Over $1500
Enjoy Discount at Checkout!
Valid Till December 7th, 2023
Note:No coupon code needed, please place order directly!

Our Price:$92.11

Quantity:- +

Bulk Price:

Qty.Range(unit)	Price(unit)	Discount
5	$87.50	5%
10	$85.66	7%
50	$82.90	10%
100	$80.14	13%

Affiliate Link

Description Specification Custom Options Review

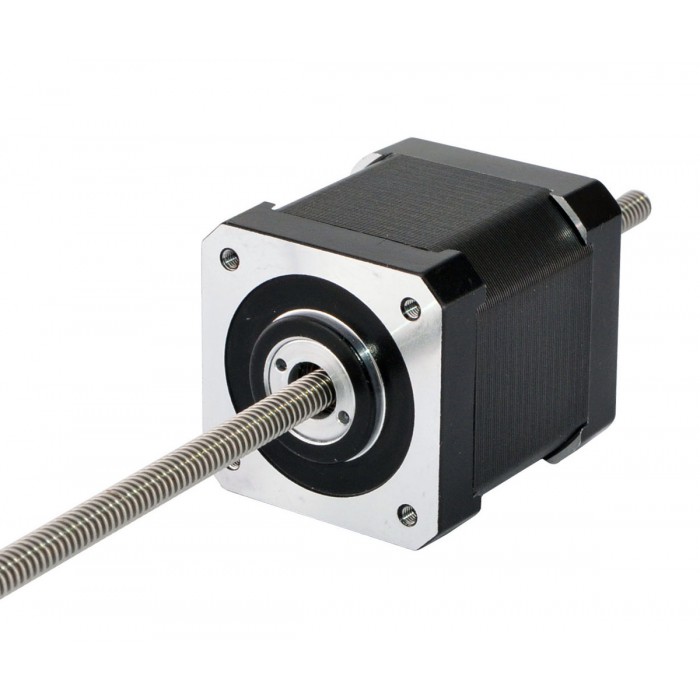

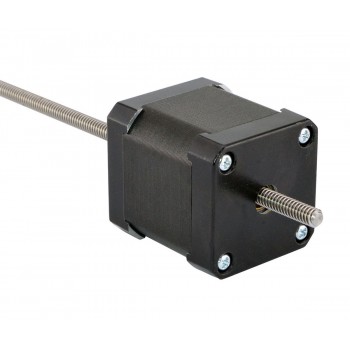

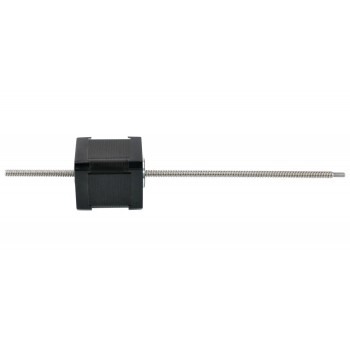

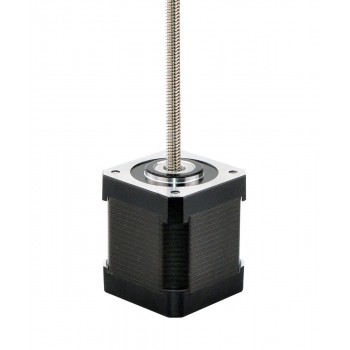

This model is almost exactly same as Haydon Kerk 43000 series size 17 double stack non-captive stepper motor linear actuator. The motor part is 48mm body 2.6 degree 2.6A Nema 17 stepper motor, and it works with a 5.54mm (0.2181") diameter 250mm (9.8425") length lead screw, the linear travel is 2.438mm (0.096") per revolution.

Electrical Specification

Manufacturer Part Number: 17LS19-2604J-250N
Motor Type: Non-captive Linear Stepper
Step Angle: 1.8°
Minimal Thrust: 252N (300pps)
Rated Current/phase: 2.6A
Phase Resistance: 0.9ohms
Voltage: 2.33V
Inductance: 1.33mH±20%(1KHz)

Physical Specification

Frame Size: 42 x 42mm
Body Length: 48mm
Lead Screw Length: 250mm(9.8425")
Lead Screw Diameter: Φ5.54mm(0.2181")
Lead/Step: 0.012192mm(0.00048" )
Lead Travel/Revolution: 2.438mm(0.096")
Number of Leads: 4
Lead Length: 300mm
Weight : 352g

Connection

A+	A-	B+	B-
Red	Red/White	Green/White	Green

Resources

Full Datasheet: 17LS19-2604J-250N.pdf

Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!

Prev: Nema 17 Non-captive Linear Stepper Motor Actuator Bipolar 1.8 Deg 2.6A 2.33V 4 Wires Lead Screw 250mm
Next: Nema 17 Non-captive Linear Stepper Motor Bipolar 1.8 Deg 2.6A 2.33V 4 Wires Lead Screw 250mm

Electrical Specification
Bipolar/Unipolar	Bipolar
Inductance(mH)	1.33
Minimal Thrust(N)	252
Motor Type	Non-Captive
Phase Resistance(ohm)	0.9
Rated Current (A)	2.6
Step Angle(°)	1.8
Physical Specification
Body Length(mm)	47.75
Lead Screw Diameter(mm)	5.54
Lead Screw Length(mm)	250
Lead Revolution(mm)	2.4384
Linear Travel / Step(mm)	0.012192
No. of Lead	4
Lead Length(mm)	300
Frame Size(mm)	Nema 17 (42 x 42)
