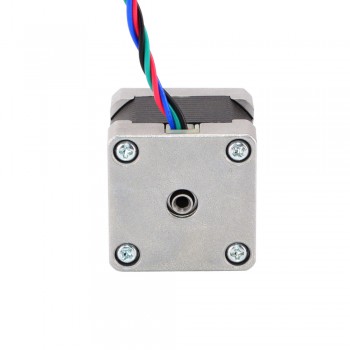

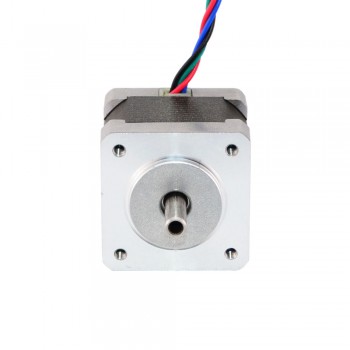

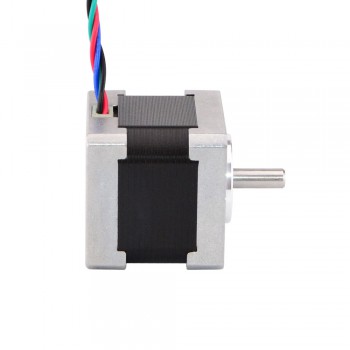

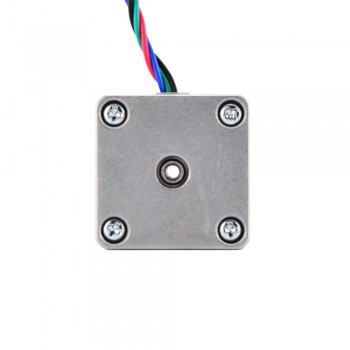

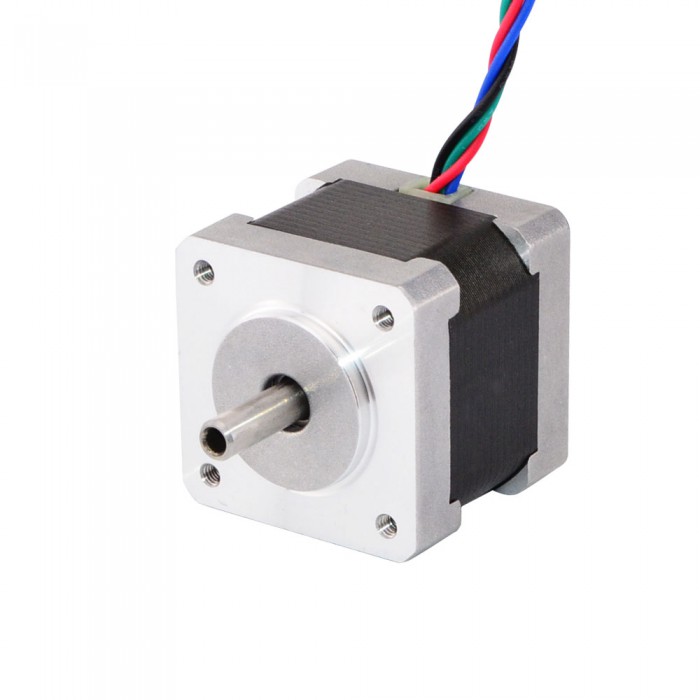

Nema 14 Stepper Motor High Torque Hollow Shaft Bipolar 18Ncm (25.5oz.in) 0.8A 35x35x34mm

Nema 14 Stepper Motor High Torque Hollow Shaft Bipolar 18Ncm (25.5oz.in) 0.8A 35x35x34mm
NO.:14HS13-0804SH
Review: Post a review
Our Price:$20.98
Quantity:- +

Bulk Price:
Qty.Range(unit) Price(unit) Discount
5 $19.93 5%
10 $19.51 7%
50 $18.88 10%
100 $18.25 13%
Add To Cart

This bipolar Nema 14 stepper motor with a hollow shaft. The shaft with 5mm OD and 3mm ID, It has 4 wires, each phase draws 0.8A at 5.4V, with holding torque 18Ncm (25.5oz.in).

Electrical Specification

  • Manufacturer Part Number: 14HS13-0804SH
  • Motor Type: Bipolar Stepper
  • Step Angle: 1.8 deg
  • Holding Torque: 18Ncm(25.5oz.in)
  • Rated Current/phase: 0.8A
  • Voltage: 5.4V
  • Phase Resistance: 6.8ohms
  • Inductance : 10mH ± 20%(1KHz)

Physical Specification

  • Frame Size: 35 x 35mm
  • Body Length: 34mm
  • Shaft OD: Φ5mm
  • Shaft ID: Φ3mm
  • Shaft Length: 15mm
  • Number of Leads: 4
  • Lead Length: 400mm
  • Weight: 190g

Connection

A+
A-
B+
B-
Black
Green
Red
Blue

Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!

Prev: Dual Shaft Nema 42 CNC High Torque Stepper Motor 30Nm (4248oz.in) 8A 110x201mm 4 Wires
Next: DM542T Digital Stepper Driver 1.0-4.2A 20-50VDC for Nema 17, Nema23, Nema 24 Stepper Motor
Electrical Specification
Bipolar/Unipolar Bipolar
Holding Torque (Ncm) 18
Holding Torque (oz.in) 25.5
Inductance(mH) 10
Phase Resistance(ohm) 6.8
Rated Current (A) 0.8
Step Angle(°) 1.8
Physical Specification
Body Length(mm) 34
Frame Size(mm) 35x35
Single Shaft/Dual Shaft Single Shaft
Shaft Type Hollow
Shaft Diameter(mm) 5
Shaft Length(mm) 15
No. of Lead 4
Lead Length(mm) 400
Weight(g) 170
  • Connectors: Molex, Harwin, Tyco/AMP, JST etc.
  • Lead wires & cables: Special lengths, Protective hose
  • Shaft: Round, D-Cut, Cross drilled, Key-Way, Thread or Hollow
  • Winding: Resistance, Inductance, Rated Current, etc.

laetitia.mahe74 – 02 Nov 2018

Item as described, fast shipping. Would deal again. Thanks!
