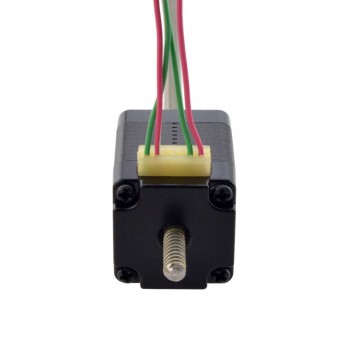

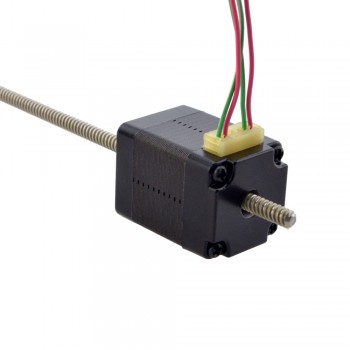

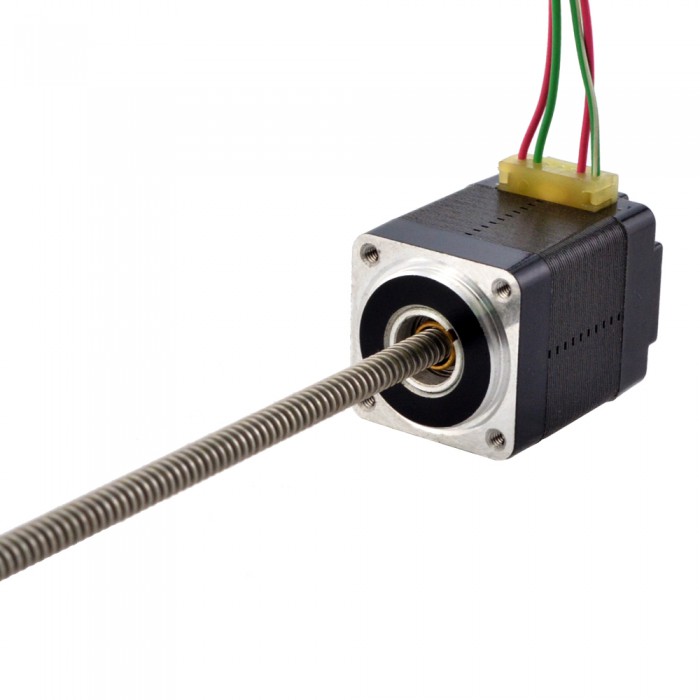

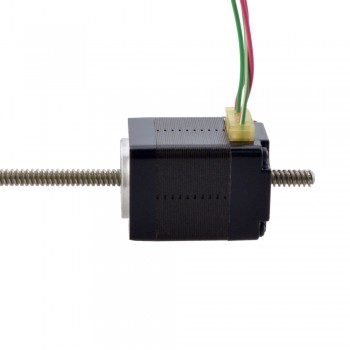

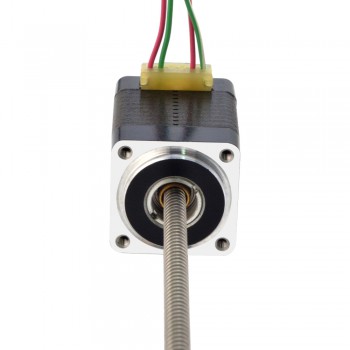

NEMA 8 Non-Captive Acme Linear Actuator Bipolar 0.5A 1.8 Deg 0.015Nm 28.2mm StackLead Revolution 2mm(0.07874") Lead Screw 150mm
NEMA 8 Non-Captive Acme Linear Stepper Motor 0.5A 28.2mm StackScrew Lead 2mm(0.07874") Lead Length 150mm
This NEMA 8 non‑captive linear stepper has a 30 mm body, 1.8° step, and 0.5 A rating. It features a 150 mm, 3.5 mm lead screw with POM nut (2 mm/rev).
Electrical Specification
Manufacturer Part Number: 8N11S0504AC5-150RS
Motor Type: Non-Captive
Step Angle: 1.8°
Holding Torque: 0.015Nm(2.12oz.in)
Rated Current/phase: 0.5A
Phase Resistance: 5.1ohms
Inductance: 1.5mH±20%(1KHz)
Physical Specification
Frame Size: 20 x 20mm
Body Length: 28.2mm

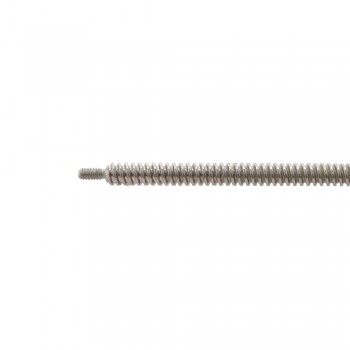

Lead Screw Length: 150mm(5.906")
Lead Screw Diameter: Φ3.5mm(0.1378")
Lead/Step: 0.01mm(0.0003937")
Lead Travel/Revolution: 2mm(0.07874")
Number of Leads: 4
Number of Thread Starts: 2
Lead Length: 300mm
Connection
| A+ | A- | B+ | B- |
| Red | Red/White | Green | Green/White |
| Electrical Specification | |
|---|---|
| Bipolar/Unipolar | Bipolar |
| Inductance(mH) | 1.5 |
| Phase Resistance(ohm) | 5.1 |
| Rated Current (A) | 0.5 |
| Step Angle(deg.) | 1.8 |
| Linear Motor Type | Non-Captive |
| Physical Specification | |
| Body Length(mm) | 28.2 |
| Frame Size(mm) | Nema 08 (20 x 20) |
| Lead Length(mm) | 300 |
| Lead Screw Diameter(mm) | 3.5 |
| Lead Screw Length(mm) | 150 |
| No. of Lead | 4 |
| Lead Travel/Revolution(mm) | 2 |
| Lead Travel/Step(mm) | 0.01 |
| IP Rating | 40 |
