NEMA 8 Non-Captive Acme Linear Actuator Bipolar 0.5A 1.8 Deg 0.02Nm38.2mm Stack Lead Revolution 1mm(0.03937") Lead Screw 150mm

NEMA 8 Non-Captive Acme Linear Actuator Bipolar 0.5A 1.8 Deg 0.02Nm38.2mm Stack Lead Revolution 1mm(0.03937") Lead Screw 150mm
NO.:8N15S0504SC5-150RS
Post a review
Special Offer in Black Friday 2024:
  • 6% OFF on Total Order Amount!
  • Enjoy Discount at Checkout!
  • Valid Till December 3th, 2024
  • Note:No coupon code needed, please place order directly!
Our Price:$48.00
Quantity:- +

Bulk Price:
Qty.Range(unit) Price(unit) Discount
5 $45.60 5%
10 $44.64 7%
50 $43.20 10%
100 $41.76 13%
Add To Cart

NEMA 8 Non-Captive Acme Linear Stepper Motor 0.5A 38.2mm Stack Screw Lead 1mm(0.03937") Lead Length 150mm

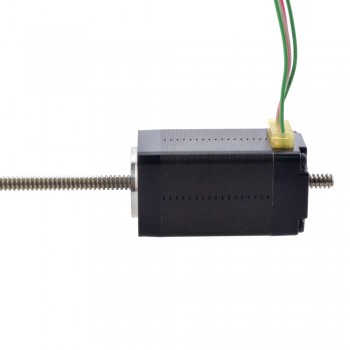

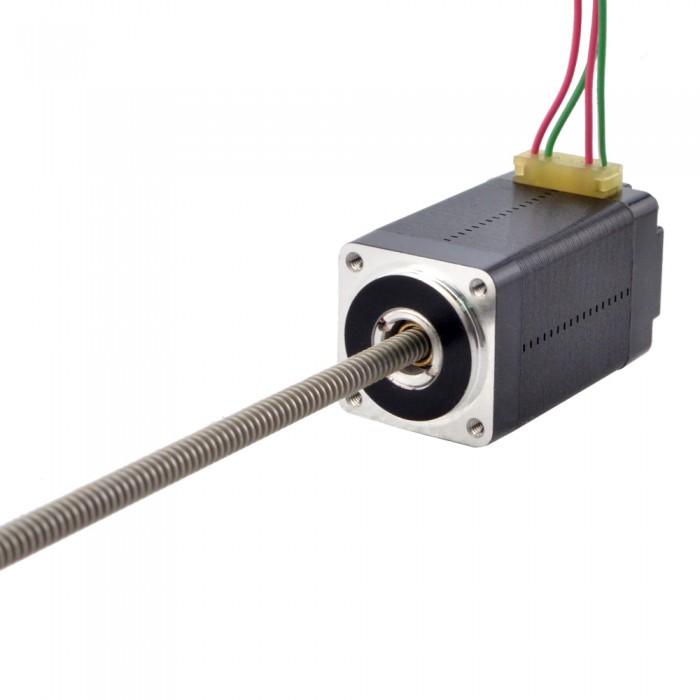

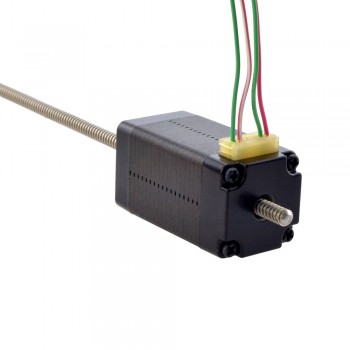

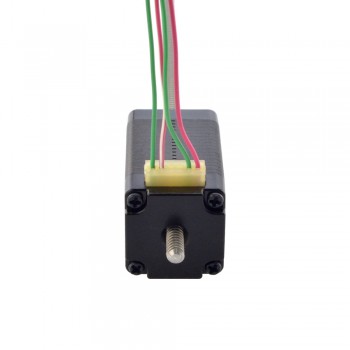

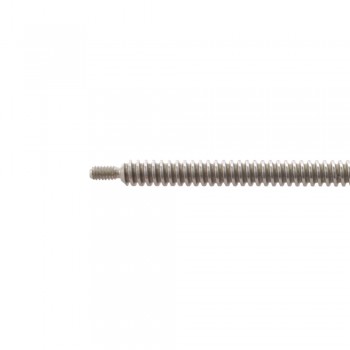

This model is a Nema 8 Non-Captive screw linear stepper motor with a 38.2mm body length, 1.8 degree step angle and 0.5A rated current. It is integrated with a 3.5mm(0.1378") diameter, 150mm(5.906") lead screw length and a POM screw nut, the linear travel is 1mm(0.03937") per revolution.



Electrical Specification

Manufacturer Part Number: 8N15S0504SC5-150RS

Motor Type: Non-Captive

Step Angle: 1.8°

Holding Torque: 0.02Nm(2.83oz.in)

Rated Current/phase: 0.5A

Phase Resistance: 12.5ohms

Inductance: 4.5mH±20%(1KHz)



Physical Specification

Frame Size: 20 x 20mm

Body Length: 38.2mm

Lead Screw Length: 150mm(5.906")

Lead Screw Diameter: Φ3.5mm(0.1378")

Lead/Step: 0.005mm(0.0001969")

Lead Travel/Revolution: 1mm(0.03937")

Number of Leads: 4

Number of Thread Starts: 1

Lead Length: 300mm



Connection



A+ A- B+ B-
Red Red/White Green Green/White



Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!

Prev: NEMA 8 Non-Captive Acme Linear Actuator Bipolar 0.5A 1.8 Deg 0.015Nm 28.2mm StackLead Revolution 2mm(0.07874") Lead Screw 150mm
Next: NEMA 8 Non-Captive Acme Linear Actuator Bipolar 0.5A 1.8 Deg 0.02Nm 38.2mm Stack Lead Revolution 2mm(0.07874") Lead Screw 150mm
Electrical Specification
Bipolar/Unipolar Bipolar
Inductance(mH) 4.5
Phase Resistance(ohm) 12.5
Rated Current (A) 0.5
Step Angle(deg.) 1.8
Linear Motor Type Non-Captive
Physical Specification
Body Length(mm) 38.2
Frame Size(mm) Nema 08 (20 x 20)
Lead Length(mm) 300
Lead Screw Diameter(mm) 3.5
Lead Screw Length(mm) 150
No. of Lead 4
Lead Travel/Revolution(mm) 1
Lead Travel/Step(mm) 0.005
IP Rating 40
