Dual Shaft Nema 17 Stepper Motor Bipolar 59Ncm 4 Wires(83.78oz.in) 2A 2.8v 42x42x48mm

Dual Shaft Nema 17 Stepper Motor Bipolar 59Ncm 4 Wires(83.78oz.in) 2A 2.8v 42x42x48mm
NO.:17HS19-2004D
Post a review
Special Offer in April 2024:
  • 6% OFF on Total Order Amount!
  • Enjoy Discount at Checkout!
  • Valid Till April 20th, 2024
  • Note:No coupon code needed, please place order directly!
Our Price:$12.26
Quantity:- +

Bulk Price:
Qty.Range(unit) Price(unit) Discount
10 $11.65 5%
30 $11.40 7%
50 $11.03 10%
100 $10.67 13%
Add To Cart

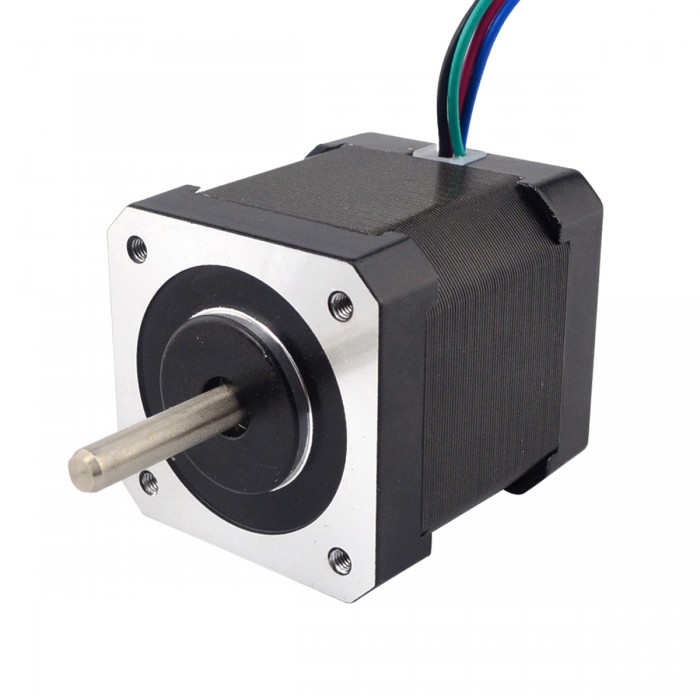

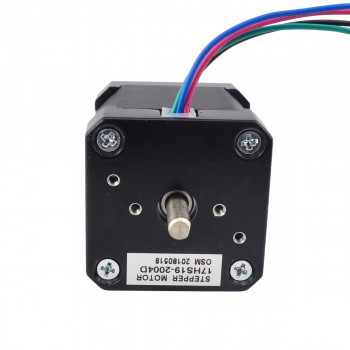

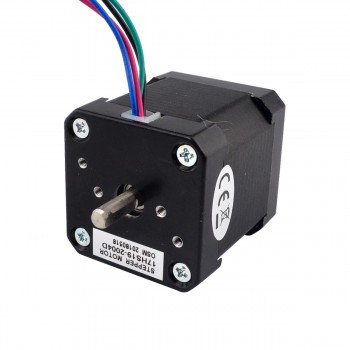

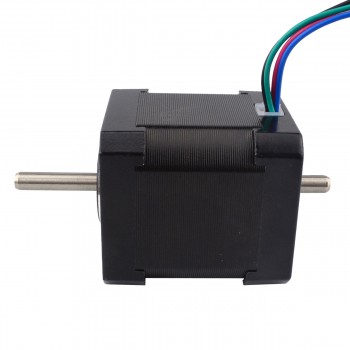

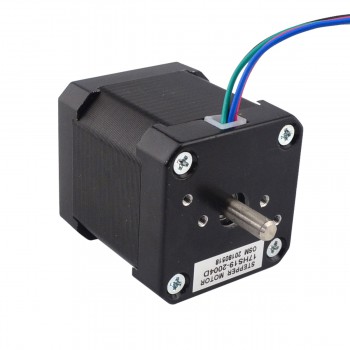

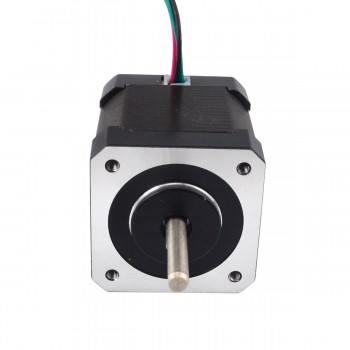

Dual Shaft Nema 17 Bipolar 59Ncm (83.78oz.in) 2A 2.8v 42x42x48mm 4 Wires



This model is dual shaft Nema 17 Bipolar stepper motor,it with step angle 1.8deg and size 42x42x48mm. It has 4 wires, each phase draws 2A at 2.8V, with holding torque 59Ncm (83.78oz.in).



Electrical Specification

Manufacturer Part Number: 17HS19-2004D

Motor Type: Bipolar Stepper

Step Angle: 1.8 deg

Holding Torque: 59Ncm(83.78oz.in)

Rated Current/phase: 2.00A

Phase Resistance: 1.40ohms

Inductance: 3.00mH ± 20%(1KHz)



Physical Specification

Frame Size: 42 x 42mm

Body Length: 48mm

Shaft Diameter: Φ5mm

Front Shaft Length: 24mm

Rear Shaft Length: 13mm

Number of Leads: 4

Lead Length: 500mm

Weight: 400g



Connection



A+ A- B+ B-
Black Green Red Blue



Resources

Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!

Prev: NDR-120-12 MEAN WELL CNC Power Supply 120W 12VDC 10A 115/230VAC DIN RAIL Power Supply
Next: POM Screw Nut for Tr5x2 Threaded Rod Stepper Motor Parts
Electrical Specification
Bipolar/Unipolar Bipolar
Holding Torque (Ncm) 59
Holding Torque (oz.in) 83.57
Inductance(mH) 3.00
Phase Resistance(ohm) 1.40
Rated Current (A) 2.00
Step Angle(deg.) 1.8
Physical Specification
Body Length(mm) 48
Frame Size(mm) Nema 17 (42 x 42)
No. of Lead 4
Shaft Diameter(mm) 5
Shaft Length(mm) 25
Single Shaft/Dual Shaft Dual Shaft
Weight(g) 400
Output Shaft Type O
IP Rating 40
