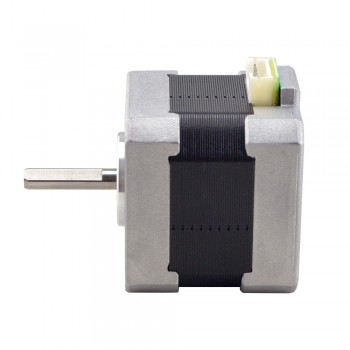

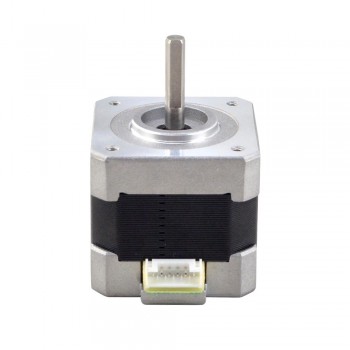

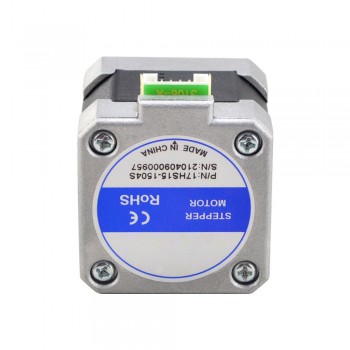

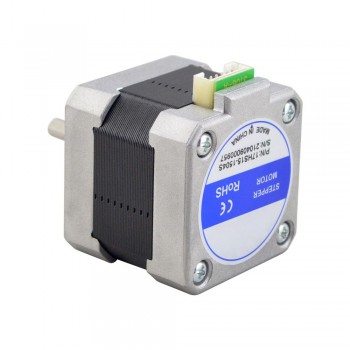

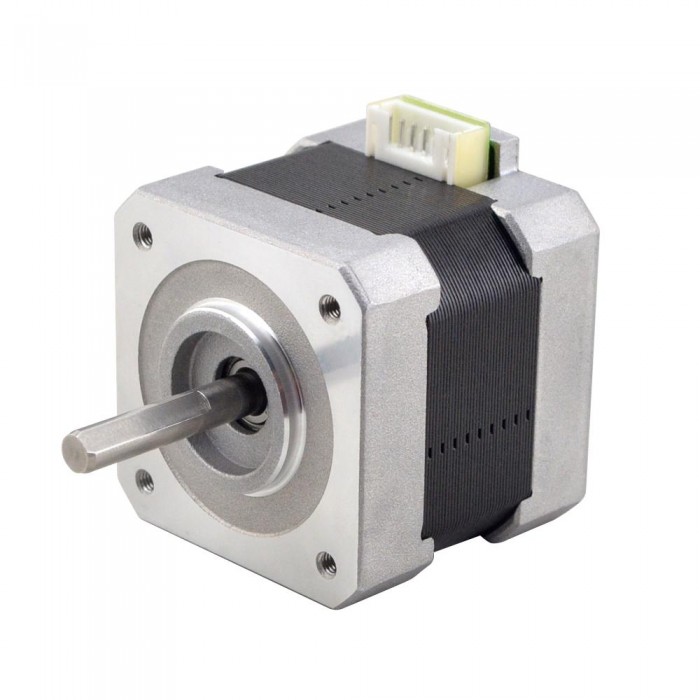

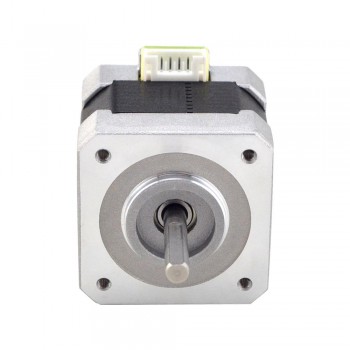

Nema 17 Stepper Motor Bipolar 1.8 Degree 42Ncm(59.49oz.in) 1.5A 42x42x39mm 4 Wires
Special Offer in April 2024:
- $10 Off Over $150
- $20 Off Over $300
- $35 Off Over $500
- $55 Off Over $800
- $70 Off Over $1000
- $100 Off Over $1500
- Enjoy Discount at Checkout!
- Valid Till April 30th, 2024
- Note:No coupon code needed, please place order directly!
Our Price:$8.77
Nema 17 Stepper Motor Bipolar 1.8 Degree 42Ncm(59.49oz.in) 1.5A 42x42x39mm 4 Wires
Electrical Specification
Manufacturer Part Number: 17HS15-1504S
Motor Type: Bipolar Stepper
Step Angle: 1.8 deg
Holding Torque: 42Ncm(59.49oz.in)
Rated Current/phase: 1.50A
Phase Resistance: 2.0ohms
Inductance: 3.9mH ± 20%(1KHz)
Physical Specification
Frame Size: 42 x 42mm
Body Length: 39mm
Shaft Diameter: Φ5mm
D-cut Length: 18mm
Shaft Length: 23.5m
Number of Leads: 4
Lead Length: 1000mm
Weight: 280g

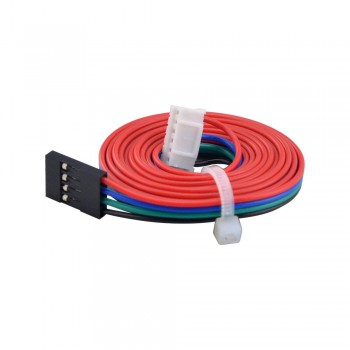

Connection
|
A+
|
A-
|
B+
|
B-
|
|
Black
|
Green
|
Blue
|
Red
|
Resources
- Full Datasheet: 17HS15-1504S.pdf
- Torque Curve: 17HS15-1504S Torque Curve.pdf
Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!
| Electrical Specification | |
|---|---|
| Bipolar/Unipolar | Bipolar |
| Holding Torque (Ncm) | 42 |
| Holding Torque (oz.in) | 59.49 |
| Inductance(mH) | 3.9 |
| Phase Resistance(ohm) | 2.0 |
| Rated Current (A) | 1.5 |
| Physical Specification | |
| Body Length(mm) | 39 |
| Frame Size(mm) | Nema 17 (42 x 42) |
| Lead Length(mm) | 1000 |
| No. of Lead | 4 |
| Shaft Diameter(mm) | 5 |
| Shaft Length(mm) | 23.5 |
| Shaft Type | D-Cut |
| Single Shaft/Dual Shaft | Single Shaft |
| Weight(g) | 280 |
