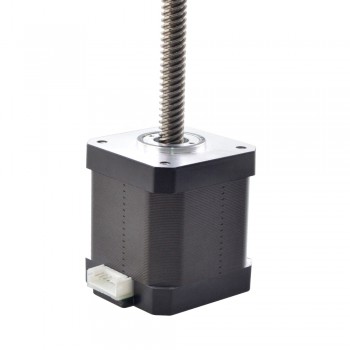

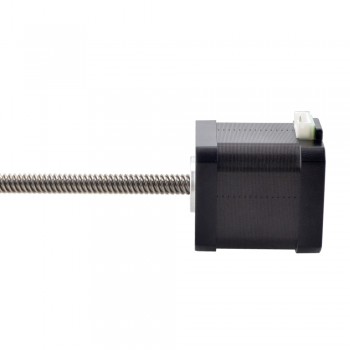

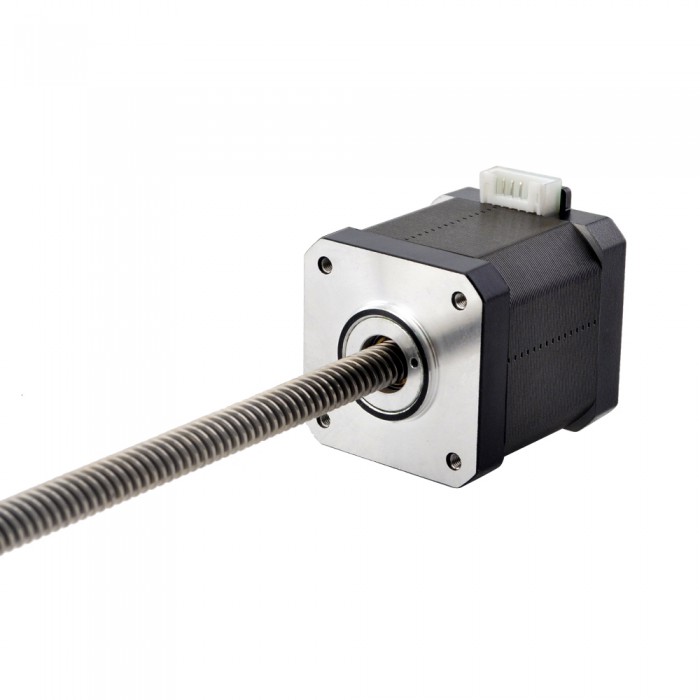

Nema 17 Non-captive Linear Stepper Motor Actuator 48mm Stack 1.8 Deg 1.68A Lead 8mm/0.31496" Lead Screw 200mm

Nema 17 Non-captive Linear Stepper Motor Actuator 48mm Stack 1.8 Deg 1.68A Lead 8mm/0.31496" Lead Screw 200mm
NO.:17N19S1684MB-200RS
Post a review
Special Offer in April 2024:
  • 6% OFF on Total Order Amount!
  • Enjoy Discount at Checkout!
  • Valid Till April 20th, 2024
  • Note:No coupon code needed, please place order directly!
Our Price:$37.90
Quantity:- +

Bulk Price:
Qty.Range(unit) Price(unit) Discount
5 $36.01 5%
10 $35.25 7%
50 $34.11 10%
100 $32.97 13%
Add To Cart

Nema 17 Non-captive 48mm Stack 1.68A Lead 8mm/0.31496" Length 200mm



This model is economy linear stepper motor which named Nema 17 non captive linear actuator, it was composed of 48mm 1.8 degree 0.4A Nema 17 stepper motor and 200mm length Tr8x8 linear screw.



Electrical Specification

Manufacturer Part Number: 17N19S1684MB-200RS(17LS19-1684N-200G)

Motor Type: Non Captive Linear Stepper

Step Angle: 1.8 deg

Minimal Thrust: 6.5N(300pps)

Rated Current/phase: 1.68A

Phase Resistance: 1.65ohms

Voltage: 2.8V

Inductance: 3mH ± 20%(1KHz)



Physical Specification

Frame Size: 42 x 42mm

Body Length: 48mm

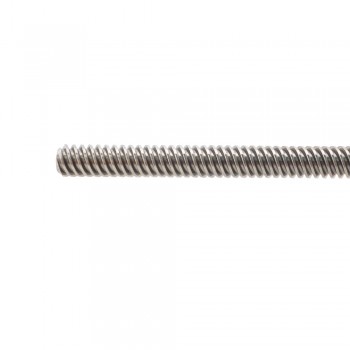

Lead Screw Length: 200mm(7.874")

Lead Screw Diameter: Φ8mm(0.315")

Lead/Step: 0.04mm(0.0015748")

Lead/Revolution: 8mm(0.315")

Number of Leads: 4

Lead Length: 400mm

Weight: 400g



Connection

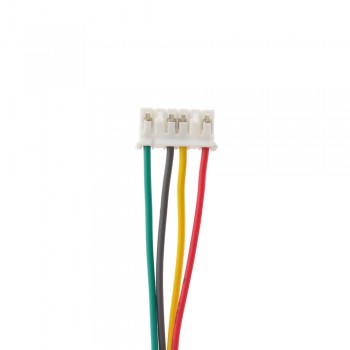

A+ A- B+ B-
Red Gray Yellow Green



Resources



Lead Screw End Machining

Nema 17 Non-captive Linear Stepper Motor Actuator 48mm Stack 1.8 Deg 1.68A Lead 8mm/0.31496



Anti-Backlash Nut



OYOSTEPPER provides anti-backlash nut for external lead screw linear actuator (except Size 34) and non-captive lead screw linear actuator (except size 24 and 34).

There should be a nominal backlash between lead screw and OYOSTEPPER standard plastic nut after millions of cycles. OYOSTEPPER guarantees few millions of cycles but physical backlash can be increased. To reduce or eliminate backlash, OYOSTEPPER provides spring pressure structure of anti-backlash nut.

Nema 17 Non-captive Linear Stepper Motor Actuator 48mm Stack 1.8 Deg 1.68A Lead 8mm/0.31496



Encoders

Nema 17 Non-captive Linear Stepper Motor Actuator 48mm Stack 1.8 Deg 1.68A Lead 8mm/0.31496



According to application requirements, customer can easily choose encoders via index output or non-index type and thru output method as single ended or differential output.

Also various resolution can be chosen freely for easier and precise positioning.

All OYOSTEPPER standard encoders are optical and incremental. When you choose encoder, please carefully look into options especially size, resolution, index and output method.



Brakes



Especially Vertical applications or holding motors from sudden power-off status, OYOSTEPPER standard power-off brakes for NEMA14, 17, 23, 24 and 34 sizes will be helpful to reduce concern of customers.

Nema 17 Non-captive Linear Stepper Motor Actuator 48mm Stack 1.8 Deg 1.68A Lead 8mm/0.31496



Wiring, Cabling and Connectors

Nema 17 Non-captive Linear Stepper Motor Actuator 48mm Stack 1.8 Deg 1.68A Lead 8mm/0.31496



Flying wire leads or connectors

Twisting wire leads

Heat shrink or expandable tubing

Cable housings



Teflon Coated Screw



If customer's applications require greaseless screw and nut combination, OYOSTEPPER offers teflon coated lead screw of stepper linear actuator.

Teflon coated lead screw stepper linear actuator enables it's longer life cycle and better thrust force generation against conventional SUS lead screw.

Teflon coating can be applied in the whole range of lead screw options in OYOSTEPPER and all types of linear actuators such as External, Non-Captive, and Captive.

In addition, Anti-backlash nut also can be combined with teflon coated screw too.

Nema 17 Non-captive Linear Stepper Motor Actuator 48mm Stack 1.8 Deg 1.68A Lead 8mm/0.31496

Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!

Prev: Nema 23 Worm Gearbox 20:1 NMRV30 Worm Gear Motor Speed Reducer Motor for Nema 23 Stepper Motor
Next: Nema 42 10:1 Worm Gearbox NMRV50 Worm Gear Speed Reducer Motor for Nema 42 Stepper Motor
Electrical Specification
Bipolar/Unipolar Bipolar
Inductance(mH) 2.8
Minimal Thrust(N) 6.5
Phase Resistance(ohm) 1.65
Rated Current (A) 1.68
Step Angle(deg.) 1.8
Linear Motor Type Non-Captive
Physical Specification
Body Length(mm) 48
Frame Size(mm) Nema 17 (42 x 42)
Lead Length(mm) 400
Lead Screw Diameter(mm) 8
Lead Screw Length(mm) 200
No. of Lead 4
Lead Travel/Revolution(mm) 8
Lead Travel/Step(mm) 0.04
IP Rating 40
