Nema 11 Non-captive Linear Stepper Motor Actuator 34mm Stack 0.75A Lead 4.877mm/0.192" Length 150mm

Nema 11 Non-captive Linear Stepper Motor Actuator 34mm Stack 0.75A Lead 4.877mm/0.192" Length 150mm
NO.:11N13S0754QE-150RS
Review: Post a review
Black Friday Special Offer 2022:
  • 6% OFF on Total Order Amount!
  • Enjoy Discount at Checkout!
  • Valid Till November 30th, 2022
  • Note:No coupon code needed, please place order directly!
Latest price:$54.76
Buy It Now:$36.51
Quantity:- +

Bulk Price:
Qty.Range(unit) Price(unit) Discount
5 $35.37 3%
10 $34.23 6%
50 $33.09 9%
100 $31.95 12%
Add To Cart

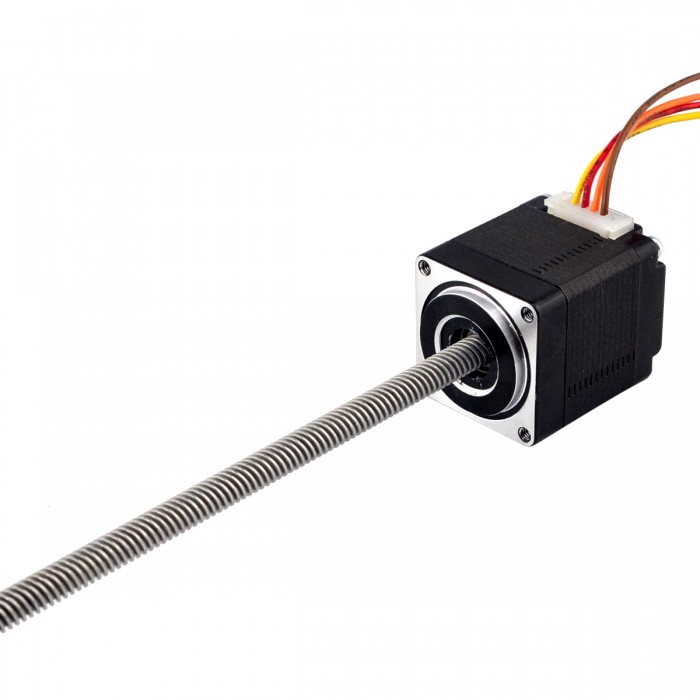

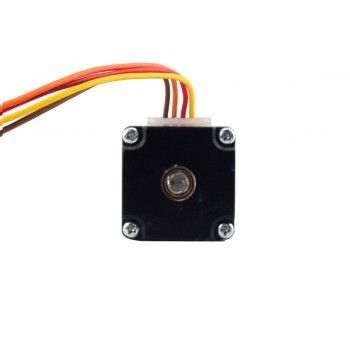

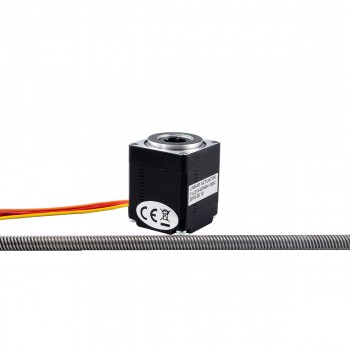

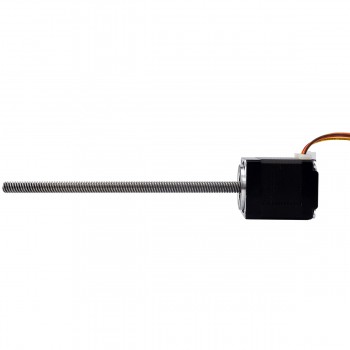

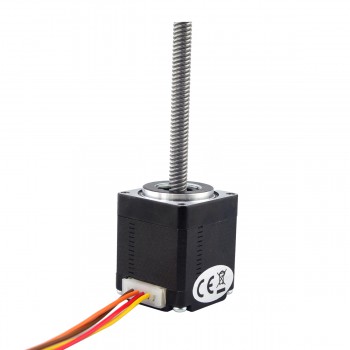

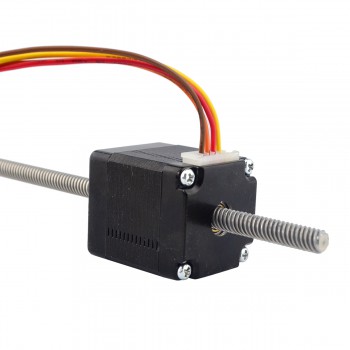

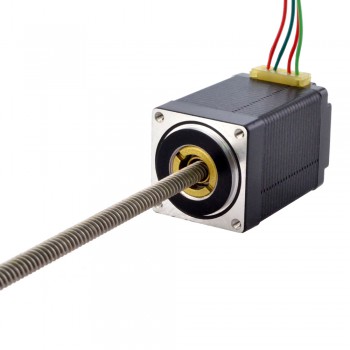

Nema 11 Non-captive 34mm Stack 0.75A Lead 4.877mm/0.192" Length 150mm



This model is economy linear stepper motor which named Nema 11 non-captive linear actuator, it was composed of 34mm 1.8 degree 0.75A Nema 11 stepper motor and 150mm length Tr5.56x4.8768 linear screw.



Electrical Specification

Manufacturer Part Number: 11N13S0754QE-150RS(11LS13-0754N-150C)

Motor Type: Non-captive Linear Stepper

Step Angle: 1.8 deg

Minimal Thrust: 0.64N(300pps)

Rated Current/phase: 0.75A

Phase Resistance: 3.2ohms

Voltage: 2.4V

Inductance: 2.0mH ± 20%(1KHz)



Physical Specification

Frame Size: 28 x 28mm

Body Length: 34mm

Lead Screw Length: 150mm(3.937")

Lead Screw Diameter: Φ5.56mm(0.2189")

Lead/Step: 0.024384mm(0.00096")

Lead/Revolution: 4.8768mm(0.192")

Number of Leads: 4

Lead Length: 300mm

Weight: 150g



Connection

A+ A- B+ B-
Red Brown Yellow Orange



Resources



Lead Screw End Machining



Anti-Backlash Nut



OYOSTEPPER provides anti-backlash nut for external lead screw linear actuator (except Size 34) and non-captive lead screw linear actuator (except size 24 and 34).

There should be a nominal backlash between lead screw and OYOSTEPPER standard plastic nut after millions of cycles. OYOSTEPPER guarantees few millions of cycles but physical backlash can be increased. To reduce or eliminate backlash, OYOSTEPPER provides spring pressure structure of anti-backlash nut.



Encoders



According to application requirements, customer can easily choose encoders via index output or non-index type and thru output method as single ended or differential output.

Also various resolution can be chosen freely for easier and precise positioning.

All OYOSTEPPER standard encoders are optical and incremental. When you choose encoder, please carefully look into options especially size, resolution, index and output method.



Brakes



Especially Vertical applications or holding motors from sudden power-off status, OYOSTEPPER standard power-off brakes for NEMA14, 17, 23, 24 and 34 sizes will be helpful to reduce concern of customers.



Wiring, Cabling and Connectors



Flying wire leads or connectors

Twisting wire leads

Heat shrink or expandable tubing

Cable housings



Teflon Coated Screw



If customer's applications require greaseless screw and nut combination, OYOSTEPPER offers teflon coated lead screw of stepper linear actuator.

Teflon coated lead screw stepper linear actuator enables it's longer life cycle and better thrust force generation against conventional SUS lead screw.

Teflon coating can be applied in the whole range of lead screw options in OYOSTEPPER and all types of linear actuators such as External, Non-Captive, and Captive.

In addition, Anti-backlash nut also can be combined with teflon coated screw too.

Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!

Prev: NEMA 11 External Ball Screw Stepper Motor Linear Actuator 1.0A 46mm Stack Screw Lead 2mm(0.07874") Lead Length 150mm
Next: NEMA 11 Non-Captive Acme Linear Stepper Motor Actuator 1.0A 32.2mm Stack Screw Lead 2.54mm(0.1") Lead Length 200mm
Electrical Specification
Bipolar/Unipolar Bipolar
Inductance(mH) 2
Minimal Thrust(N) 0.64
Phase Resistance(ohm) 3.2
Rated Current (A) 0.75
Step Angle(deg.) 1.8
Linear Motor Type Non-Captive
Physical Specification
Body Length(mm) 34
Frame Size(mm) Nema 11 (28 x 28)
Lead Length(mm) 300
Lead Screw Diameter(mm) 5.56
Lead Screw Length(mm) 150
No. of Lead 4
Lead Travel/Revolution(mm) 4.8768
Lead Travel/Step(mm) 0.024384
IP Rating 40
