Nema 17 Non-captive Linear Stepper Motor 48mm Stack 1.8 Deg 1.68A 2.8V Lead 8mm/0.31496" Lead Screw 300mm
- 6% OFF on Total Order Amount!
- Enjoy Discount at Checkout!
- Valid Till October 7th, 2024
- Note:No coupon code needed, please place order directly!

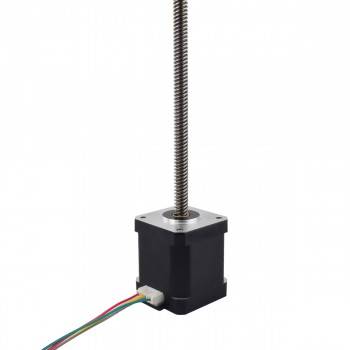

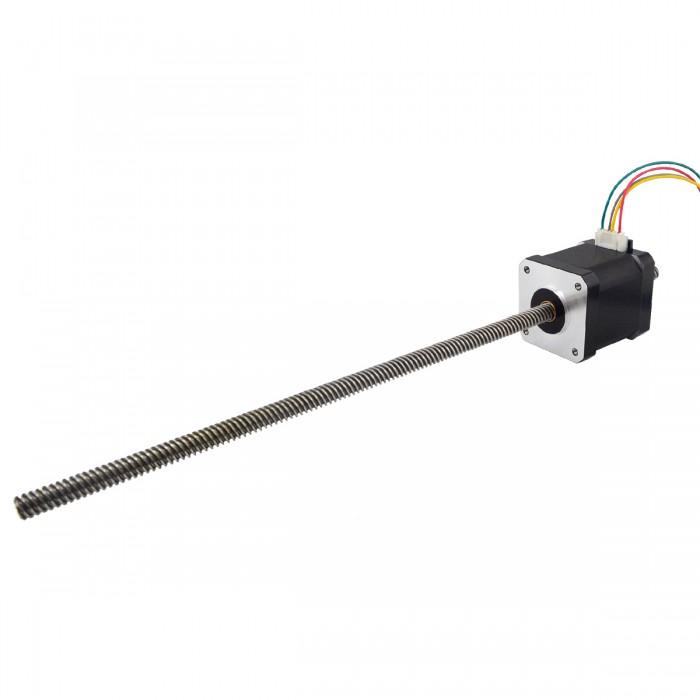

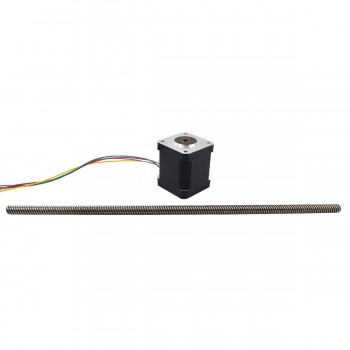

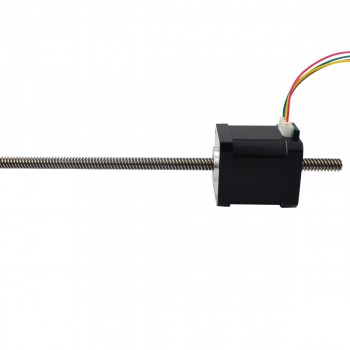

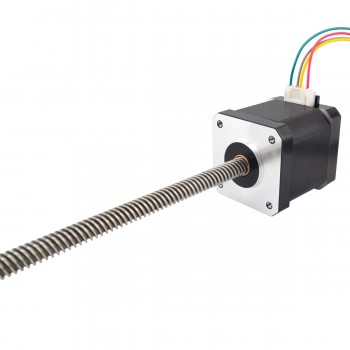

This model is economy linear stepper which named Nema 17 Non-captive linear actuator, it was composed of 48mm 1.8 degree 0.4A Nema 17 stepper motor and 300mm length Tr8x8 linear screw.
Electrical Specification
Manufacturer Part Number: 17LS19-1684N-300G
Motor Type: Non Captive Linear Stepper
Step Angle: 1.8 deg
Holding Torque: 44Ncm(62.3oz.in)
Rated Current/phase: 1.68A
Phase Resistance: 1.65ohms
Voltage: 2.8V
Inductance: 2.80mH ± 20%(1KHz)
Physical Specification
Frame Size: 42 x 42mm
Body Length: 48mm
Lead Screw Length: 300mm（11.811"）
Lead Screw Diameter: Φ8mm（0.315"）
Lead/Revolution: 8mm（0.315"）
Number of Leads: 4
Lead Length: 400mm
Weight : 350g
Connection
|
A+
|
A-
|
B+
|
B-
|
|
Red
|
Gray
|
Yellow
|
Green
|
Resources
Full Datasheet: 17LS19-1684N-300G.pdf
Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!
| Electrical Specification | |
|---|---|
| Bipolar/Unipolar | Bipolar |
| Holding Torque (Ncm) | 44 |
| Inductance(mH) | 2.8 |
| Phase Resistance(ohm) | 1.65 |
| Rated Current (A) | 1.68 |
| Step Angle(°) | 1.8 |
| Motor Type | Non-Captive |
| Physical Specification | |
| Body Length(mm) | 48 |
| Lead Length(mm) | 400 |
| Lead Screw Diameter(mm) | 8 |
| Lead Screw Length(mm) | 300 |
| No. of Lead | 4 |
| Lead Travel/Revolution(mm) | 8 |
| Lead Travel/Step(mm) | 0.04 |
| Frame Size(mm) | Nema 17 (42 x 42) |
- Tag:
- Nema ,
- 300mm Linear Stepper ,
- 48mm
