Nema 17 External Linear Stepper Motor 1.8 Deg 26Ncm(36.8oz.in) 12V 0.4A Lead Screw 32mm Lead/Revolution: 8mm(0.315")

Nema 17 External Linear Stepper Motor 1.8 Deg 26Ncm(36.8oz.in) 12V 0.4A Lead Screw 32mm Lead/Revolution: 8mm(0.315")
NO.:17E13S0404MB-032RB
Post a review
Special Offer in June 2024:
  • 6% OFF on Total Order Amount!
  • Enjoy Discount at Checkout!
  • Valid Till June 20th, 2024
  • Note:No coupon code needed, please place order directly!
Our Price:$22.74
Quantity:- +

Bulk Price:
Qty.Range(unit) Price(unit) Discount
5 $21.60 5%
10 $21.15 7%
50 $20.47 10%
100 $19.78 13%
Add To Cart

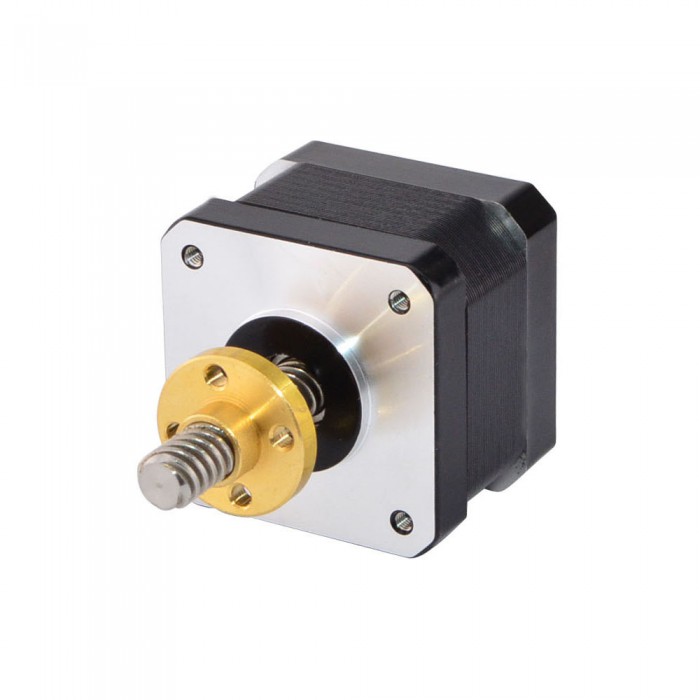

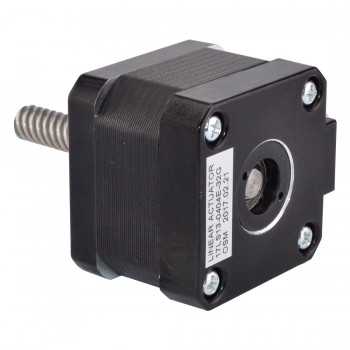

Nema 17 External 34mm Stack 0.4A Lead 8mm/0.31496" Length 32mm



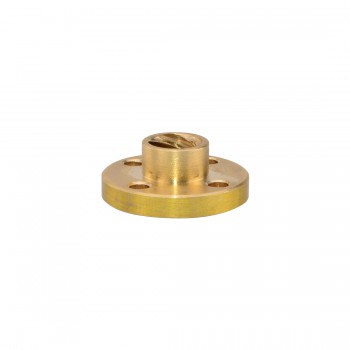

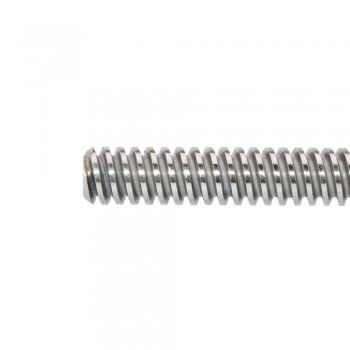

This model is economy linear stepper motor which named Nema 17 external linear actuator, the motor part is 34mm 1.8 degree 0.4A Nema 17 stepper motor. It was integrated with 32mm Tr8x8 threaded rod and a Brass screw nut move along the threaded rod.



Electrical Specification

Manufacturer Part Number: 17E13S0404MB-032RB(17LS13-0404E-32G)

Motor Type: External Linear Stepper

Step Angle: 1.8 deg

Holding Torque: 26Ncm(36.8oz.in)

Rated Current/phase: 0.4A

Phase Resistance: 30ohms

Voltage: 12V

Inductance: 37mH ± 20%(1KHz)



Physical Specification

Frame Size: 42 x 42mm

Body Length: 34mm

Lead Screw Length: 32mm(1.2598")

Lead Screw Diameter: Φ8mm(0.315")

Lead/Step: 0.04mm(0.0015748")

Lead/Revolution: 8mm(0.315")

Number of Leads: 4

Lead Length: 400mm

Weight: 400g

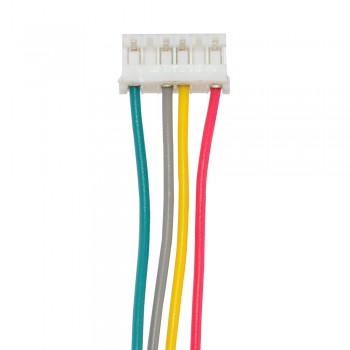

Connection



A+ A- B+ B-
Red Gray Yellow Green



Resources



Lead Screw End Machining

Nema 17 External Linear Stepper Motor 1.8 Deg 26Ncm(36.8oz.in) 12V 0.4A Lead Screw 32mm Lead/Revolution: 8mm(0.315



Anti-Backlash Nut



OYOSTEPPER provides anti-backlash nut for external lead screw linear actuator (except Size 34) and non-captive lead screw linear actuator (except size 24 and 34).

There should be a nominal backlash between lead screw and OYOSTEPPER standard plastic nut after millions of cycles. OYOSTEPPER guarantees few millions of cycles but physical backlash can be increased. To reduce or eliminate backlash, OYOSTEPPER provides spring pressure structure of anti-backlash nut.

Nema 17 External Linear Stepper Motor 1.8 Deg 26Ncm(36.8oz.in) 12V 0.4A Lead Screw 32mm Lead/Revolution: 8mm(0.315



Encoders

Nema 17 External Linear Stepper Motor 1.8 Deg 26Ncm(36.8oz.in) 12V 0.4A Lead Screw 32mm Lead/Revolution: 8mm(0.315



According to application requirements, customer can easily choose encoders via index output or non-index type and thru output method as single ended or differential output.

Also various resolution can be chosen freely for easier and precise positioning.

All OYOSTEPPER standard encoders are optical and incremental. When you choose encoder, please carefully look into options especially size, resolution, index and output method.



Brakes



Especially Vertical applications or holding motors from sudden power-off status, OYOSTEPPER standard power-off brakes for NEMA14, 17, 23, 24 and 34 sizes will be helpful to reduce concern of customers.

Nema 17 External Linear Stepper Motor 1.8 Deg 26Ncm(36.8oz.in) 12V 0.4A Lead Screw 32mm Lead/Revolution: 8mm(0.315



Wiring, Cabling and Connectors

Nema 17 External Linear Stepper Motor 1.8 Deg 26Ncm(36.8oz.in) 12V 0.4A Lead Screw 32mm Lead/Revolution: 8mm(0.315



Flying wire leads or connectors

Twisting wire leads

Heat shrink or expandable tubing

Cable housings



Teflon Coated Screw



If customer's applications require greaseless screw and nut combination, OYOSTEPPER offers teflon coated lead screw of stepper linear actuator.

Teflon coated lead screw stepper linear actuator enables it's longer life cycle and better thrust force generation against conventional SUS lead screw.

Teflon coating can be applied in the whole range of lead screw options in OYOSTEPPER and all types of linear actuators such as External, Non-Captive, and Captive.

In addition, Anti-backlash nut also can be combined with teflon coated screw too.

Nema 17 External Linear Stepper Motor 1.8 Deg 26Ncm(36.8oz.in) 12V 0.4A Lead Screw 32mm Lead/Revolution: 8mm(0.315

Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!

Prev: Nema 23 Stepper Motor Bipolar 1.8 Deg 3Nm/425oz.in 4.2A 9mm Key-way Shaft for NMRV30 Worm Gearbox
Next: Nema 34 10:1 Worm Gearbox Motor NMRV40 Worm Gear Speed Reducer Motor for Nema 34 Stepper Motor
Electrical Specification
Bipolar/Unipolar Bipolar
Holding Torque (Ncm) 26
Holding Torque (oz.in) 36.8
Inductance(mH) 37
Phase Resistance(ohm) 30
Rated Current (A) 0.4
Step Angle(deg.) 1.8
Linear Motor Type External(Acme)
Physical Specification
Body Length(mm) 34
Frame Size(mm) Nema 17 (42 x 42)
Lead Length(mm) 400
Lead Screw Diameter(mm) 8
Lead Screw Length(mm) 32
No. of Lead 4
Lead Travel/Revolution(mm) 8
Lead Travel/Step(mm) 0.04
Product Type Linear Stepper Motor
IP Rating 40
