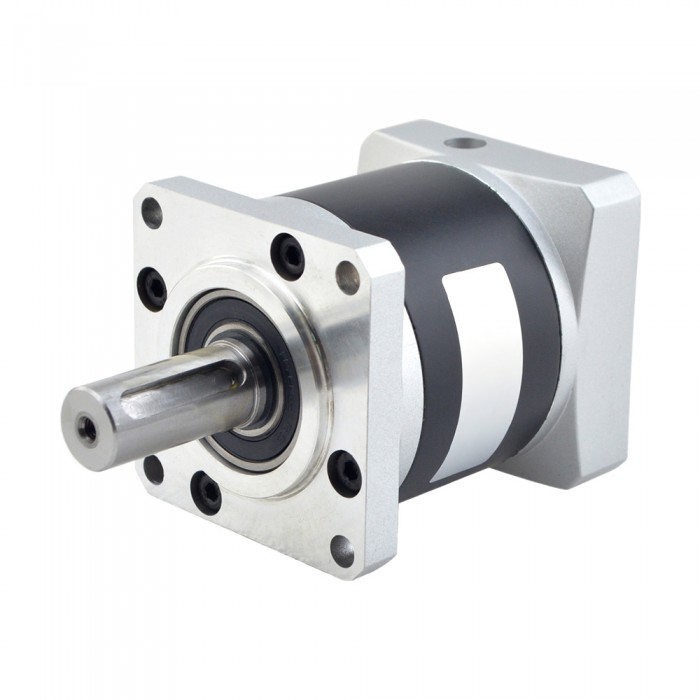

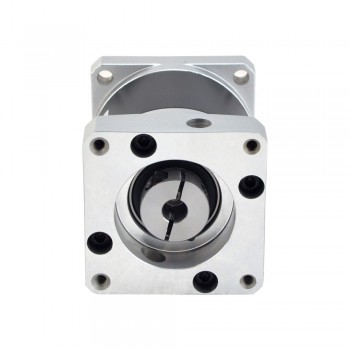

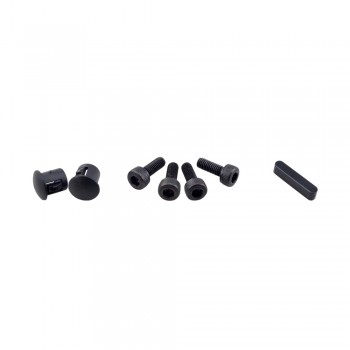

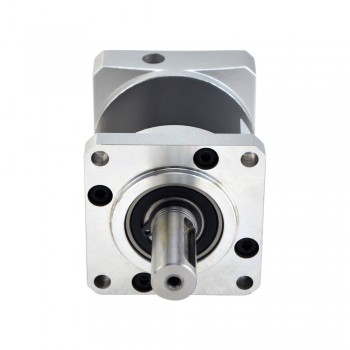

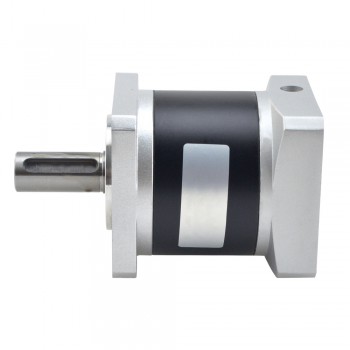

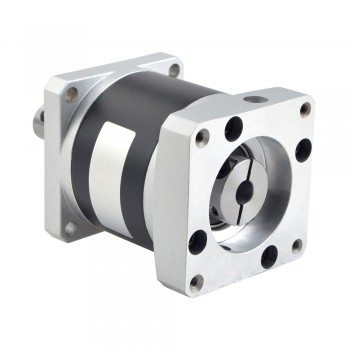

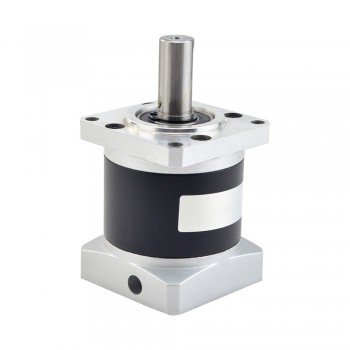

TQMG Series Planetary Gearbox 50:1 Backlash 50 Arc-min for 8mm Shaft Nema 23 Stepper Motor
-
Manuals and Documentation:
Gearbox Datasheet:
TQMG Series Planetary Gearbox Gear Ratio 50:1 Backlash 50 arc-min for 8mm Shaft Nema 23 Stepper Motor
The TQMG series in-line planetary gearbox features a 50:1 gear ratio, ≤50 arc-min backlash, powder metallurgy gears, and an integrated input shaft coupling compatible with standard 8mm NEMA 23 stepper, brushless DC, and brushed DC motors (e.g., model 23HS30-2904S); custom shaft adaptation is available for non-standard motors.
Gearbox Specifications
Manufacturer Part Number: TQMG23-G50-D8
Gearbox Type: Planetary
Gear Ratio: 50: 1
Efficiency: 90%
Backlash at No-load: <=50arcmin
Max.Permissible Torque: 20Nm(177.01lb-in)
Noise: <=60dB
Waterproof Rating: IP54
Lifetime: 20000hours
Physical Specifications
Frame Size: 57 x 57mm
Gearbox Length: 68mm
Output Shaft Type: Key way
Output Shaft Diameter: Φ14mm
Output Shaft Length: 34mm
Input Shaft Diameter: Φ8mm
Input Shaft Length: 13.5mm
| Physical Specification | |
|---|---|
| Frame Size(mm) | 57 x 57 |
| Weight(g) | 890 |
| Gearbox Length(mm) | 68 |
| Input Shaft Diameter(mm) | 8 |
| Input Shaft Length(mm) | 13.5 |
| Output Shaft Diameter(mm) | 14 |
| Output Shaft Length(mm) | 34 |
| Suit for Motor | Nema 23 |
| Gearbox Type | PLM Series |
| Gear Ratio | 50 |
| Backlash at No-load | <=50arcmin |
| Product Type | GEARBOX |
| Output Shaft Type | Keyway Shaft |
