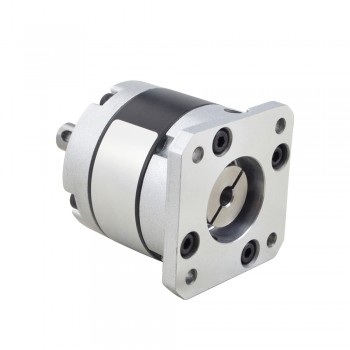

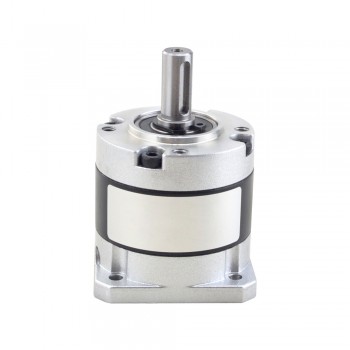

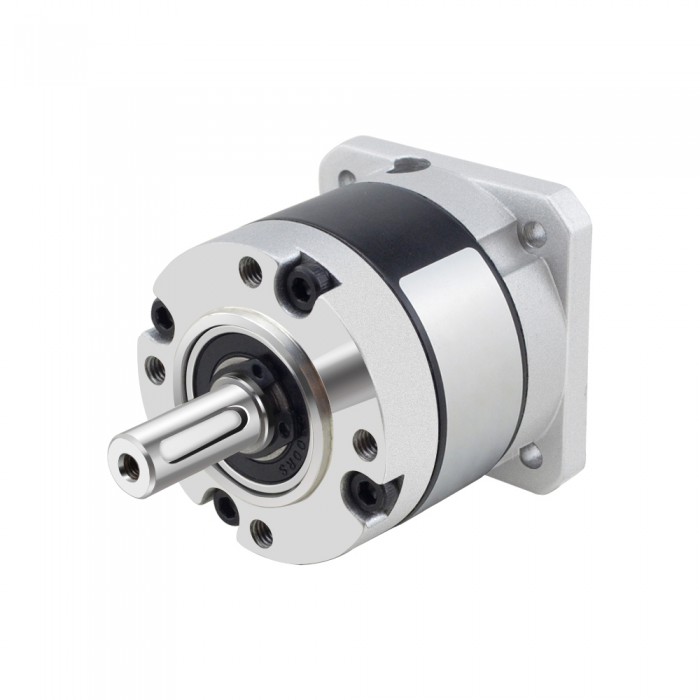

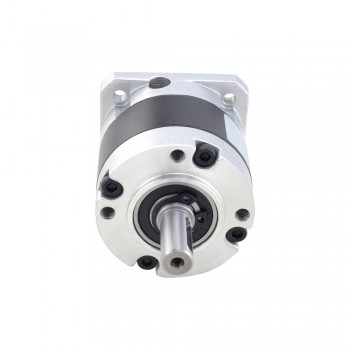

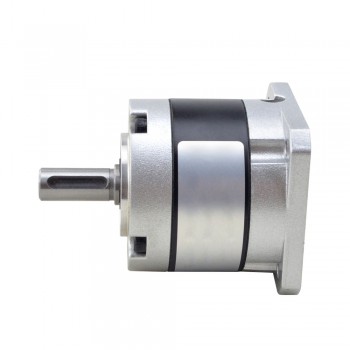

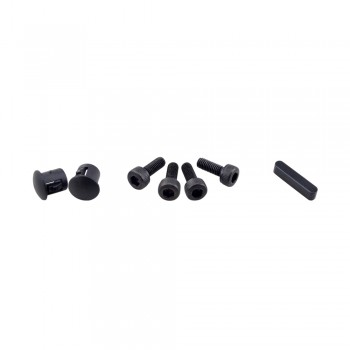

TQMG Series Planetary Gearbox Gear 5:1 Backlash 30 Arc-min for Nema 17 Stepper Motor BLDC Motor & Servo Motor
TQMG Series Planetary Gearbox Gear Ratio 5:1 Backlash 30 arc-min for Nema 17 Stepper Motor
It with gear ratio 5:1 and a maximum 30arc-min backlash. Diffent with the TQME series' steel gears, TQMG series' gears are made of powder metallurgy.

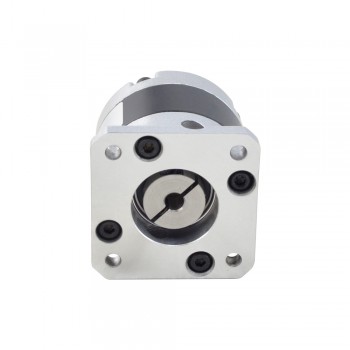

This inline planetary gearbox built-in an input shaft coupling which can match standard 5mm short shaft Nema 17 stepper motor, brushless dc motor and brushed dc motor.
One of matchable motor is 17HS15-1584S, for other motors, please contact our technical support to custom the motor shaft.
Gearbox Specifications
Manufacturer Part Number: TQMG17-G5
Gearbox Type: Planetary
Gear Ratio: 5: 1
Efficiency: 90%
Backlash at No-load: <=30arcmin
Max.Permissible Torque: 9Nm(79.66lb-in)
Noise: <=55dB
Waterproof Rating: IP54
Lifetime: 20000hours
Physical Specifications
Frame Size: 42 x 42mm
Gearbox Length: 40mm
Output Shaft Type: Key way
Output Shaft Diameter: Φ8mm
Output Shaft Length: 21.5mm
Input Shaft Diameter: Φ5mm
Input Shaft Length: 9.5mm
Resources
Gearbox Datasheet:TQMG17-G5.pdf
Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!
Physical Specification | |
---|---|
Frame Size(mm) | 42 x 42 |
Weight(g) | 310 |
Gearbox Length(mm) | 40 |
Input Shaft Diameter(mm) | 5 |
Input Shaft Length(mm) | 9.5 |
Output Shaft Diameter(mm) | 8 |
Output Shaft Length(mm) | 21.5 |
Suit for Motor | Nema 17 |
Gearbox Type | PLM Series |
Gear Ratio | 5 |
Backlash at No-load | <=30arcmin |
Product Type | PLM Series Planetary Gearbox |
Output Shaft Type | Keyway Shaft |
