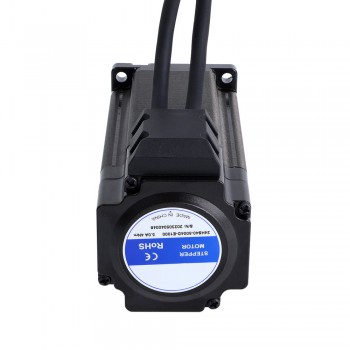

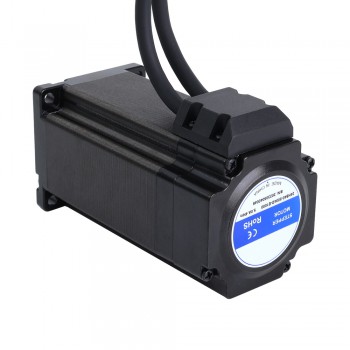

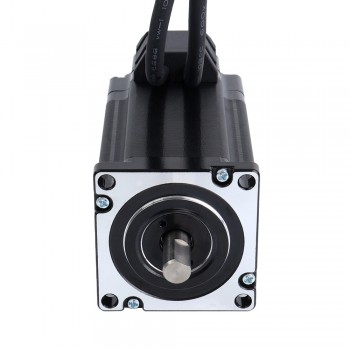

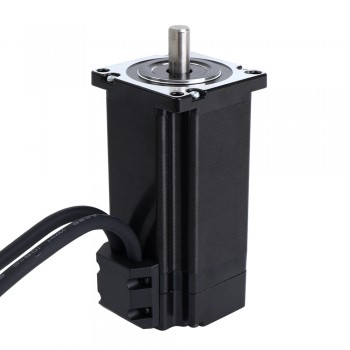

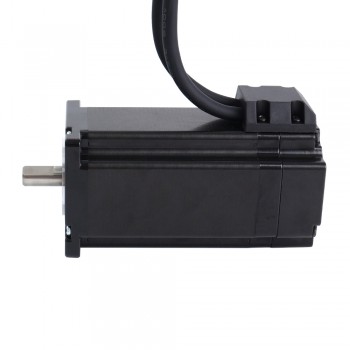

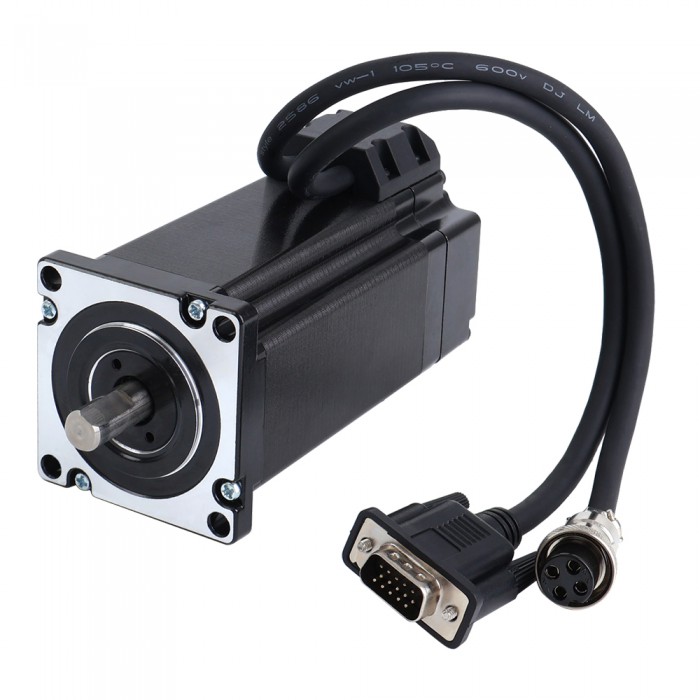

S Series Nema 24 Closed Loop Stepper Motor 1.8 Deg 4.0 Nm/566.45oz.in 5.0A 2 Phase with Optical Incremental Encoder

S Series Nema 24 Closed Loop Stepper Motor 1.8 Deg 4.0 Nm/566.45oz.in 5.0A 2 Phase with Optical Incremental Encoder
NO.:24HS40-5004D-E1000
Review: Post a review
Special Offer in June 2024:
  • 6% OFF on Total Order Amount!
  • Enjoy Discount at Checkout!
  • Valid Till June 20th, 2024
  • Note:No coupon code needed, please place order directly!
Our Price:$43.99
Quantity:- +

Bulk Price:
Qty.Range(unit) Price(unit) Discount
5 $41.79 5%
10 $40.91 7%
50 $39.59 10%
100 $38.27 13%
Add To Cart

S Series Nema 24 Closed Loop Stepper Motor 1.8 Deg 4.0 Nm/566.45oz.in 5.0A 2 Phase with Optical Incremental Encoder



Electrical Specification

Manufacturer Part Number: 24HS40-5004D-E1000

Number of phase: 2

Step Angle: 1.8 deg

Holding Torque: 4.0 Nm(566.45oz.in)

Rated Current/phase: 5.0 A

Phase Resistance: 0.6 ohms± 10%

Inductance: 2.6 mH ± 20%(1KHz)



Physical Specification

Frame Size: 60 x 60 mm

Body Length: 125 mm

Shaft Diameter: Φ10 mm

Shaft Length: 21 mm

Keyway Shaft Length: 15 mm

Lead Length: 300 mm

Weight: 1.62 kg



Encoder Specification

Output Circuit Type: Differential type

Encoder Type: Optical Incremental

Encoder Resolution: 1000PPR(4000CPR)

Output Signal Channels: 2 channels

Supply Voltage Min: 4V

Supply Voltage Max: 5V

Output Current: 100mA

Output High Voltage: 5V

Output Low Voltage: 4.5V

Output Frequency Max: 60kHZ



Connection



PIN 1 2 3 4
Motor A+ A- B+ B-



PIN 2 3 1 13 11 12
Encoder VCC EGND EA+ EA- EB+ EB-
