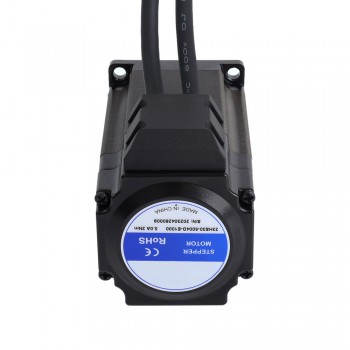

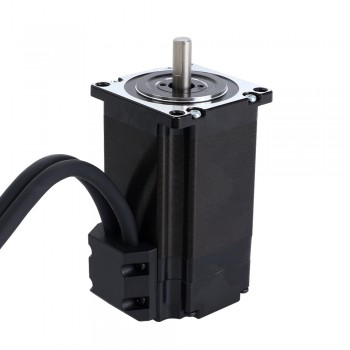

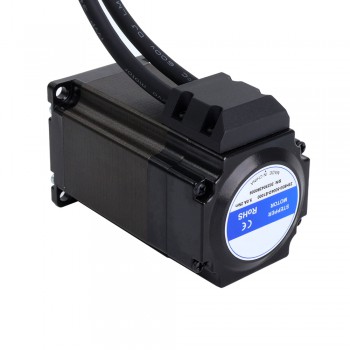

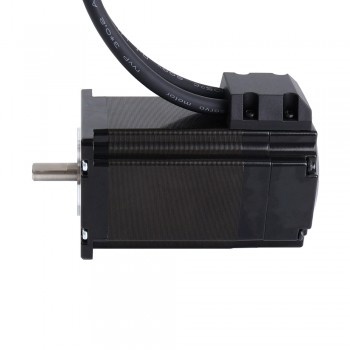

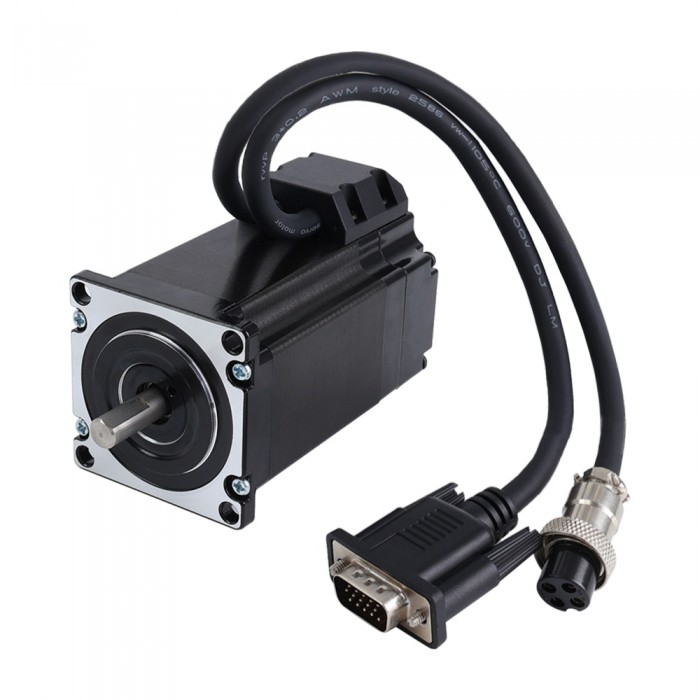

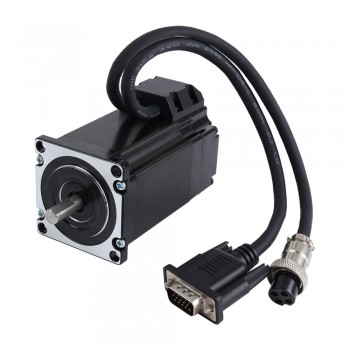

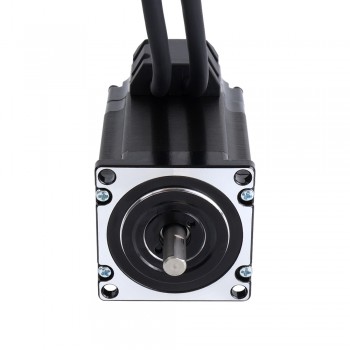

S Series Nema 23 Closed Loop Stepper Motor 1.8 Deg 2.0 Nm/283.22oz.in 5.0A 2 Phase with Optical Incremental Encoder

S Series Nema 23 Closed Loop Stepper Motor 1.8 Deg 2.0 Nm/283.22oz.in 5.0A 2 Phase with Optical Incremental Encoder
NO.:23HS30-5004D-E1000
Review: Post a review
Special Offer in October 2024:
  • $10 Off Over $150
  • $20 Off Over $300
  • $35 Off Over $500
  • $55 Off Over $800
  • $70 Off Over $1000
  • $100 Off Over $1500
  • Enjoy Discount at Checkout!
  • Valid Till October 15th, 2024
  • Note:No coupon code needed, please place order directly!
Our Price:$27.59
Quantity:- +

Bulk Price:
Qty.Range(unit) Price(unit) Discount
5 $26.21 5%
10 $25.66 7%
50 $24.83 10%
100 $24.00 13%
Add To Cart

S Series Nema 23 Closed Loop Stepper Motor 1.8 Deg 2.0 Nm/283.22oz.in 5.0A 2 Phase with Optical Incremental Encoder



Electrical Specification

Manufacturer Part Number: 23HS30-5004D-E1000

Number of phase: 2

Step Angle: 1.8 deg

Holding Torque: 2.0 Nm(283.22oz.in)

Rated Current/phase: 5.0 A

Phase Resistance: 0.42 ohms± 10%

Inductance: 1.7 mH ± 20%(1KHz)



Physical Specification

Frame Size: 57 x 57 mm

Body Length: 101 mm

Shaft Diameter: Φ8 mm

Shaft Length: 21 mm

D-CUT Shaft Length: 15 mm

Lead Length: 300 mm

Weight: 1.22 kg



Encoder Specification

Output Circuit Type: Differential type

Encoder Type: Optical Incremental

Encoder Resolution: 1000PPR(4000CPR)

Output Signal Channels: 2 channels

Supply Voltage Min: 4V

Supply Voltage Max: 5V

Output Current: 100mA

Output High Voltage: 5V

Output Low Voltage: 4.5V

Output Frequency Max: 60kHZ



Connection



PIN 1 2 3 4
Motor A+ A- B+ B-



PIN 2 3 1 13 11 12
Encoder VCC EGND EA+ EA- EB+ EB-



Resources

Full Datasheet:23HS30-5004D-E1000.pdf

Torque Curve:23HS30-5004D-E1000_Torque_Curve.pdf

23HS30-5004D-E1000.STEP



Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!

Prev: S Series Nema 34 Closed Loop Stepper Motor 1.8 Deg 12.0 Nm(1699.34oz.in) 6.0A 2 Phase with Encoder 1000PPR(4000CPR)
Next: E Series Nema 17 Stepper Motor Bipolar 0.9 Deg 30Ncm(42.48oz.in) 1.5A 42x42x38mm D-Cut Shaft 4 Wires
Electrical Specification
Holding Torque (Ncm) 200
Holding Torque (oz.in) 283.22
Inductance(mH) 1.7
Phase Resistance(ohm) 0.42
Rated Current (A) 5.0
Encoder Type Optical Incremental
Output Circuit Type Differential type
Encoder Resolution 1000PPR
Output Signal Channels 2
Physical Specification
Body Length(mm) 101
Frame Size(mm) Nema 23 (57 x 57)
Shaft Diameter(mm) 8
Shaft Length(mm) 21
Product Series S Series
IP Rating 40
