Nema 11 External Linear Stepper Motor Actuator Bipolar 1.8 Deg 0.67A 12.0Ncm(17oz.in) 6.2V Lead Screw 100mm

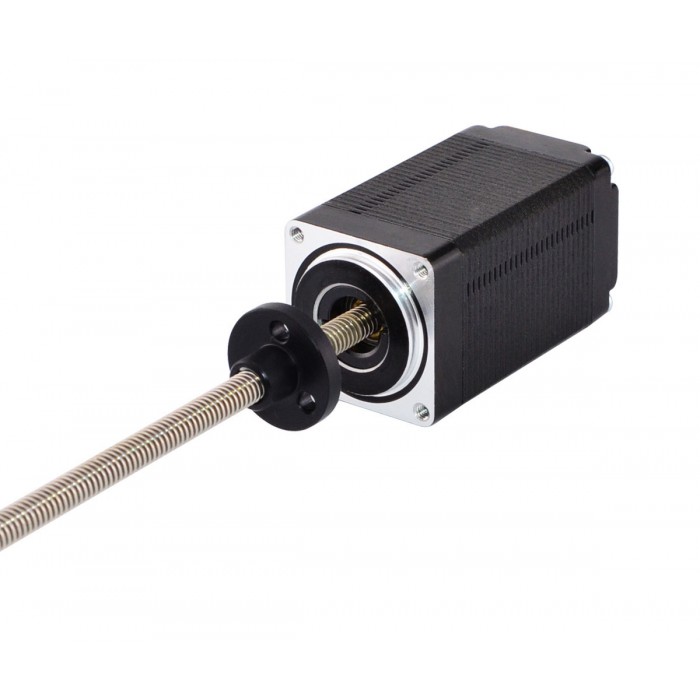

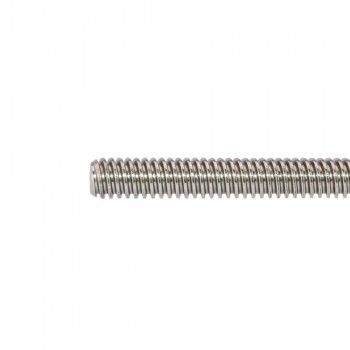

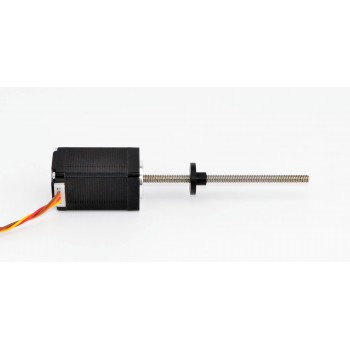

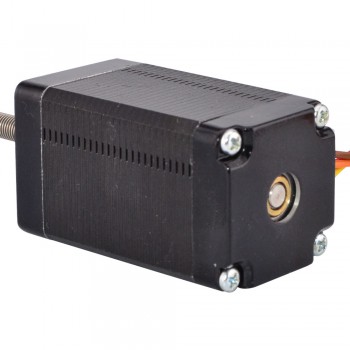

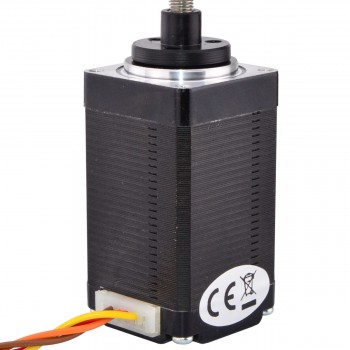

This model is economy linear stepper motor which named Nema 11 external linear actuator, the motor part is 51mm 1.8 degree 0.67A Nema 11 stepper motor. It was integrated with 100mm Tr4.76x0.635 threaded rod and a POM screw nut move along the threaded rod.
Electrical Specification
Manufacturer Part Number: 11LS20-0674E-100A
Motor Type: External Linear Stepper
Step Angle: 1.8 deg
Holding Torque: 12.0Ncm(17oz.in)
Rated Current/phase: 0.67A
Phase Resistance: 9.2ohms
Voltage: 6.2V
Inductance: 5.7mH ± 20%(1KHz)
Physical Specification
Frame Size: 28 x 28mm
Body Length: 51mm
Lead Screw Length: 100mm(3.937")
Lead Screw Diameter: Φ4.76mm(0.1874")
Lead /Step: 0.003175mm(0.000125" )
Lead/Revolution: 0.635mm(0.025")
Number of Leads: 4
Lead Length: 300mm
Weight : 220g
Connection
A+
|
A-
|
B+
|
B-
|
Red
|
Brown
|
Yellow
|
Orange
|
Resources
Full Datasheet: 11LS20-0674E-100A.pdf
Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!
Electrical Specification | |
---|---|
Bipolar/Unipolar | Bipolar |
Holding Torque (Ncm) | 12 |
Holding Torque (oz.in) | 17 |
Inductance(mH) | 5.7 |
Motor Type | External |
Phase Resistance(ohm) | 9.2 |
Rated Current (A) | 0.67 |
Step Angle(°) | 1.8 |
Physical Specification | |
Body Length(mm) | 51 |
Lead Screw Diameter(mm) | 4.76 |
Lead Screw Length(mm) | 100 |
Lead Revolution(mm) | 0.635 |
Linear Travel / Step(mm) | 0.003175 |
No. of Lead | 4 |
Lead Length(mm) | 304 |
Frame Size(mm) | Nema 11 (28 x 28) |
