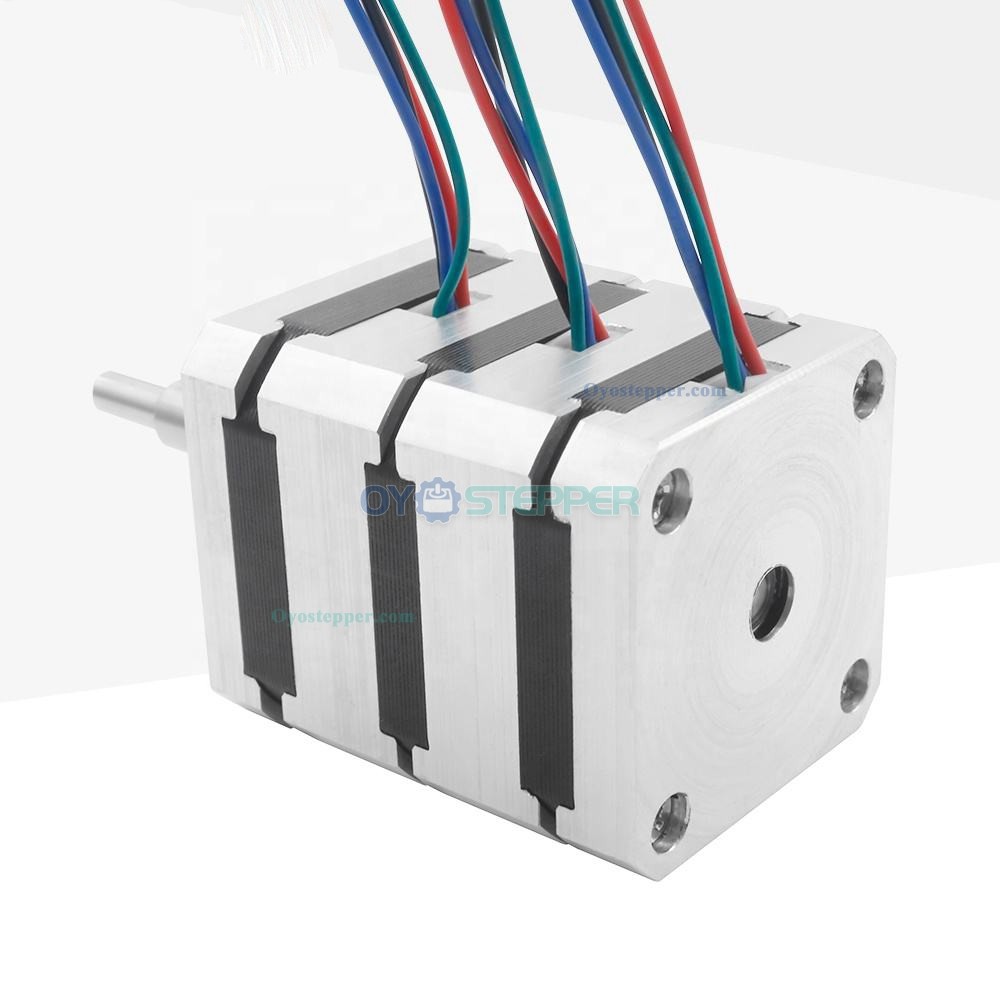

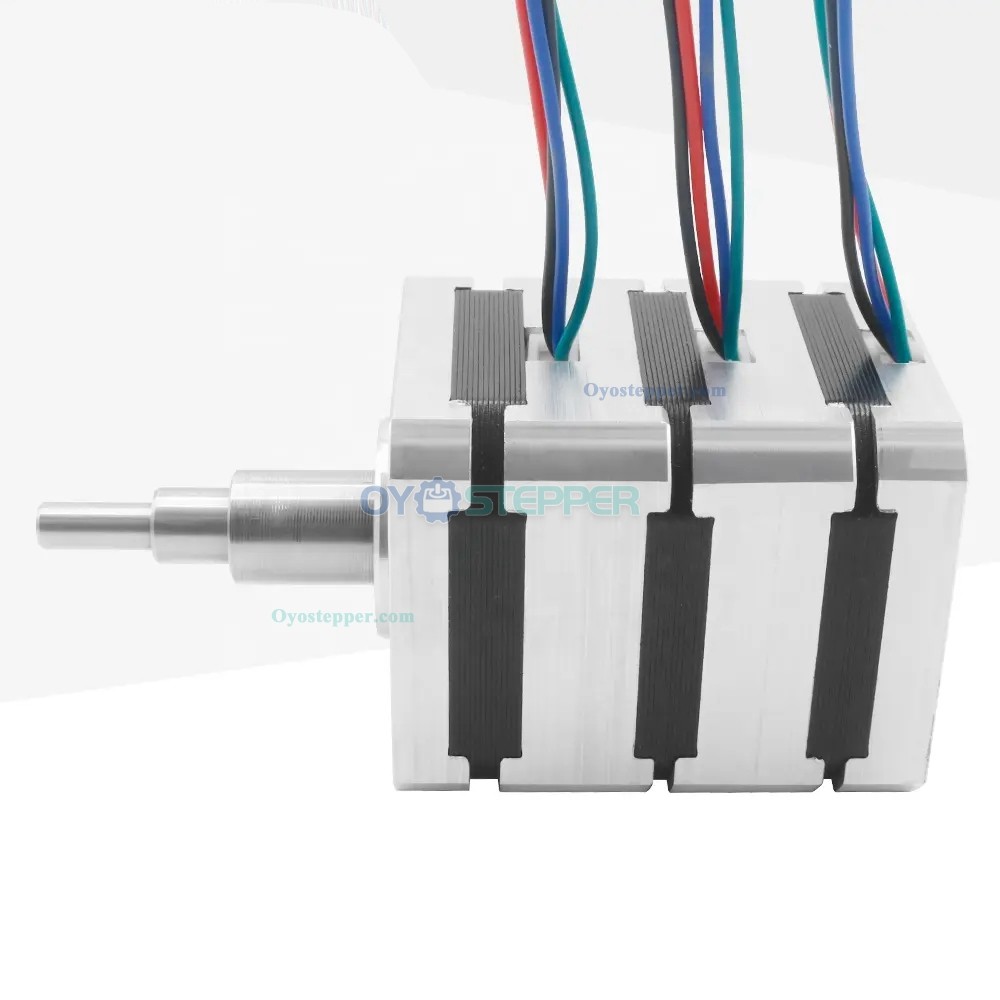

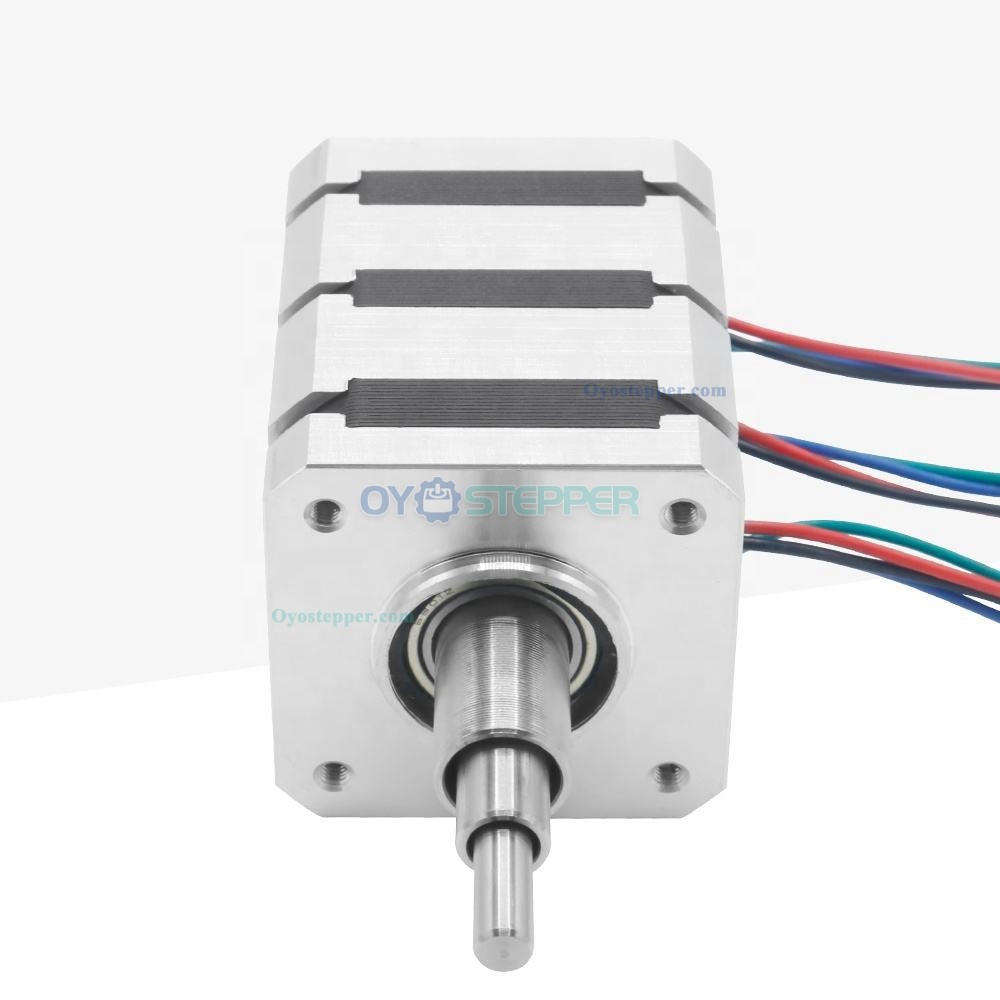

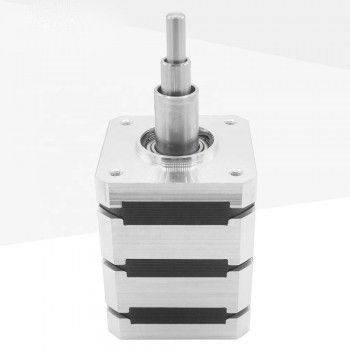

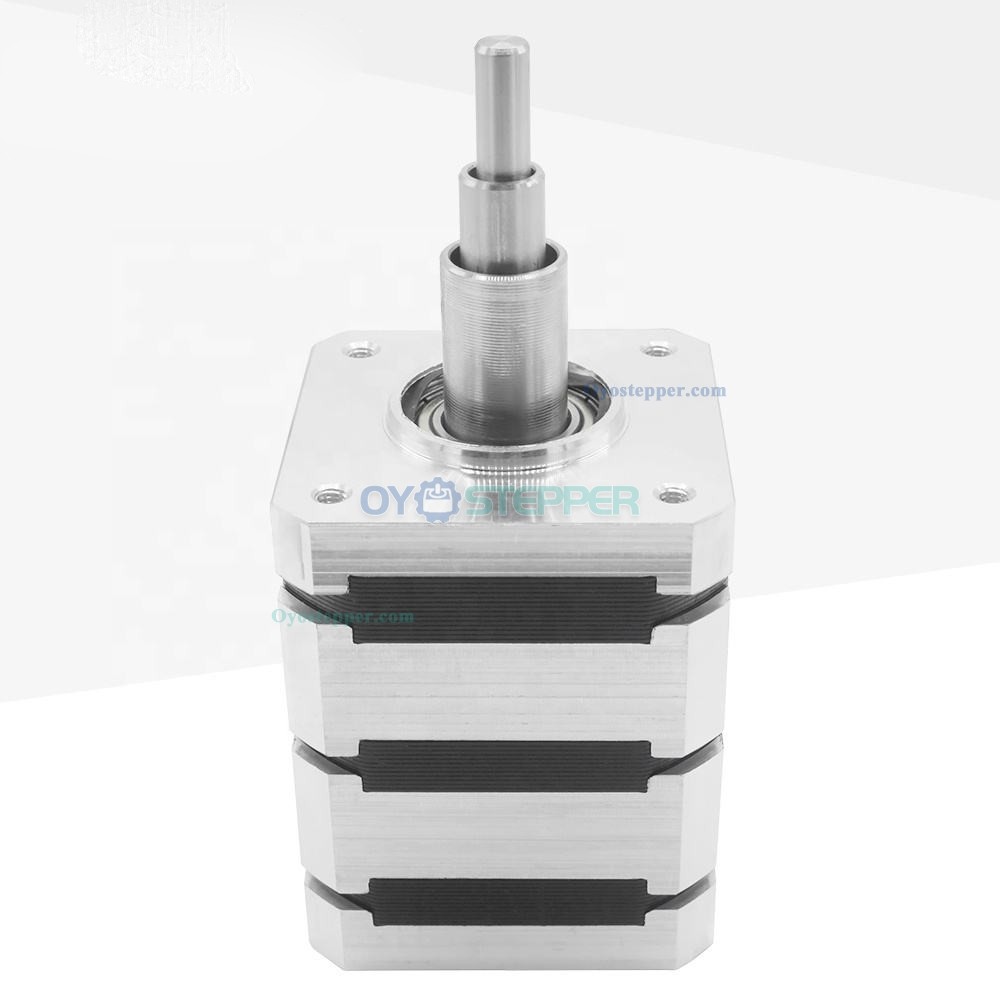

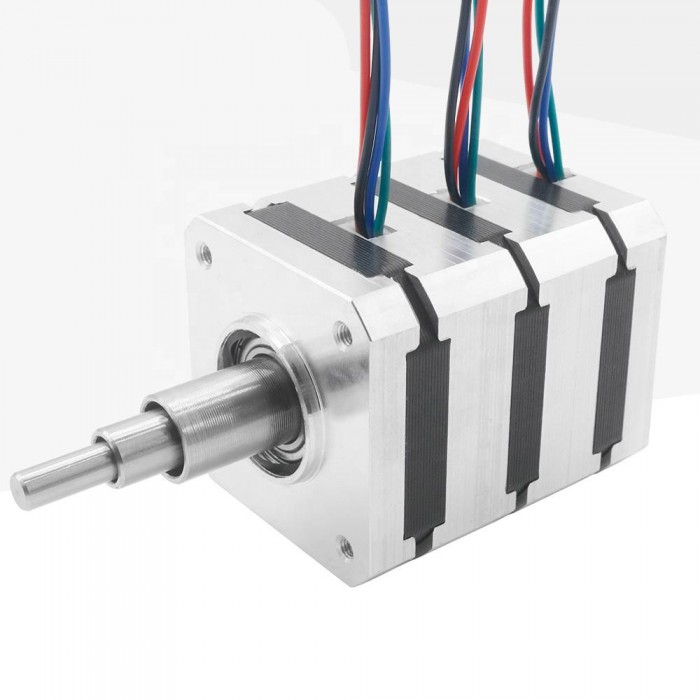

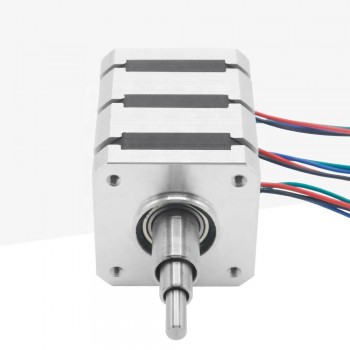

Multi-layer Nema 17 Stepper Motor 1.8° 0.4A 12V 200m N.m 0.4A 2 Phase Multilayer DC Hybrid Stepper Motor
Nema 17 3 axis Stepper Motor 1.8 deg 0.4A TQE42S-0 12VDC 200mN.m 4 Wires
Electrical Specification:
Manufacturer Part Number: TQE42S-0
Motor Type: Bipolar
Number of Phase:2
Step Angle: 1.8 deg
Insulation Resistance:100MΩmin. (500V DC)
Holding Torque: 200m N.m
Detent torque:20m N.m
Rated Current/phase: 0.4A
Rated Voltage: 12VDC
Resistance per phase: 3.5 Ω±10%
Inductance per Phase:0.90 m H±20%;
Physical Specification
Frame Size: 42X42mm
Body Length: 57.5 mm
Shaft Length: 12/24/40mm
Number of Leads: 4
Weight: 30g;
.jpg)
.jpg)
.jpg)
.jpg)

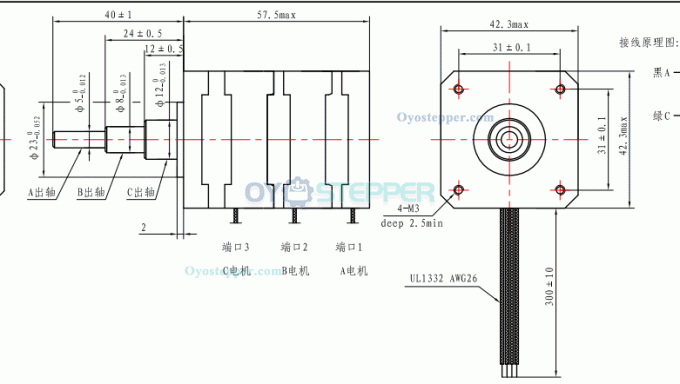

Dimensions:
Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!
| Physical Specification | |
|---|---|
| Frame Size(mm) | 42x42 |
| Body Length(mm) | 57.5 |
| No. of Lead | 4 |
| Single Shaft/Dual Shaft | Single Shaft |
| Weight(g) | 30 |
| Electrical Specification | |
| Bipolar/Unipolar | Bipolar |
| Rated Current (A) | 0.4 |
| Step Angle(°) | 1.8 |
| Motor Type | Multilayer stepper motor |
| No. of Phase | 2 |
| Detent Torque(mN.m) | 20 |
| Holding Torque(mN.m) | 200 |
| Rated Voltage(V) | 12 |
