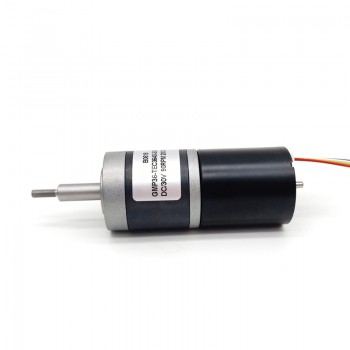

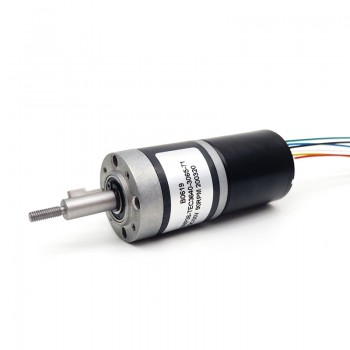

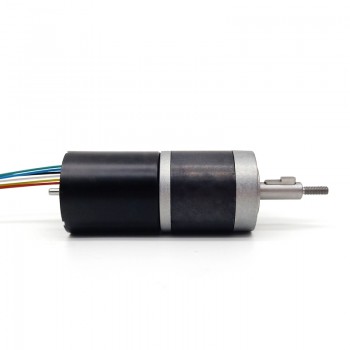

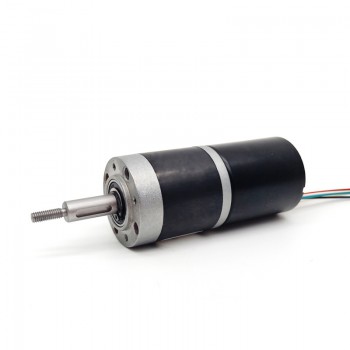

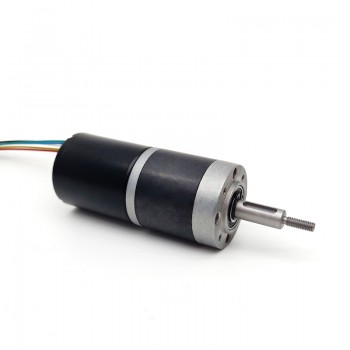

2Pcs Φ36mm 12V/24V Brushless DC Gearmotor GMP36-TEC3650 30kg.cm 18w With Planetary Gearbox

2Pcs Φ36mm 12V/24V Brushless DC Gearmotor GMP36-TEC3650 30kg.cm 18w With Planetary Gearbox
NO.:GMP36-TEC3650
Post a review
Our Price:$79.98

Quantity:- +

Bulk Price:
Qty.Range(unit) Price(unit) Discount
5 $75.98 5%
10 $74.38 7%
50 $71.98 10%
100 $67.98 15%
Add To Cart



Features:
1.Small size dc gear motor with low speed and big torque
2.36mm gear motor provide 3.0Nm torque max and more reliable
3.Suitable to small diameter, low noise and big torque application
4.Reduction Ratio: 4/19/51/100/139/189/264/369/516/720;
1 stages: 4:1
2 stages: 14:1 / 19:1 / 27:1
3 stages: 51:1 / 71:1 / 100:1 / 139:1
4 stages: 189:1 / 264:1 / 369:1 / 516:1 / 720:1
Application:
Car, Electric Bicycle, Home Appliance.

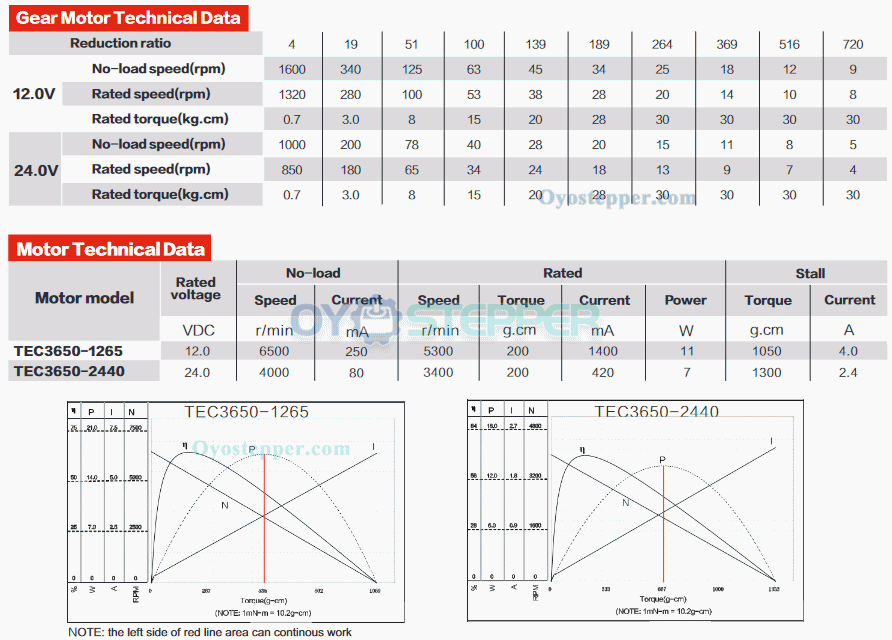

Electrical Specification:
Part Number:GMP36-TEC3650
Rated Voltage:12/24VDC
Rated Torque:30.0kg.cm
Max momentary tolerance torque: 60.0kg.cm
Rated current:1400mA(12V)/420mA(24V)
No Load Speed W/O Gearbox: 6500RPM(12V)/ 4000RPM(24V)
Rated Speed W/O Gearbox: 5300RPM(12V) / 3400RPM (24V)
No Load Speed W Gearbox: 5-1600 RPM
Rated Speed W/ Gearbox:4-1320 RPM
Rated Power:11W(12V) / 7W(24V)
Gear type:Plantary Gearbox
Motor type:Brushless
Axial Play:0.05-0.5mm
Direction of rotation:CW CCW
Shaft type:D Shaft
Efficiency: IE 2
Noise:30cm.40-50DB

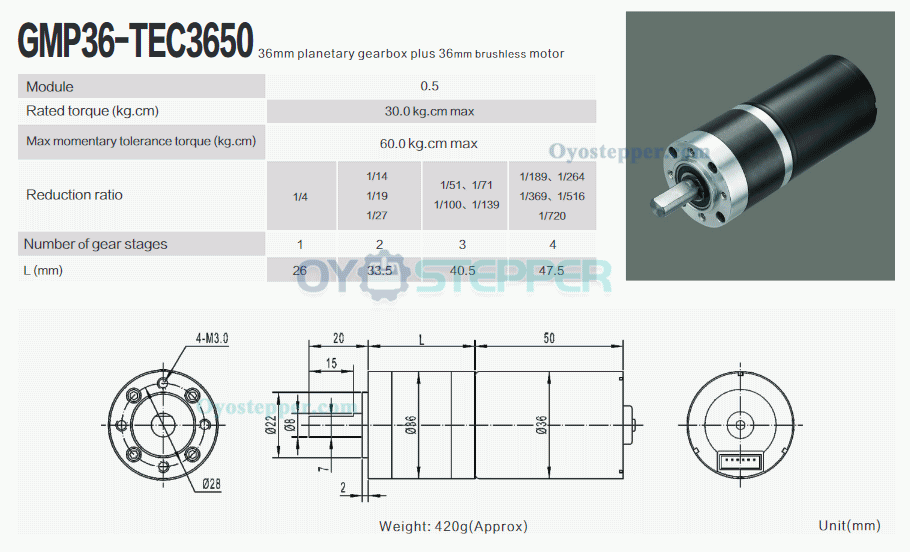

Physical Specification:
Motor Size:Φ36*50mm
Motor Diameter:36mm
Gearbox Diameter:36mm
Gearbox Length:26mm (1 stages) / 33.5mm (2 stages) / 40.5mm (3 stages) / 47.5mm (4 stages)
Length:50mm+Planetary gearbox
Shaft Length:18mm
Shaft Diameter:8mm
D-cut Length: 15mm
D-cut Diameter:7mm
Weight:420g;

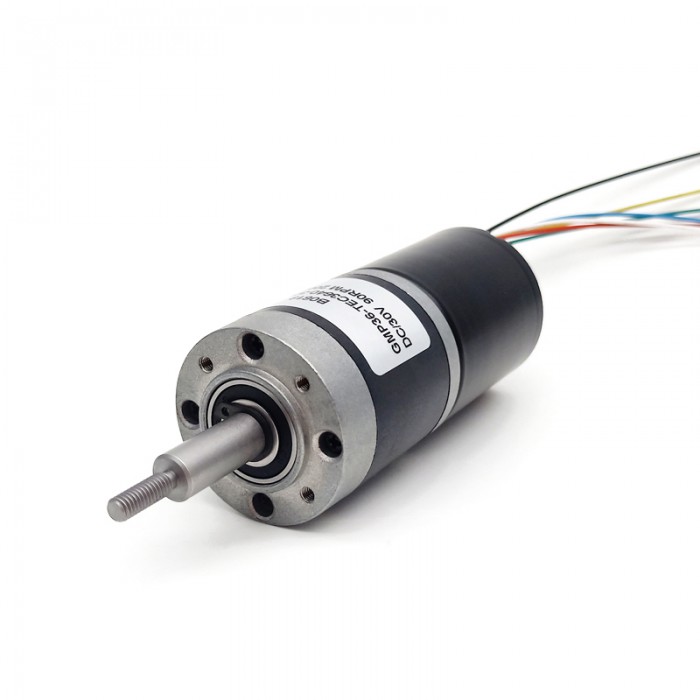

2Pcs Φ36mm 12V/24V Brushless DC Gearmotor GMP36-TEC3650 30kg.cm 18w With Planetary Gearbox



2Pcs Φ36mm 12V/24V Brushless DC Gearmotor GMP36-TEC3650 30kg.cm 18w With Planetary Gearbox

Resources

GMP36-TEC3650.pdf

Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!

Prev: 2Pcs Φ28mm 12V/24V Brushless DC Gearmotor GMP28-TEC2838 20kg.cm 6.6-11.5w With Planetary Gearbox
Next: 2Pcs Φ42mm 12V/24V Brushless DC Gearmotor GMP42-TEC4260 60kg.cm 21w With Planetary Gearbox
Physical Specification
Body Length(mm) 50+gearbox
Shaft Diameter(mm) 8
Frame Size(mm) Φ36
Gearbox Length(mm) 26 / 33.5 / 40.5 / 47.5
Gear Ratio 4:1 / 19:1 / 10:1 / 100:1 / 139:1 / 189:1 / 264:1 / 369:1 / 516:1 / 720:1
Shaft Length(mm) 18
Weight(g) 420
Shaft Type D-Cut
Single Shaft/Dual Shaft Single Shaft
Gearbox Type Planetary Gearbox
Electrical Specification
Rated Voltage(V) 12 / 24
Rated Torque(kg.cm) 30
Rated Speed(rpm) 4-1320
Rated Current (A) 1.4 / 0.42
Rated Power(W) 7 / 11
